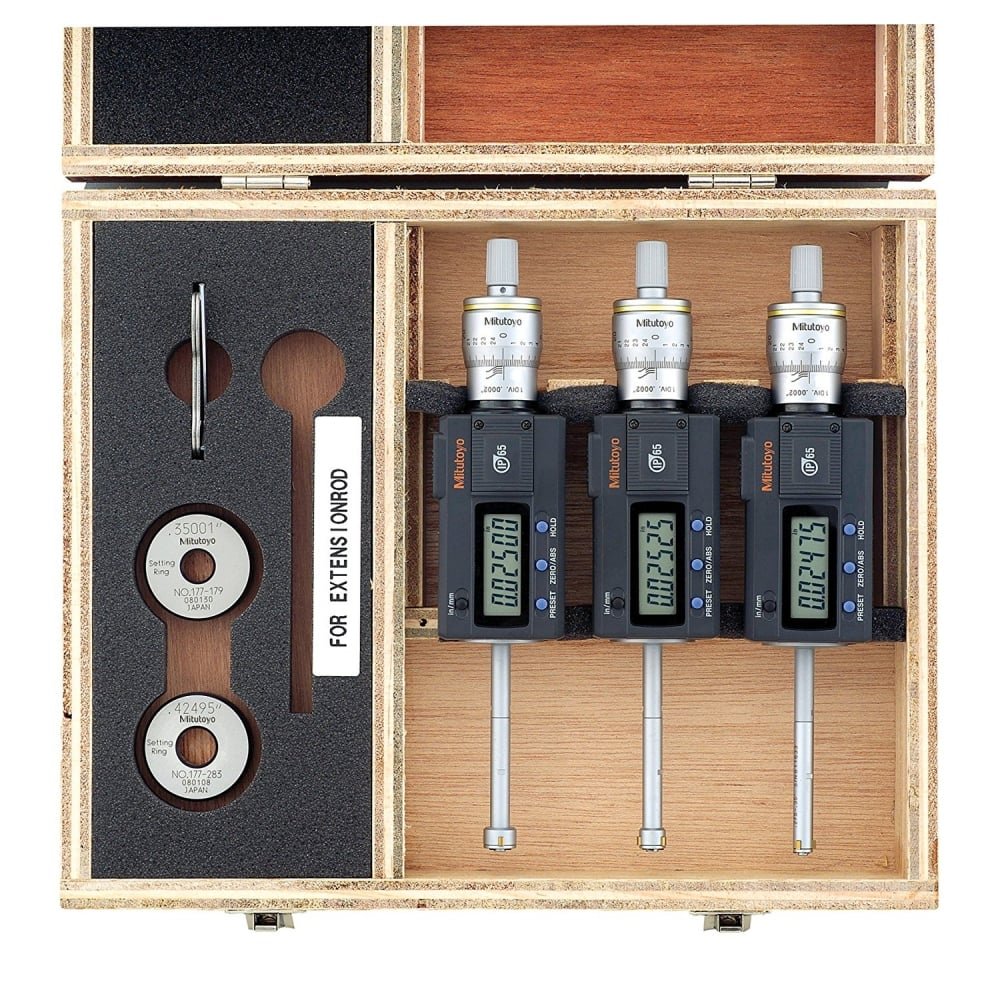

Mitutoyo 468-986 | Holtest Three-Point Bore Micrometer Set | .275-.5 in (6.985-12.7 mm)
The Mitutoyo 468-986 is a Digimatic Holtest three-point bore micrometer set with non-interchangeable heads, covering .275-.5 in (6.985-12.7 mm). Its measuring pin design lets diameters be read right down to the bottom of a blind hole.
- Range .275-.5 in (6.985-12.7 mm)
- Set of digital units with three-point heads
- Titanium-coated contact faces; digimatic data output
- Ratchet stop for repeatable force; measures to the bottom of blind holes
- Specifications
- Features
- Downloads
| Part Number | 468-986 |
| Brand | Mitutoyo |
| Range | .275-.5 in (6.985-12.7 mm) |
| Type | Three-point, non-interchangeable heads |
| Units | Inch/Metric |
| Data Output | Digimatic |
| Contact Faces | Titanium-coated |
| Force Control | Ratchet stop |
- Complete unit set.
- Titanium-coated measuring pins give you excellent durability and impact resistance.
- They also have excellent resistance against water and dust (IP65 protection level), allowing you to use this product in machining situations that include splashing coolant fluid.
- Large LCD display with character height of 7.5 mm enables you to read measurements easily.
- With setting rings but without extensions.
