Mitutoyo 178-573-01E | Surftest SJ-310 Portable Surface Roughness Tester | 0.75 mN, 2 µm Stylus

Name: Mitutoyo 178-573-01E | Surftest SJ-310 Portable Surface Roughness Tester | 0.75 mN, 2 µm Stylus
Brand: Mitutoyo
SKU: 178-573-01E
Availability: OutOfStock

Part Number : 178-573-01E

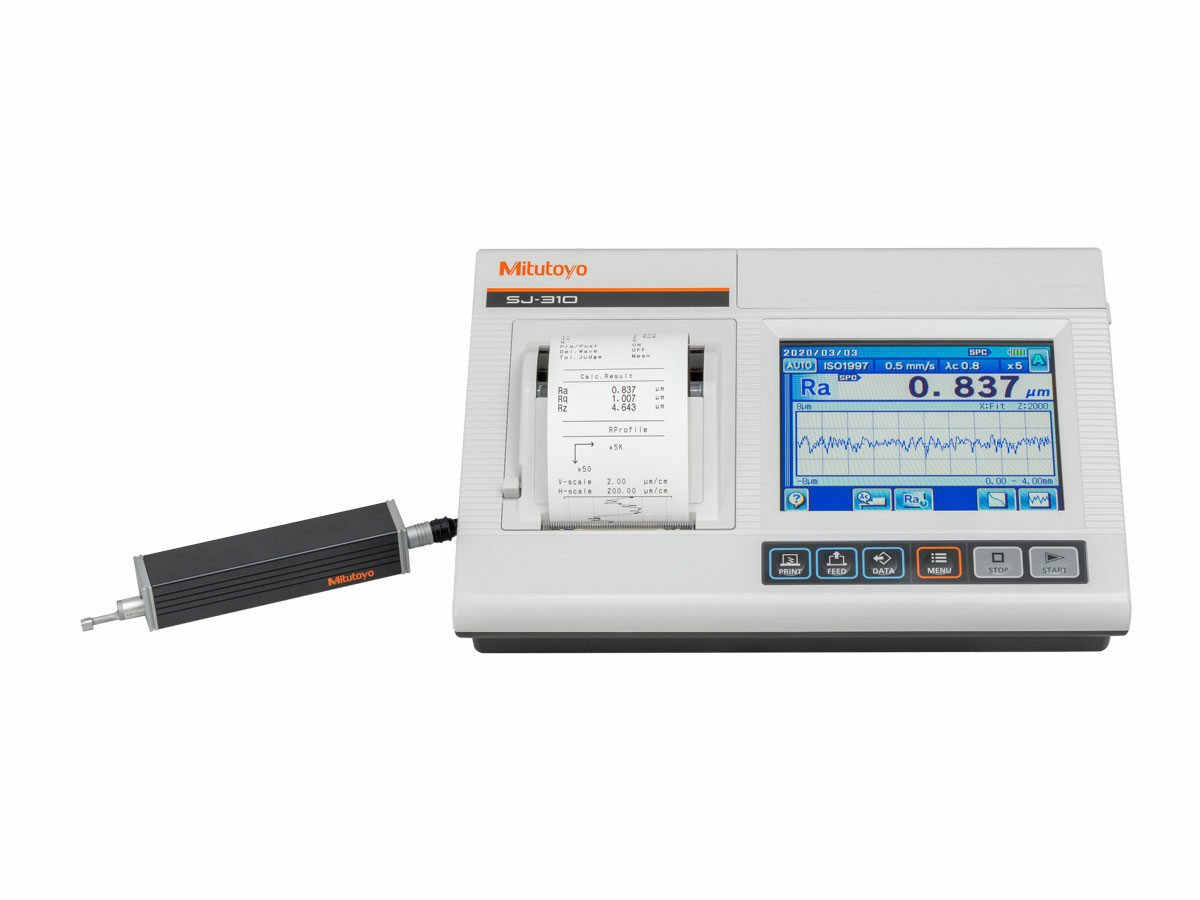

The Mitutoyo 178-573-01E Surftest SJ-310 is a portable, skid-type roughness tester with a 0.75 mN detector and 2 µm diamond tip, switchable between inch and metric units. It has a built-in printer and a 5.7 in colour touch screen.

Measuring force 0.75 mN; 2 µm diamond stylus tip
Statistical analysis with coloured tolerance judgement
Filters: 2RC-75%, 2RC-75% phase corrected, Gauss 50%
Profiles: primary (P), roughness (R), DIN 4776 and MOTIF
Two evaluation conditions within one measurement

Availability: in stock

Specifications
Features
Downloads

Part Number	178-573-01E
Brand	Mitutoyo
Model	Surftest SJ-310
Measuring Force	0.75 mN
Stylus	Diamond, 2 µm tip
Units	Inch/Metric
Skid Radius	40 mm
Digital Filters	2RC-75%, 2RC-75% (phase corrected), Gauss -50%
Profiles	Primary Profile (P), Roughness Profile (R), DIN 4776, MOTIF
Sampling Length	0.08 mm, 0.25 mm, 0.8 mm, 2.5 mm, 8 mm or input
Standards	DIN, ISO, ANSI, JIS
Detection	Induction method
Cable Length	1 m

This is a portable measuring instrument that allows you to easily and accurately measure surface roughness.

The Surftest SJ-310 offers you the following benefits:
Skid system with touch-screen functionality and built-in printer.
It works independently of mains power, allowing you to make on-site measurements.
Easy and intuitive menu navigation.
The large 14.5 cm [5.7“] colour LCD gives you high visibility.
It performs roughness analyses conform to various international standards (EN ISO, VDA, ANSI, JIS) and customized settings.
You can store up to 10 different measuring conditions inside the SJ-310, and up to 500 with an optional SD card.
Statistical analysis and coloured tolerance judgement.
2 different evaluation conditions within 1 measurement adjustable.
You can separately password protect many functions.
It comes with support for 16 languages.
