Norbar PTM-52 with Right Angle Gearbox, 800 N·m, Bi-Directional, Square Size: 3/4"

Name: Norbar PTM-52 with Right Angle Gearbox, 800 N·m, Bi-Directional, Square Size: 3/4"
Brand: Norbar
SKU: 18101.B06.RA
Availability: OutOfStock

Part Number : 18101.B06.RA

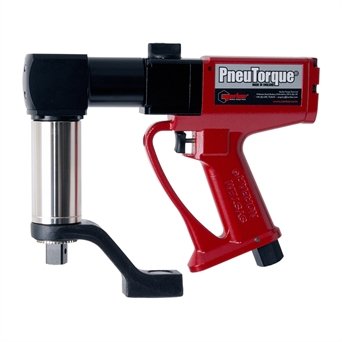

The PTM-52 has been designed to be one of the lightest and fastest tools of its kind available. The tool is finely balanced, light weight, and provides great access to bolts because to the extremely tiny 52mm diameter gearbox.

The Right Angle Gearbox allows Norbar's electronic torque instruments to be used in a variety of situations where they are now unavailable owing to space constraints.

Availability: in stock

Free Kuwait shipping available

Specifications
Features

Accuracy	+/-5%
Air Consumption	19 litres/sec (40 CFM)
Brand	Norbar
Free Speed	224 rpm
Height	339mm
Length	403mm
Max Air Pressure	6.3 bar
Model Number	PTM-52
Product Number	18101.B06.RA
Range Imperial	118 - 590 lbf·ft
Range Metric	160 - 800 N·m
Square Size	3/4"
Weight	7.11kg

Light weight - single direction stall tool weighs just 3.8 Kg.
Quiet - less than 85 dB(A) when under load.
Non impacting - low vibration levels make these tools comfortable and safe to use.
Square drive is quickly and easily replaceable.
'Soft Start' trigger controls / aids socket location and allows gradual and safe reaction location.
For safety, gearbox can rotate independently from the handle so that reaction forces are not transmitted back to the operator.
Fast - 800 N·m version has a free speed of 175 rpm for rapid bolt run-down.
1" square drive available, Part No. 18545.
Allows more comfortable operation of the PTM on vertically bolting applications at chest height and above as the pistol grip is presented correctly to the operator
The tool handle can rotate 360° in relation to the Right Angle Gearbox allowing the most comfortable and safest position to be found
