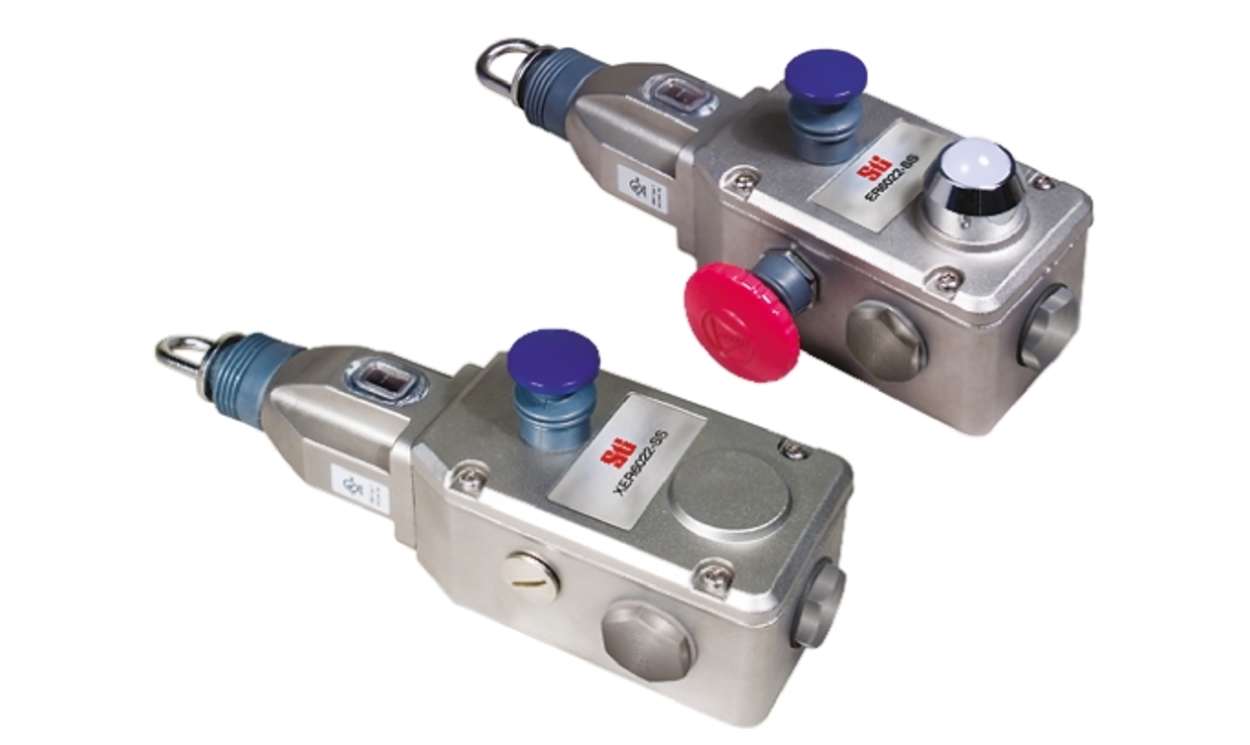

OMRON 44506-5810 ER6022-022MSS | ER Rope Pull Switch | 100 m, 2NO/2NC, Straight

Name: OMRON 44506-5810 ER6022-022MSS | ER Rope Pull Switch | 100 m, 2NO/2NC, Straight
Brand: OMRON
SKU: 44506-5810 ER6022-022MSS
Availability: OutOfStock

Part Number : 44506-5810 ER6022-022MSS

Covering a 100 m cable length, the OMRON 44506-5810 ER6022-022MSS is an ER rope pull switch with 2NO/2NC contacts and straight mounting.

Contacts: 2NO/2NC
Cable length: 100 m
Mounting orientation: straight
Die cast aluminium housing, IP67
Rated up to 240 V AC / 24 V DC, 3 A
Dimensions: 239 x 96 x 86 mm; conduit entry M20
Operating temperature: -25 to +80 °C

Availability: in stock

Detailed Description
Specifications
Downloads

ER Series Rope Pull Emergency Stop Switch

The ER series of safety rope pull switches from Omron are designed to be tough and durable for even the most demanding applications. With long coverage spans, rope pull switches eliminate the need for numerous E-stop buttons reducing installation time and costs. The ER series rope pull switch is available as standard, with an E-stop button or with an indicator beacon.

Long rope spans up to 80m means fewer number of switches required per application
Tension indicator makes the system easy to set up and to maintain the proper rope tension
IP67 (NEMA 6) enclosure enables the switch to withstand water wash down cleaning
Available in die-cast aluminium or stainless steel housing with a stainless steel eye nut
A blue reset button is provided to easily return the unit back to its machine run position after actuation
Long life switch designed for a minimum of one million actuations
The snap-acting switch contacts protect against nuisance tripping due to vibration
Models with the E-stop button have 2 mounting positions and may be installed or repositioned in the field
Models with the optional dual indicator beacon (24 Vdc) can be wired to flash red to indicate a tripped switch or glow a constant green to indicate a properly reset switch

Brand	Omron
Normal State Configuration	2NO/2NC
Cable Length	100m
Mounting Orientation	Straight
IP Rating	IP67
Series	ER
Length	239mm
Width	96mm
Depth	86mm
Housing Material	Die Cast Aluminium
Dimensions	239 x 96 x 86mm
Maximum Operating Temperature	+80°C
Minimum Operating Temperature	-25°C
Conduit Entry	M20
Maximum AC Voltage	240V
Maximum DC Voltage	24V
Maximum Current	3A

OMRON 44506-5810 ER6022-022MSS | ER Rope Pull Switch | 100 m, 2NO/2NC, Straight

DOWNLOAD CATALOG

44506-5810 ER6022-022MSS Omron Machine Safety 0900766b814c686b

44506-5810 ER6022-022MSS Datasheet 0900766b8157d9ca
