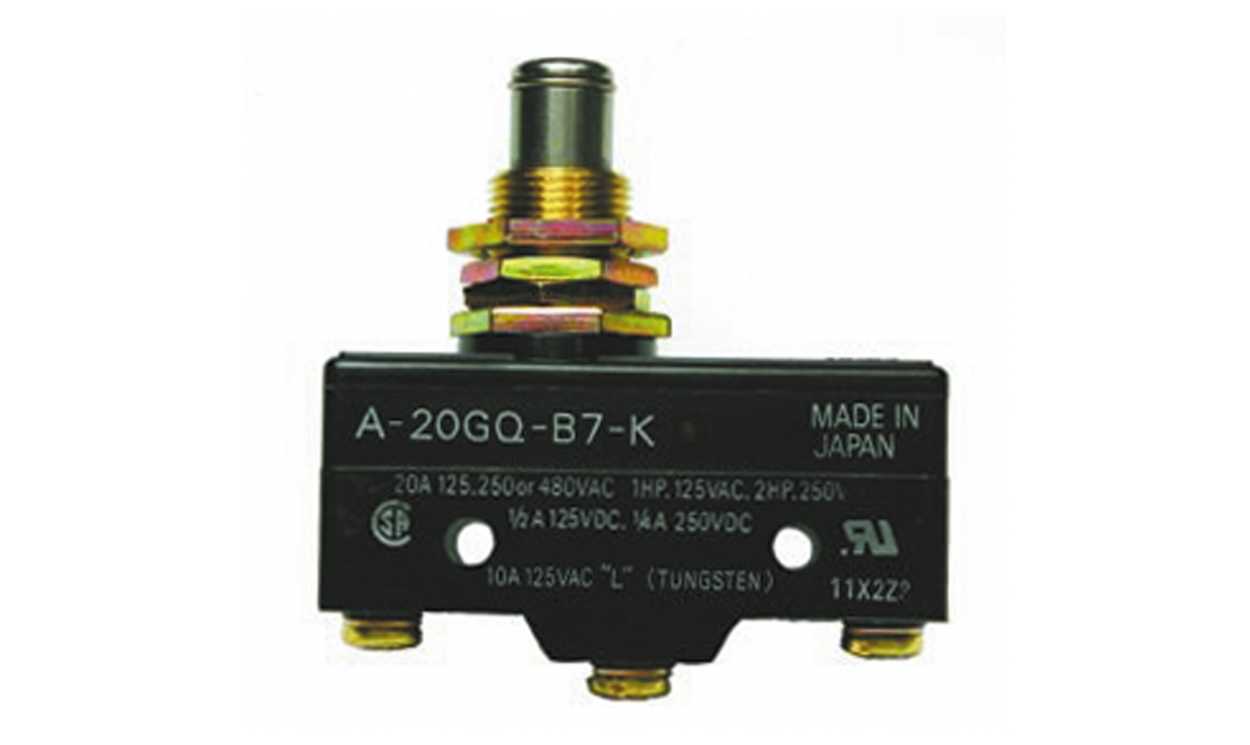

Omron A-20GQ-B7-K, Plunger Limit Switch, NO/NC, IP00, SPDT, 500V ac Max, 20A Max

Name: Omron A-20GQ-B7-K, Plunger Limit Switch, NO/NC, IP00, SPDT, 500V ac Max, 20A Max
Brand: OMRON
SKU: A-20GQ-B7-K
Availability: OutOfStock

Part Number : A-20GQ-B7-K

Availability: Sold out

Detailed Description
Specifications
Downloads

Omron Limit Switch, SPDT Configuration, Action Type Snap Action - A-20GQ-B7-K

This limit switch is designed for versatile applications in automation and industrial controls. With compact dimensions of 49.2mm in length, 25.5mm in depth, and 17.45mm in width, the switch features a plunger actuator for reliable actuation. It excels in performance with a high-capacity rating of 20A and ensures functionality in harsh environments, operating effectively from -25 °C to +85 °C.

Features & Benefits

• Capable of handling 20A loads to manage high-demand applications
• Snap action technology guarantees quick and precise response
• Mechanical lifespan of 1 million operations for long-term reliability
• SPDT configuration offers flexibility in circuit design
• Screw terminal connection simplifies installation and maintenance

Applications

• Utilised in manufacturing equipment for automated processes
• Ideal for safety and limit detection systems in industrial machinery
• Employed in conveyor systems to control motion and positioning
• Suitable for packaging machinery ensuring precise operation
• Commonly used in electrical panels where space is limited

What is the operational range for ambient temperature?

The switch operates effectively between -25 °C and +85 °C, allowing it to function in a variety of environmental conditions without performance issues.

How does the switch manage large inrush currents?

It is designed to withstand inrush currents up to 75A, making it suitable for applications with large electrical loads during startup.

What type of connection does this switch use for wiring?

The limit switch features a screw terminal connection, which allows for easy wiring and ensures a secure attachment to electrical circuits.

How quickly can the actuation respond under normal operating conditions?

The actuation response time is fast, ensuring reliable performance in applications where timing is crucial.

Brand	Omron
Actuator Type	Plunger
Pole and Throw Configuration	SPDT
Normal State Configuration	NO/NC
IP Rating	IP00
Maximum Current	20A
Maximum AC Voltage	500V
Maximum DC Voltage	250V
Connection Type	Screw
Action Type	Snap Action
Length	49.2mm
Maximum Operating Temperature	+85°C
Width	17.45mm
Depth	25.5mm
Minimum Operating Temperature	-25°C
Mounting Orientation	Panel, Side
Mechanical Life	1000000Operations
