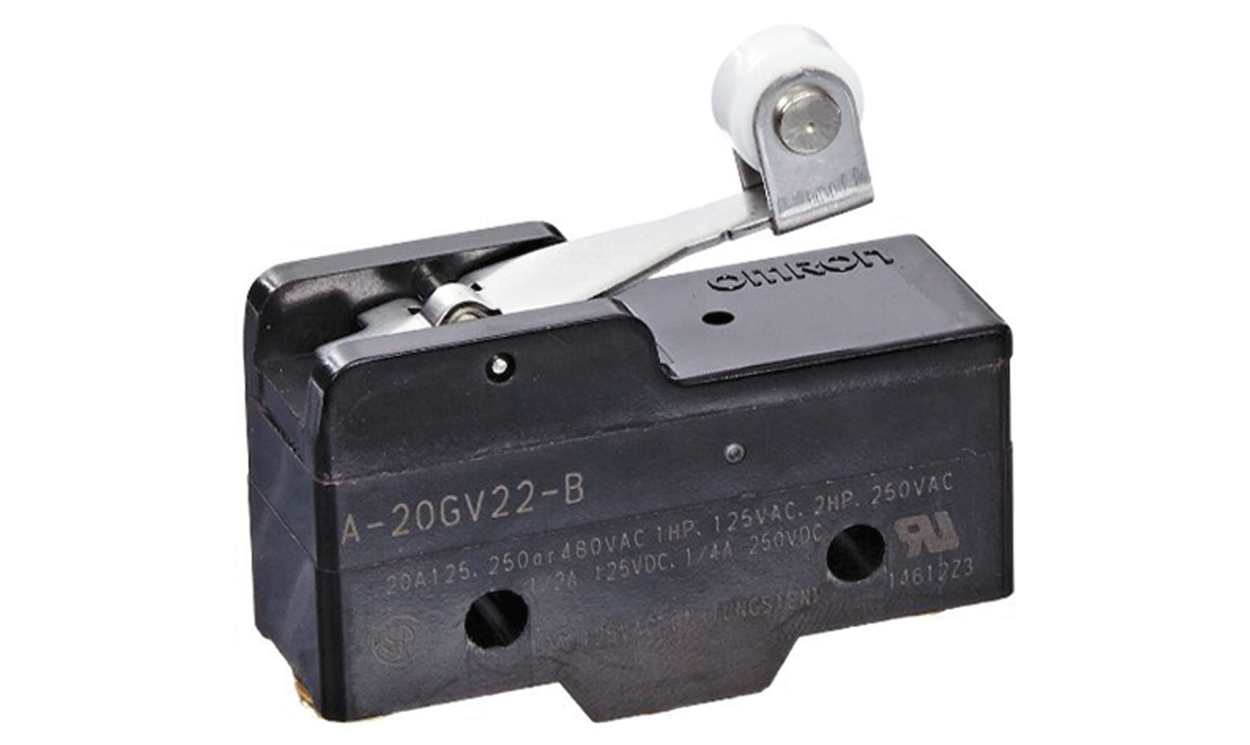

Omron A-20GV22-B, A-20 Series Roller Lever Limit Switch, NO/NC, IP00, SPDT, 500V ac Max, 20A Max

Name: Omron A-20GV22-B, A-20 Series Roller Lever Limit Switch, NO/NC, IP00, SPDT, 500V ac Max, 20A Max
Brand: OMRON
SKU: A-20GV22-B
Availability: OutOfStock

Part Number : A-20GV22-B

Availability: Sold out

Detailed Description
Specifications
Downloads

Omron A-20 Series Limit Switch, 20A Maximum Current, NO/NC Normal State Configuration - A-20GV22-B

This limit switch is suitable for high-capacity applications, managing loads up to 20 A. Its roller lever actuation offers dependable control in various industrial environments, serving automation, electronics, electrical, and mechanical sectors. With a mechanical life exceeding one million operations, it provides durability and efficiency.

Features & Benefits

• Versatile panel or side mounting options available
• Operates within a wide temperature range of -25°C to +80°C
• Durable design with an estimated mechanical life of over 1 million operations

Applications

• Automation equipment for precise control
• Electrical panels needing reliable switching
• General-purpose requiring durability

What type of connection should be used for installation?

Screw terminals are recommended for a secure connexion, ensuring proper electrical integrity.

How does the temperature range affect operational efficiency?

The switch operates effectively between -25°C and +80°C, ensuring reliability across diverse environments.

What is the maximum operating force of the device?

It features an operating force of 1.57 N, suitable for various actuation tasks without excessive stress.

How frequently can the switch be activated safely?

It is rated for 240 mechanical operations per minute under optimal conditions, maintaining performance longevity.

Brand	Omron
Actuator Type	Roller Lever
Pole and Throw Configuration	SPDT
Normal State Configuration	NO/NC
IP Rating	IP00
Maximum Current	20A
Maximum AC Voltage	500V
Maximum DC Voltage	250V
Connection Type	Screw
Series	A-20
Action Type	Snap Action
Length	49.2mm
Minimum Operating Temperature	-25°C
Maximum Operating Temperature	+80°C
Width	17.45mm
Depth	29.4mm
Mechanical Life	1000000Operations
Mounting Orientation	Panel, Side
Operating Force	1.57 N
