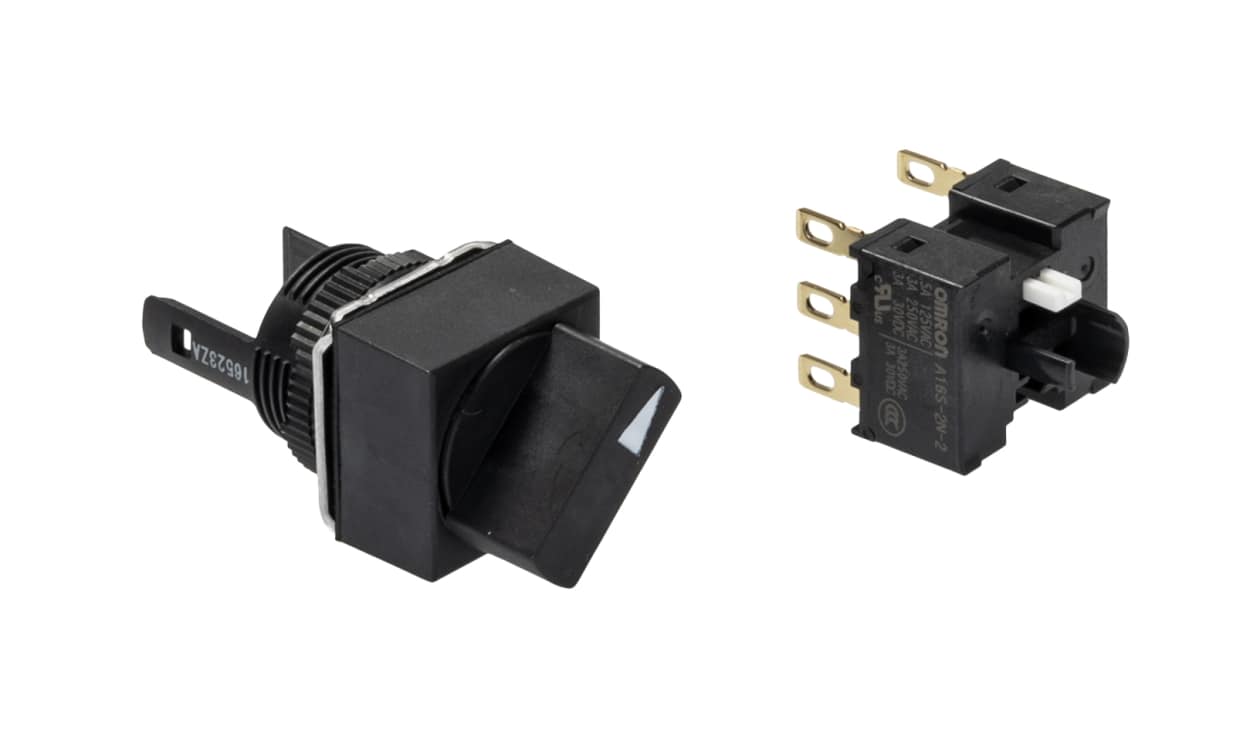

OMRON A165S-A2M-2 | Selector Switch | 2 Position, DPDT, 16 mm, Latching

Name: OMRON A165S-A2M-2 | Selector Switch | 2 Position, DPDT, 16 mm, Latching
Brand: OMRON
SKU: A165S-A2M-2
Availability: OutOfStock

Part Number : A165S-A2M-2

The OMRON A165S-A2M-2 is a complete selector switch unit with 2 latching positions, DPDT contacts and solder terminals for a 16 mm panel cutout. Maximum ratings are 250 V AC / 30 V DC; the switch is black, non-illuminated and IP65 protected.

Contact configuration: DPDT
Positions: 2
Actuation: latching
Panel cutout: 16 mm
Maximum voltage: 250 V AC / 30 V DC
Terminals: solder
Protection: IP65
Type: complete unit

Availability: in stock

Detailed Description
Specifications
Downloads

Omron Omron A165 Series Selector Switch, DPDT Contact Configuration, IP65 - A165S-A2M-2

This selector switch is an essential part of various electrical systems, aimed at improving control and functionality. Its simple two-position design allows for effortless toggling, making it suitable for applications where precise control is necessary. With an IP65 rating, it is designed to resist dust and moisture, ensuring durability in challenging conditions. This switch offers stable performance for professionals in automation, electronics, and mechanical sectors.

Features & Benefits

• DPDT configuration supports flexible circuit control
• IP65 rating ensures protection from dust and water ingress
• Latching mechanism maintains position retention
• Solder terminals enable secure connections
• Compact 16mm cut-out simplifies integration into systems
• Classic black finish provides a professional appearance

Applications

• Utilised in control panels for machinery operation
• Suitable for automation systems needing position selection
• Employed in lighting circuits for effective control
• Appropriate for industrial control with specific needs

What type of wiring is compatible with this product?

This product features solder terminals for secure connections.

How does the latching feature work?

The latching mechanism keeps the switch in its position until manually changed.

Is this suitable for low voltage applications?

It can handle a maximum DC voltage of 30V, making it suitable for low voltage applications.

What are the installation requirements for this switch?

A 16mm cut-out is necessary for proper installation in control panels.

Omron 16mm Diameter Cut Out - 230Vac Rated

Modular construction (case + contact or indicator block + lens + lamp)
Easy, snap-together assembly
IP65 sealed
Conforms to EN60943-5-1, IEC947-5-1

Brand	Omron
Number of Positions	2
Selector Switch Type	Selector Switch Complete Unit
Contact Configuration	DPDT
IP Rating	IP65
Series	Omron A165
Cutout Diameter	16mm
Terminal Type	Solder
Illuminated	No
Colour	Black
Maximum AC Voltage	250V
Maximum DC Voltage	30V
Switch Actuation	Latching
