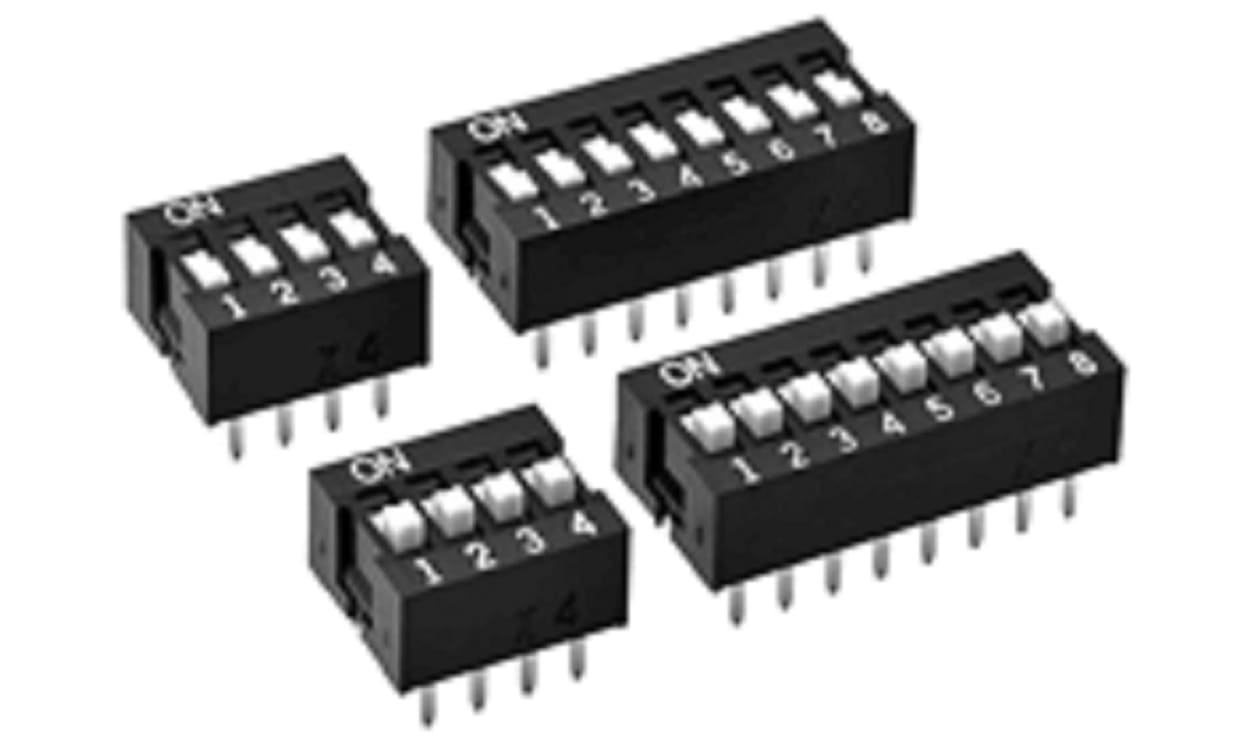

Omron A6E-8101-N, 8 Way Through Hole DIP Switch SPST, Flat Actuator, IP40

Name: Omron A6E-8101-N, 8 Way Through Hole DIP Switch SPST, Flat Actuator, IP40
Brand: General Tech Services LLC
SKU: A6E-8101-N
Availability: OutOfStock

Part Number : A6E-8101-N

Availability: Sold out

Detailed Description
Specifications

The Omron slide dip switch is box type through-hole mounting dip switch. It has gold-plated twin contacts ensure high reliabilIty. It available both on and off-set soldering.

Ambient operating temperature –20 to +70°C at 60% maximum (with no icing or condensation)
Ambient operating humidity 35% to 95% (at +5 to +35°C)
Insulation resistance 100 MΩ minimum (at 250 VDC with insulation tester)
Contact resistance (initial value) 200 mΩ maximum (initial value)
Dielectric strength between terminals 500 VAC for 1 minimum
Durability 1,000 operations minimum
Degree of protection IEC IP40

Brand	Omron
Number of Positions	8
Mounting Type	Through Hole
Contact Material	Au plated
Contact Configuration	SPST
Actuator Type	Flat
Contact Current Rating	25 mA
IP Rating	IP40
