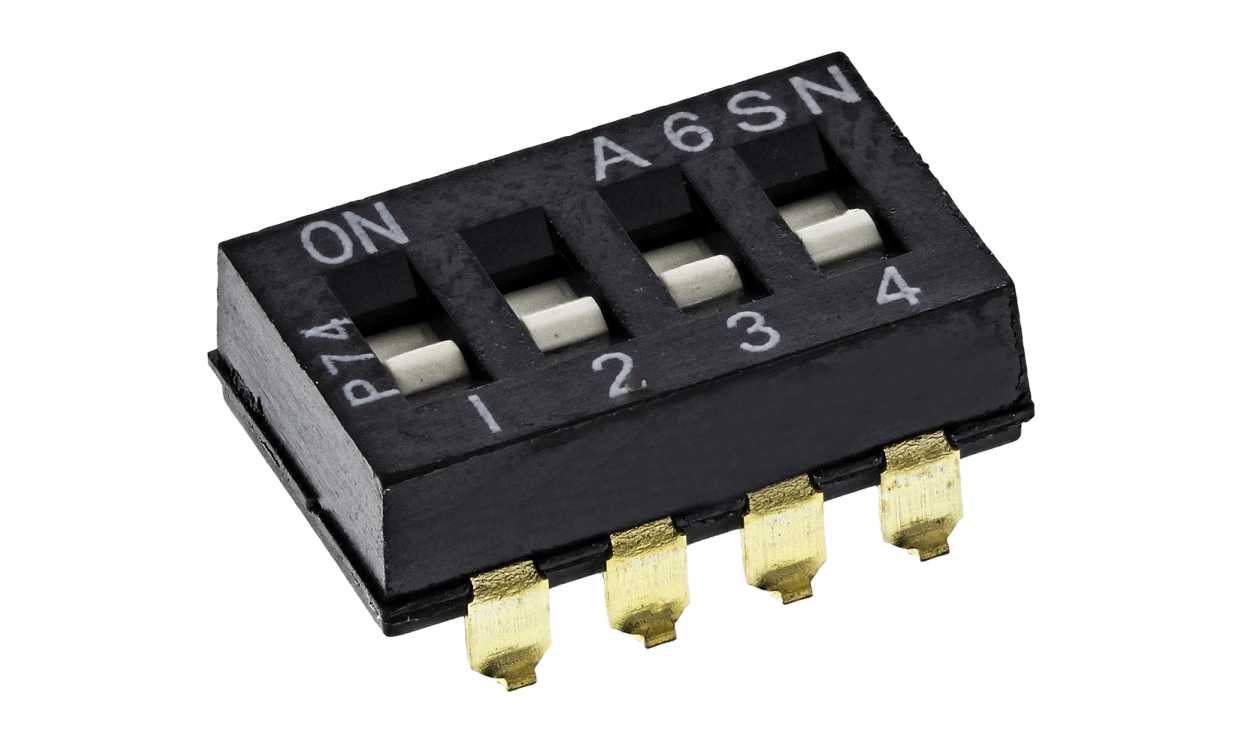

Omron A6SN-4101, 4 Way Surface Mount DIP Switch SPST, Flat, Slide Actuator

Client Protection

Dedicated Support

Client Protection

Dedicated Support

Omron A6SN-4101, 4 Way Surface Mount DIP Switch SPST, Flat, Slide Actuator

Name: Omron A6SN-4101, 4 Way Surface Mount DIP Switch SPST, Flat, Slide Actuator
Brand: OMRON
SKU: A6SN-4101
Availability: OutOfStock

Part Number : A6SN-4101

Availability: Sold out

Detailed Description
Specifications
Downloads

Slide Switch (Knife-Edge)

These Omron DIL SMT slide switches have knife-edge high pressure contacts to ensure high reliability and allow washing without sealing. The dielectric resin of these SMT DIL switches allow peak reflow temperatures of 260°C.

Dual-In-Line Switches

Sub-miniature switches in a choice of configurations and actions. Note that these switches are not suitable for immersion cleaning unless stated otherwise.

Brand	Omron
Number of Positions	4
Mounting Type	Surface Mount
Contact Configuration	SPST
Package Style	DIP
Actuator Type	Flat, Slide
Contact Current Rating	25 mA@ 24 V dc
Mechanical Life	1000Cycles
Maximum Operating Temperature	+85°C
Minimum Operating Temperature	-30°C
Operating Temperature Range	-30 → +85°C
