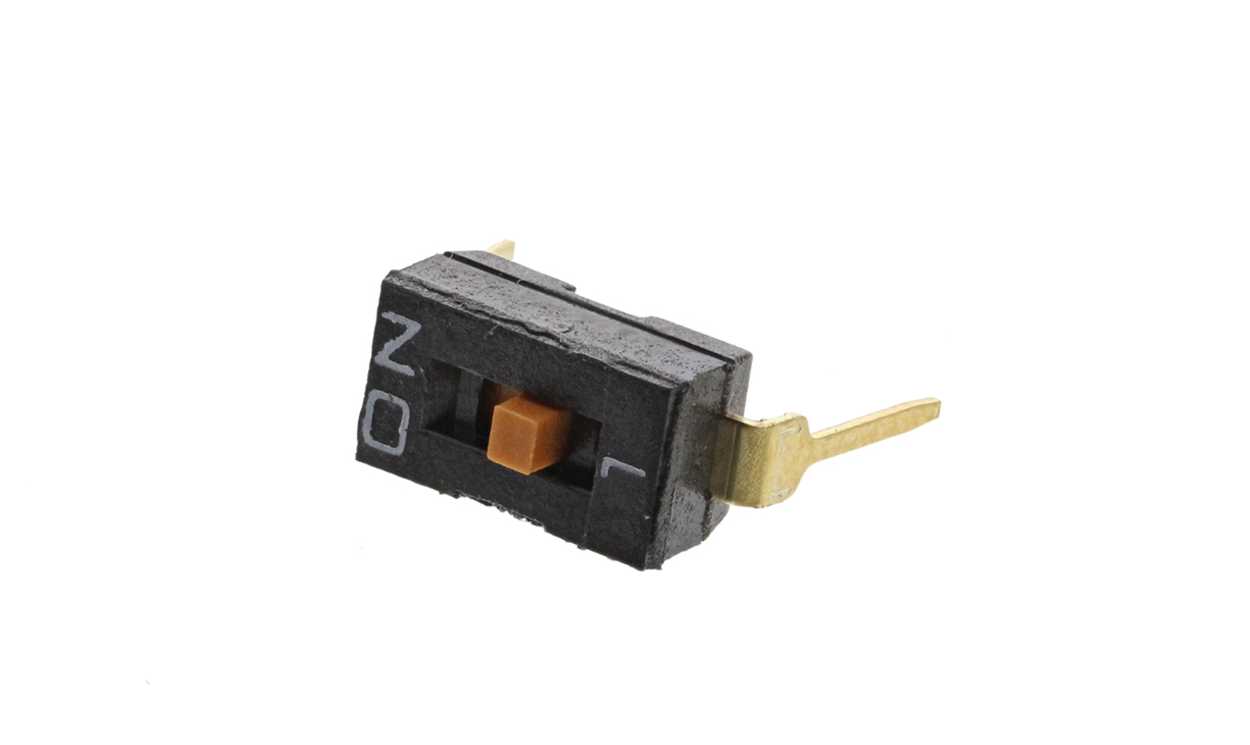

Omron A6T-1104, 1 Way Through Hole DIP Switch SPST

Name: Omron A6T-1104, 1 Way Through Hole DIP Switch SPST
Brand: OMRON
SKU: A6T-1104
Availability: OutOfStock

Part Number : A6T-1104

Availability: Sold out

Detailed Description
Specifications
Downloads

Slide Switch, Raised and Flush Actuator

Through board mount DIL switches designed to DIL standards. Allow automatic mounting with IC insertion machines.

Through board mounting
Seal tape versions available
Gold plated contacts
Contact resistance: 200mΩ max
Insulation resistance: 100MΩ min at 250Vdc
RoHS compliant
Mechanical life: 1000 operations

Note

Unless stated otherwise, these switches are not suitable for immersion cleaning

Brand	Omron
Number of Positions	1
Mounting Type	Through Hole
Contact Configuration	SPST
Contact Material	Gold Plated
Package Style	DIP
Actuator Type	Slide
Contact Current Rating	25 mA@ 24 V dc
Mechanical Life	1000Operations
Maximum Operating Temperature	+70°C
Minimum Operating Temperature	-20°C
Operating Temperature Range	-20 → +70°C
Dielectric Strength	500V ac
