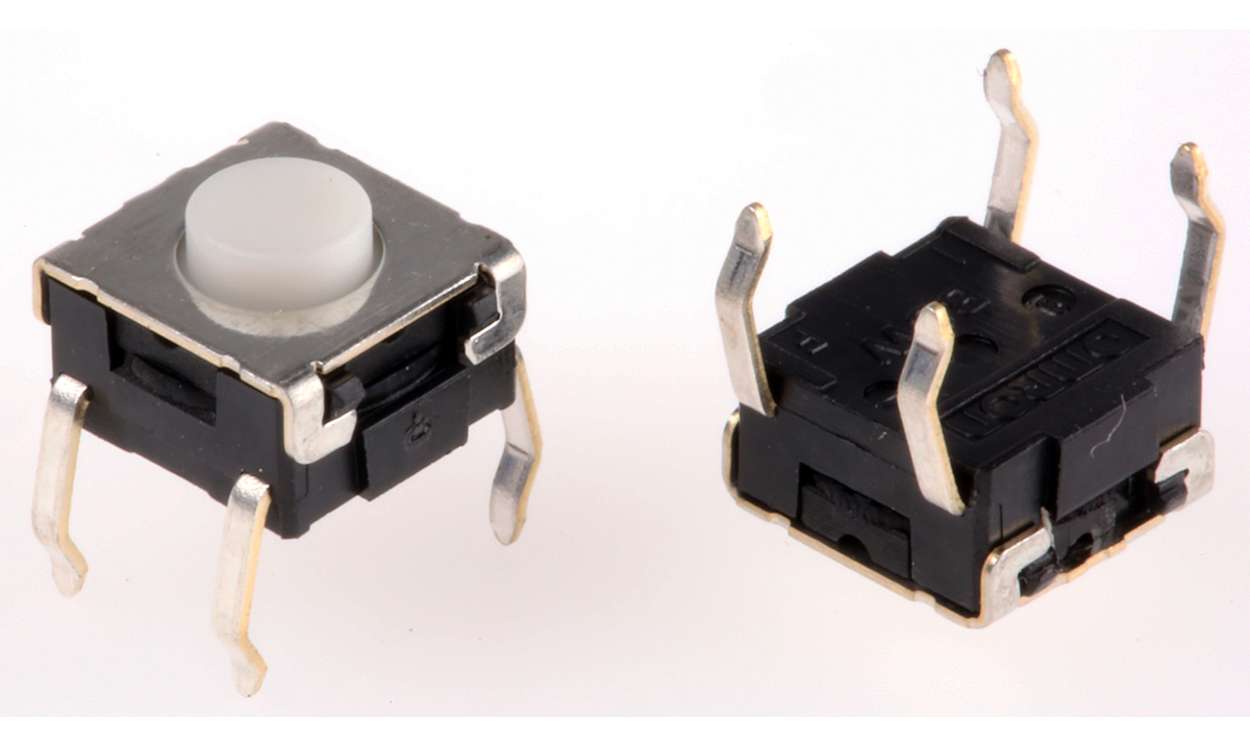

Omron B3W1000, Plunger Tactile Switch, SPST 50 mA @ 24 V dc 0.9mm Through Hole

Name: Omron B3W1000, Plunger Tactile Switch, SPST 50 mA @ 24 V dc 0.9mm Through Hole
Brand: OMRON
SKU: B3W1000
Availability: OutOfStock

Part Number : B3W1000

Availability: Sold out

Detailed Description
Specifications
Downloads

Tactile Switches Omron B3W 1000 series (6 mm Sealed Type)

Internal sealed construction allows immersion cleaning with alcohol solvents after soldering
Snap-action contact construction for a positive click action

Tactile

Brand	Omron
Contact Configuration	SPST
Terminal Type	Through Hole
Actuator Length	0.9mm
Actuator Type	Plunger
Length	6.6mm
Width	6mm
Dimensions	6.6 x 6 x 4.30mm
Mounting Type	Through Hole
Contact Current Rating	50 mA @ 24 V dc
Operating Force	1.57 N
Height	4.3mm
Minimum Operating Temperature	-25°C
Operating Temperature Range	-25 → +70°C
Maximum Operating Temperature	+70°C
Mechanical Life	1000000Operations

Omron B3W1000, Plunger Tactile Switch, SPST 50 mA @ 24 V dc 0.9mm Through Hole

DOWNLOAD CATALOG

B3W1000 Datasheet 0900766b813ecc65
