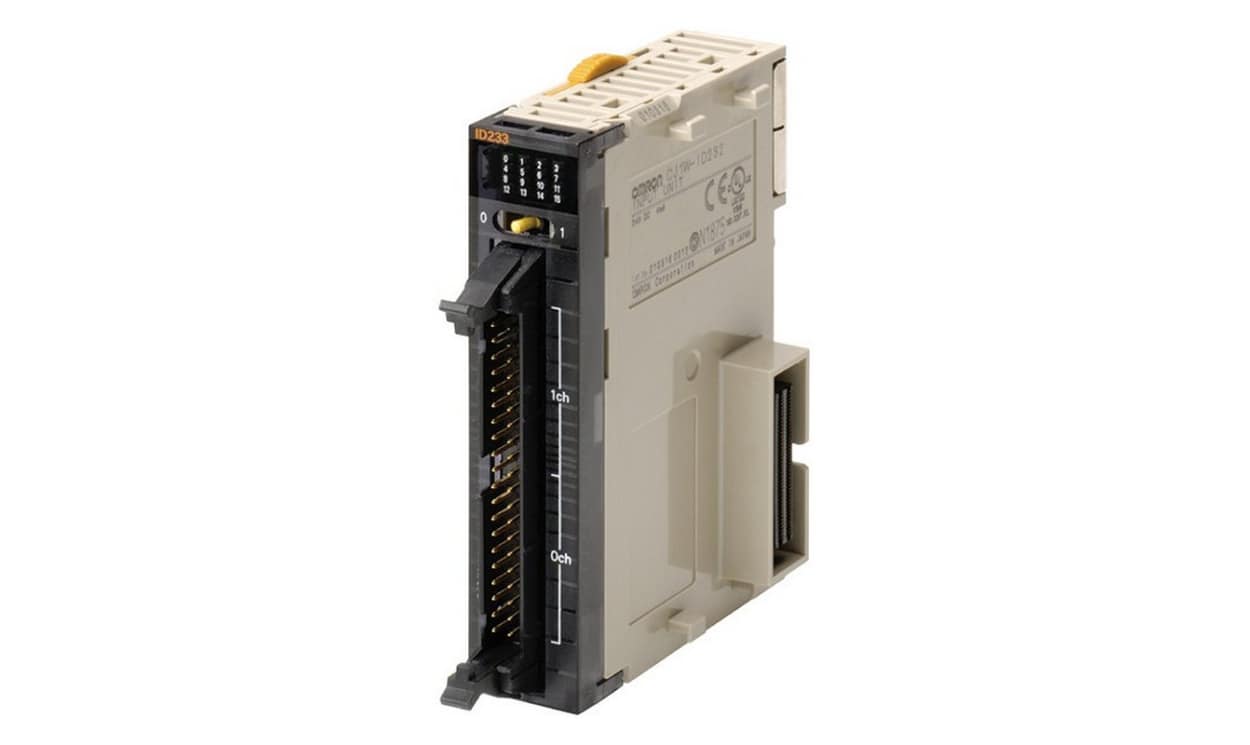

OMRON CJ1W-ID233 | DC Input Unit | For SYSMAC CJ Series

Name: OMRON CJ1W-ID233 | DC Input Unit | For SYSMAC CJ Series
Brand: OMRON
SKU: CJ1W-ID233
Availability: OutOfStock

Part Number : CJ1W-ID233

OMRON CJ1W-ID233 is a DC input unit for SYSMAC CJ Series PLCs.

Part number: CJ1W-ID233
Type: DC input unit
For use with: SYSMAC CJ Series

Availability: in stock

Detailed Description
Specifications
Downloads

The Omron digital input unit has rated input voltage of 20.4 to 26.4 VDC .It has input impedance 5.6 kΩ with input current 4.1 mA typical at 24 VDC.

Insulation resistance 20 MΩ minimum between external terminals and the GR terminal (100 VDC)
Dielectric strength 1,000 VAC between the external terminals and the GR terminal for 1 minute at a leakage current of 10 mA maximum.
Internal current consumption

Brand	Omron
Accessory Type	DC Input Unit
For Use With	SYSMAC CJ Series

OMRON CJ1W-ID233 | DC Input Unit | For SYSMAC CJ Series

DOWNLOAD CATALOG
