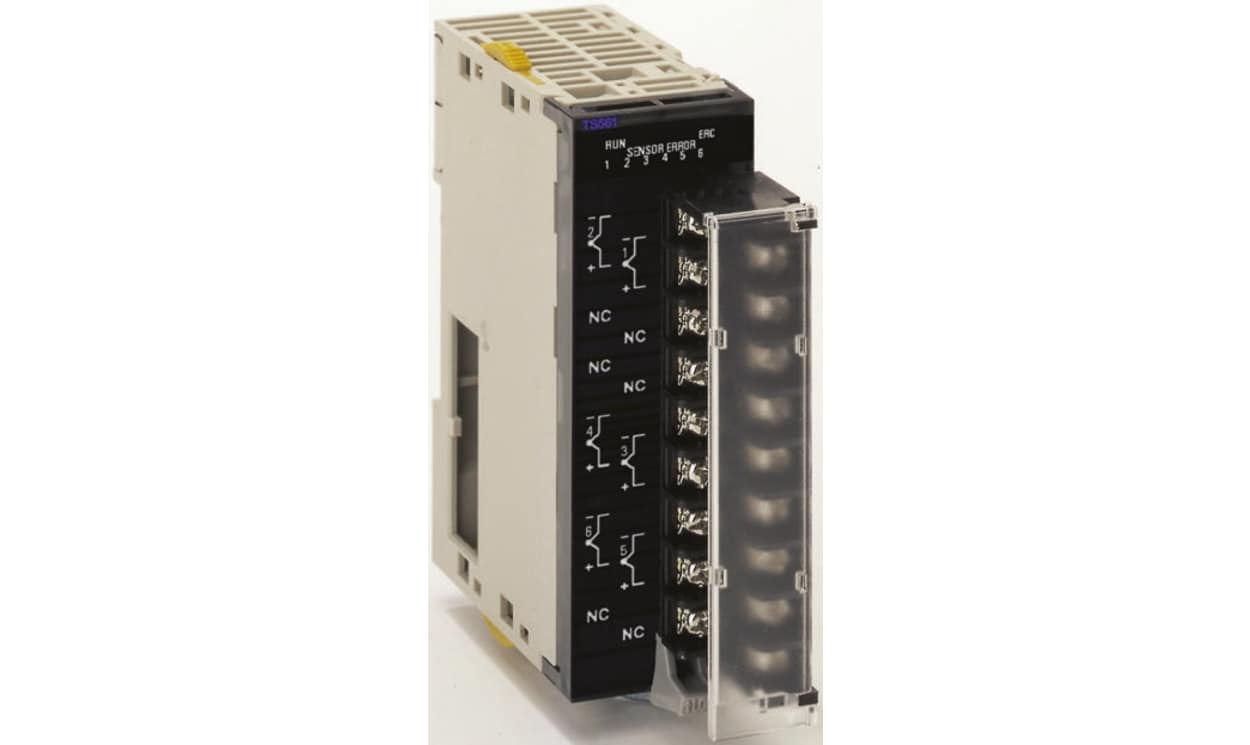

Omron CJ1W-TC002, PLC Expansion Module for Use with CJ Series, Thermocouple, PNP

Name: Omron CJ1W-TC002, PLC Expansion Module for Use with CJ Series, Thermocouple, PNP
Brand: OMRON
SKU: CJ1W-TC002
Availability: OutOfStock

Part Number : CJ1W-TC002

Temperature control unit, R/S/K/J/T/L/B thermocouple inputs, transistor (PNP) output, 4 loops

Availability: Sold out

Detailed Description
Specifications
Features

Omron Temperature Control Module

The Omron temperature control module has thermocouple inputs, 4 loops and open collector control PNP outputs. It is a special I/O unit with the direct input of thermocouple or resistance thermometer, PID control with 2 degrees of freedom and open collector output. This temperature sensor unit is classified as digital I/O units when considering I/O allocations and will take digital I/O points from the total allocation for a CJ1M CPU. In data storage mode, up to 65 data collection patterns are possible with one basic collection pattern and data collection patterns 1 to 64. It is used with CJ series.
Omron CJ1M digital and analogue I/O modules
CJ1 digital I/O, analogue I/O and communication modules clip together to the right of the CPU in any combination up to a maximum of 10 modules. Further 10 modules can be connected to a CJ1M-CPU13 or CJ1M-CPU23 based system as part of an expansion assembly.
Dimensions: Height- 90mm, Width- 31mm, Depth- 89mm
All the modules have removable screw terminal blocks for I/O connections, except screwless (SL).

Features and Benefits

500ms sampling cycle
Run/Stop control from CPU Unit
Unrestricted CPU unit cycle time
Heater burnout detection
Auto-tuning (AT) function
DIN rail mounting
Removable terminal block with 18 points (M3 screws)

Applications

Industrial automation
Pharmaceutical
Food processing

Certifications

CE
cULus approved
Lloyd approved
NK certified
UC1 listed

Brand	Omron
Accessory Type	PLC Expansion Module
Number of Inputs	4
Input Type	Thermocouple
Output Type	PNP
Number of Outputs	4
For Use With	CJ Series

Temperature control unit, R/S/K/J/T/L/B thermocouple inputs, transistor (PNP) output, 4 loops
