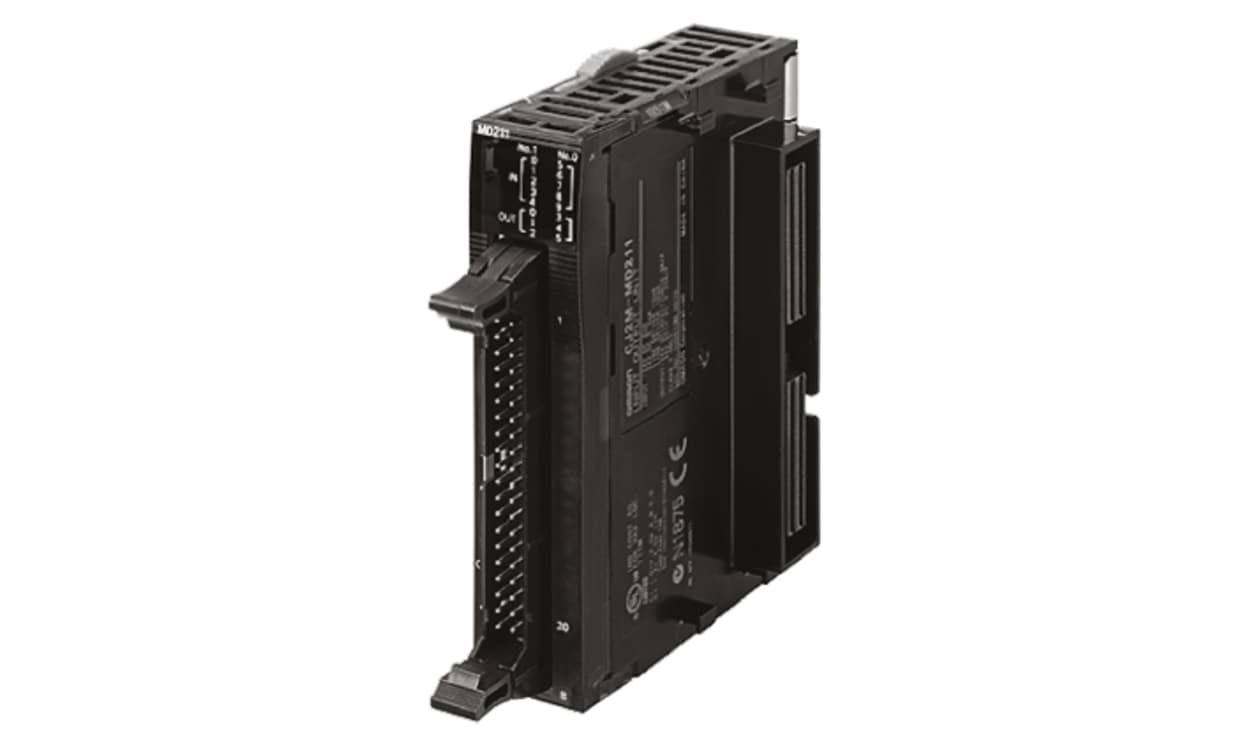

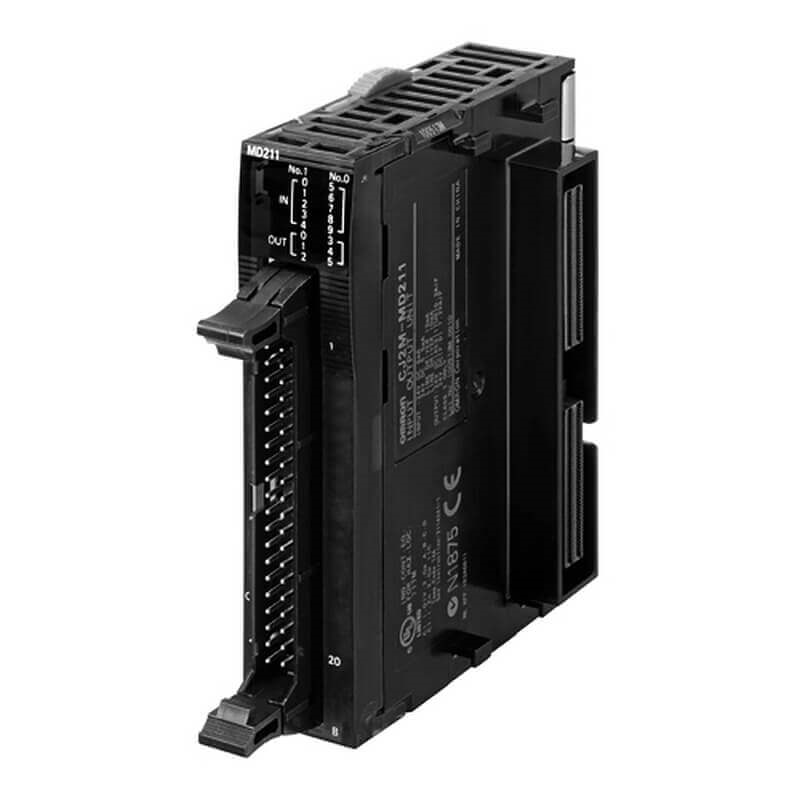

OMRON CJ2M-MD211 | Pulse I/O Module for CJ2M | NPN, 10 Inputs, 6 Outputs

Name: OMRON CJ2M-MD211 | Pulse I/O Module for CJ2M | NPN, 10 Inputs, 6 Outputs
Brand: OMRON
SKU: CJ2M-MD211
Availability: OutOfStock

Part Number : CJ2M-MD211

The OMRON CJ2M-MD211 is an NPN pulse I/O module for the CJ2M with 10 inputs and 6 outputs. Inputs include four interrupt/quick-response and two high-speed counter inputs; outputs include two pulse and two PWM outputs.

10 inputs: 4 interrupt/quick-response, 2 high-speed counter
6 outputs: 2 pulse, 2 PWM
Type: NPN
For use with: CJ2M Series
Dimensions: 95.4 x 20 x 83.8 mm

Availability: in stock

Detailed Description
Specifications
Features

CJ2M Communications Module

Pulse I/O Modules expand the applicable positioning applications. Easily execute the position control of up to four axes

Can be used as normal inputs, interrupt inputs, quick-response inputs, or high-speed counter inputs
Sinking outputs; CJ2M-MD211 (746-2896)
Sourcing outputs; CJ2M-MD212 (818-4175)

Omron CJ2M CPU's, PSU's and Expansion Control/Interface Modules

Brand	Omron
Manufacturer Series	CJ
Number of Inputs	10
Output Type	Pulse
For Use With	CJ2M Series
Input Type	Pulse
Voltage Category	5 → 24 V dc
Number of Outputs	64
Dimensions	95.4 x 20 x 83.8 mm
Length	95.4mm
Width	20mm
Depth	83.8mm

Pulse I/O Module for CJ2M, NPN with 10 inputs (four interrupt/quickresponse and two high-speed counter inputs) and 6 outputs (two pulse and two PWM outputs)
