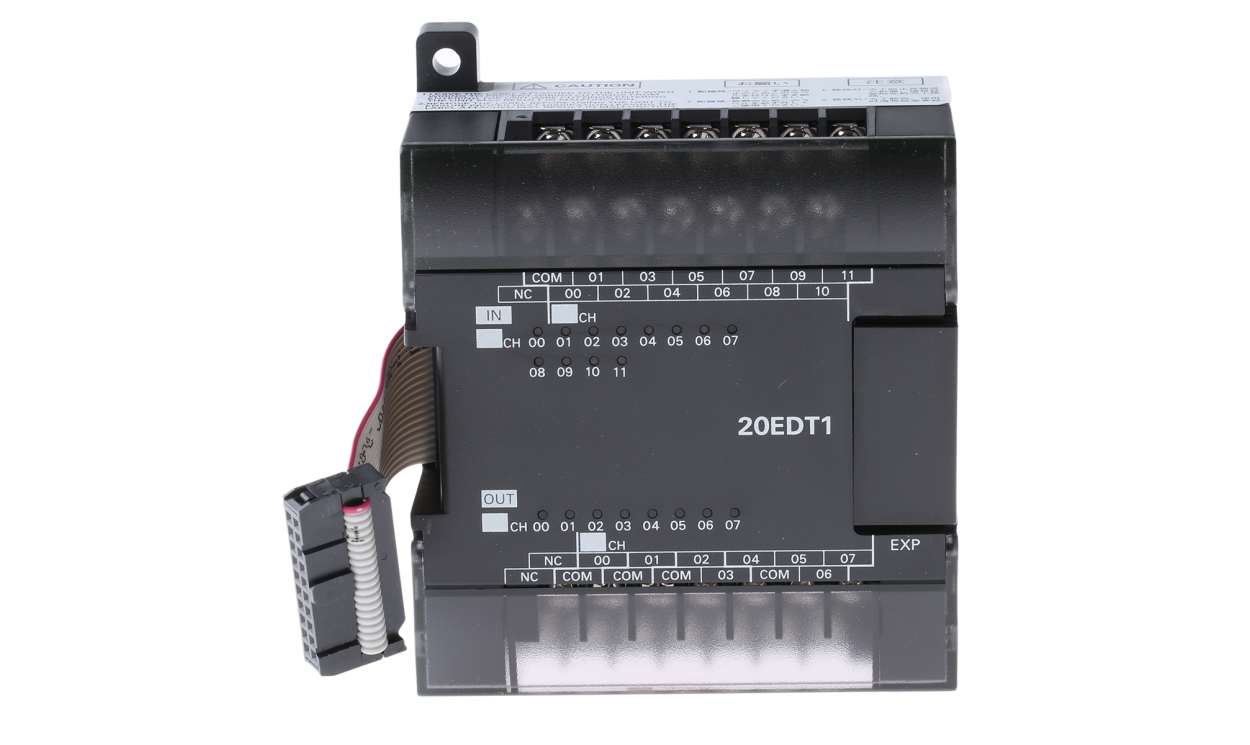

OMRON CP1W-20EDT1 | I/O Expansion Unit | 12 x 24 VDC In, 8 x PNP Out

Name: OMRON CP1W-20EDT1 | I/O Expansion Unit | 12 x 24 VDC In, 8 x PNP Out
Brand: OMRON
SKU: CP1W-20EDT1
Availability: OutOfStock

Part Number : CP1W-20EDT1

Twelve 24 VDC inputs and eight PNP outputs rated 0.3 A are combined in the OMRON CP1W-20EDT1 I/O expansion unit.

Inputs: 12 x 24 VDC
Outputs: 8 x PNP (transistor)
Output current: 0.3 A
Dimensions: 90 x 86 x 50 mm

Availability: in stock

Detailed Description
Specifications
Features
Downloads

Omron PLC Expansion Module, Voltage Input, Transistor Output - CP1W-20EDT1

This PLC expansion module enhances the capabilities of programmable logic controllers, facilitating efficient automation processes by adding additional inputs and outputs. Its specifications, including voltage input and transistor output, allow for seamless integration with existing systems, optimising performance in automation and control tasks.

Features & Benefits

• Integrates 12 voltage inputs for extensive device connectivity
• Provides 8 transistor outputs for rapid response times
• Compact design for easy installation in limited spaces
• Versatile accessory suitable for various PLC modules
• Enhances automation system functionality with added I/O
• Supports efficient data processing in industrial applications

Applications

• Used in complex automation systems for effective control
• Employed in electronic assembly for improved workflow
• Implemented in mechanical systems requiring diligent monitoring
• Integrated within manufacturing processes to improve operations
• Utilised with robotics to enhance programmable capabilities

What power supply is required for operation?

It operates effectively with standard AC supply configurations, ensuring compatibility with typical PLC setups.

How is the module installed?

Installation is straightforward, typically requiring standard mounting brackets for secure placement.

Can additional modules be added for increased I/O?

Yes, it can be stacked with other modules to enhance overall system capacity.

Is it compatible with all Omron PLC systems?

While it primarily works with Omron PLCs, it is advisable to verify compatibility with specific models for seamless integration.

Omron CP1L CPU's, Expansion Modules and Accessories

Omron's CP1L series offers the compactness of a micro-PLC with the capability of a modular PLC. The range is not only compact, it is scaleable too, and has a faster processing speed than other controllers.

Brand	Omron
Accessory Type	PLC Expansion Module
Number of Inputs	12
Input Type	Voltage
Output Type	Transistor
Number of Outputs	8
For Use With	PLC Module
Dimensions	90 x 86 x 50 mm
