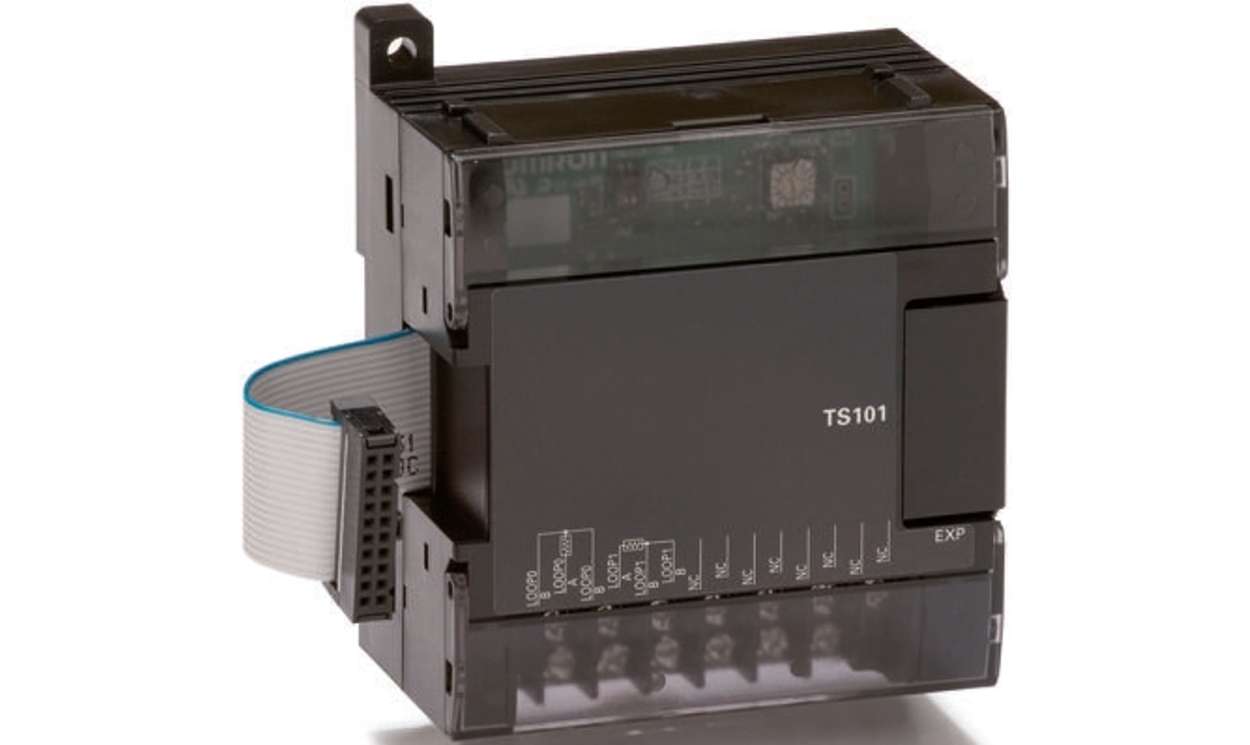

OMRON CP1W-TS101 | RTD Input Expansion Unit | 2 x Pt100, CP1H/CP1L

Name: OMRON CP1W-TS101 | RTD Input Expansion Unit | 2 x Pt100, CP1H/CP1L
Brand: OMRON
SKU: CP1W-TS101
Availability: OutOfStock

Part Number : CP1W-TS101

OMRON CP1W-TS101 is an I/O expansion unit with two Pt100 RTD inputs, for CP1H and CP1L Series PLCs.

Inputs: 2 x RTD, Pt100
For use with: CP1H Series, CP1L Series
Dimensions: 86 x 90 x 50 mm

Availability: in stock

Detailed Description
Specifications
Features
Downloads

CP1L Temperature Sensor Input Modules

By mounting a Temperature Sensor Unit to the PLC, inputs can be obtained from thermocouples or platinum resistance thermometers, and temperature measurements can be converted to binary data (4-digit hexadecimal) and stored in the input area of the CPU Unit.

Omron CP1L CPU's, Expansion Modules and Accessories

Omron's CP1L series offers the compactness of a micro-PLC with the capability of a modular PLC. The range is not only compact, it is scaleable too, and has a faster processing speed than other controllers.

Brand	Omron
Accessory Type	Platinum Resistance Temperature Sensor
Number of Inputs	2
Input Type	Thermometer
For Use With	CP1H Series, CP1L Series
Dimensions	86 x 90 x 50 mm

I/O expansion unit, 2 x RTD inputs Pt100
