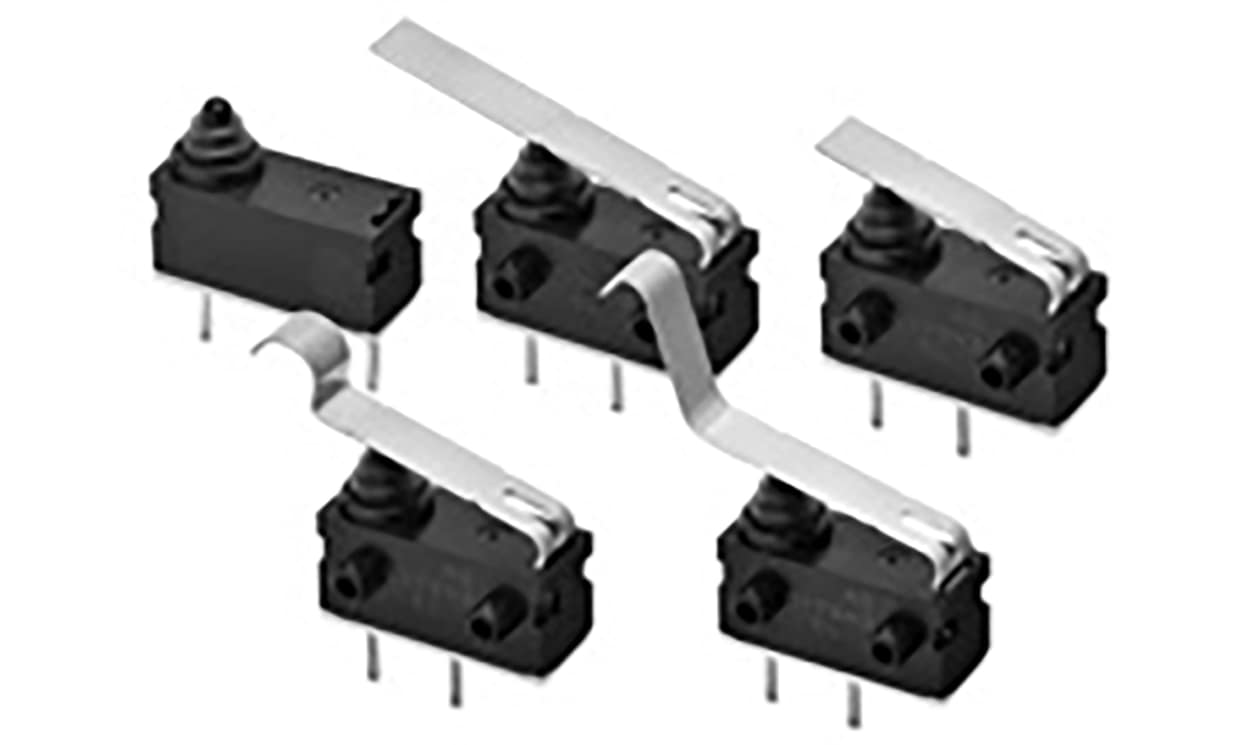

Name: Omron D2AW-EL053D R, Long Straight Lever Subminiature Micro Switch, PCB Terminal, 100 mA, SPST, IP67
Brand: OMRON
SKU: D2AW-EL053D R
Availability: OutOfStock

Omron D2AW-EL053D R, Long Straight Lever Subminiature Micro Switch, PCB Terminal, 100 mA, SPST, IP67

Client Protection

Dedicated Support

Client Protection

Dedicated Support

Omron D2AW-EL053D R, Long Straight Lever Subminiature Micro Switch, PCB Terminal, 100 mA, SPST, IP67

Part Number : D2AW-EL053D R

Availability: Sold out

Detailed Description
Specifications
Downloads

Long stroke seal switch with high reliability and high insulation performance

Double reliability by twin contacts (=Clipping contact). Foreign materials are cleaned out by the sliding contacts.
Quiet operating sound by sliding contact construction is needed for high grade car.
High performance of Insulation resistance by unique contact structure.

Brand	Omron
Actuator Type	Long Straight Lever
Terminal Type	PCB
Contact Current Rating	100 mA
Contact Configuration	SPST
IP Rating	IP67
Operating Force	1.5 N
Minimum Operating Temperature	-40°C
Maximum Operating Temperature	+85°C
Switch Housing	D2 Housing
Contact Material	Silver
Case Material	Rubber
Voltage Rating	12V dc
Release Force	0.1N
Standards Met	IEC 60529
Operating Temperature Range	-40 → +85°C

Omron D2AW-EL053D R, Long Straight Lever Subminiature Micro Switch, PCB Terminal, 100 mA, SPST, IP67

DOWNLOAD CATALOG
