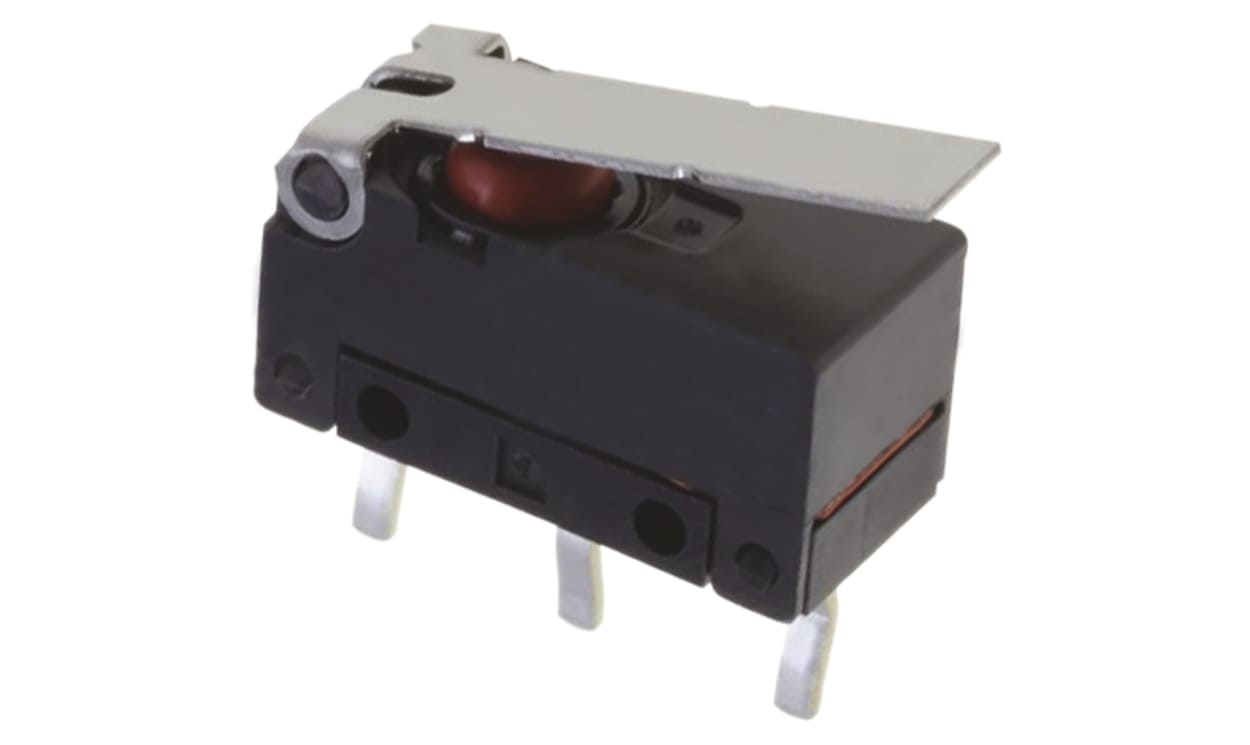

OMRON D2FD-01L1-1T | Hinge Lever Micro Switch | PC Pin Terminal, 100 mA @ 30 V dc, SP-CO
The OMRON D2FD-01L1-1T carries a 100 mA at 30 V DC contact rating and is built as a hinge lever micro switch with PC pin terminals. It offers SP-CO contacts and IP6X protection.
- Contact current rating: 100 mA at 30 V DC
- Contact configuration: SP-CO
- Operating force 0.65 N, release force 0.05 N
- Operating temperature: -20 to +70 °C
- Contact material: Gold Alloy; case material: Rubber
- Mechanical life: 300,000 operations
- Detailed Description
- Specifications
Omron Subminiature Switches - D2FD Series
| Brand | Omron |
| Actuator Type | Hinge Lever |
| Terminal Type | Pc Pin |
| Contact Configuration | SP-CO |
| IP Rating | IP6X |
| Contact Current Rating | 100 mA @ 30 V dc |
| Minimum Operating Temperature | -20 °C (-4 °F) |
| Maximum Operating Temperature | +70 °C (158 °F) |
| Contact Material | Gold Alloy |
| Mechanical Life | 300000Operations |
| Operating Temperature Range | -20 → +70 °C (-4 to 158 °F) |
| Operating Force | 0.65 N |
| Release Force | 0.05N |
| Case Material | Rubber |
