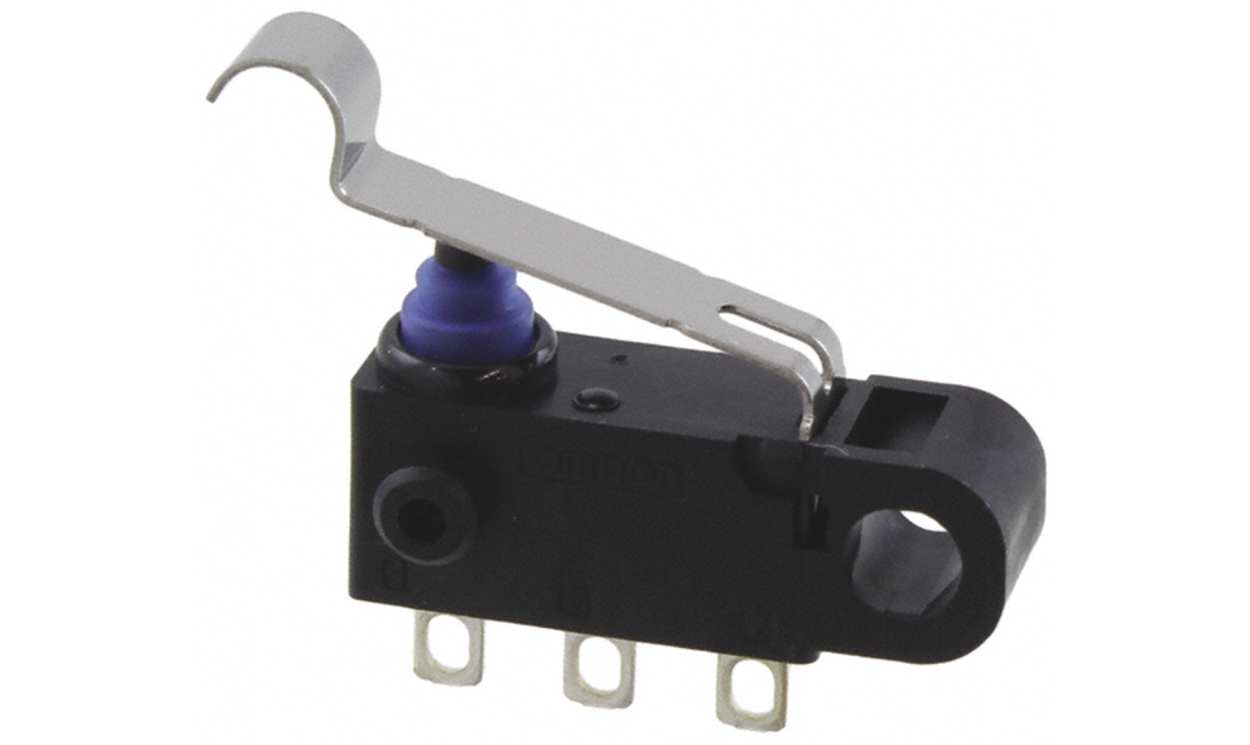

OMRON D2HW-C271H | Sealed Micro Switch | Simulated Roller Lever, SPDT, 2 A, IP67
Using a simulated roller lever, the OMRON D2HW-C271H is an IP67 sealed micro switch with SPDT gold alloy contacts rated 2 A at 12 V DC. It has solder terminals, an operating force of 1.8 N and a mechanical life of 1,000,000 operations.
- Simulated roller lever actuator
- SPDT, 2 A at 12 V DC
- Gold alloy contacts, solder terminals
- IP67
- Operating force 1.8 N, release force 0.2 N
- 1,000,000 operations, -40 to +85 °C
- Detailed Description
- Specifications
- Downloads
Ultra Subminiature Sealed Microswitch ,(D2HW Screw Mount)
Extra long stroke
Dimensions are 78% of conventional models
PCB terminal versions have straight and right angled terminals
Contact rating: 2A @ 12Vdc, 0.1A @ 125Vac
Minimum Load: 1mA @ 5Vdc
Contact configuration: SPDT
| Brand | Omron |
| Actuator Type | Simulated Roller Lever |
| Terminal Type | Solder |
| Contact Configuration | SPDT |
| IP Rating | IP67 |
| Contact Current Rating | 2 A @ 12 V dc |
| Minimum Operating Temperature | -40 °C (-40 °F) |
| Maximum Operating Temperature | +85 °C (185 °F) |
| Contact Material | Gold Alloy |
| Mechanical Life | 1000000Operations |
| Operating Temperature Range | -40 → +85 °C (-40 to 185 °F) |
| Operating Force | 1.8 N |
| Release Force | 0.2N |
