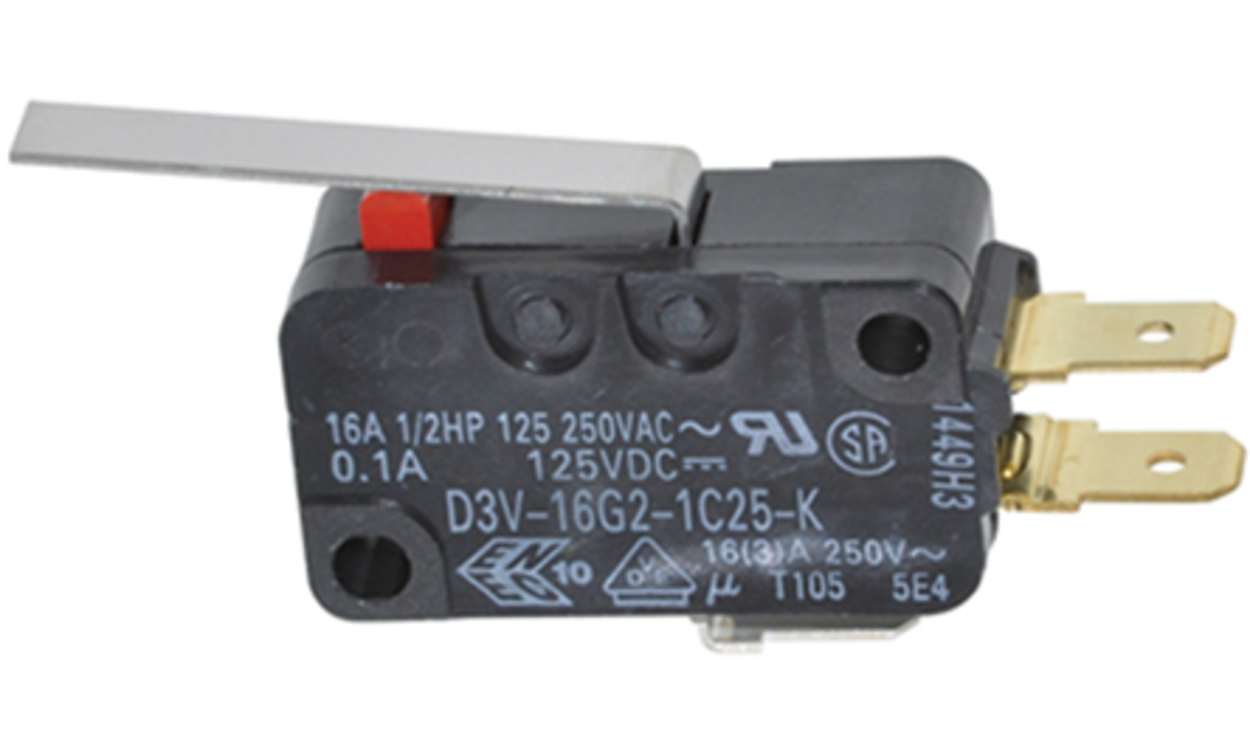

OMRON D3V-16G2-1C25-K | Hinge Lever Micro Switch | 16 A @ 250 V ac, SP-CO, Quick Connect Terminal
With a hinge lever actuator and quick-connect terminals, the OMRON D3V-16G2-1C25-K micro switch switches 16 A at 250 V ac through SP-CO contacts. On this hinge lever version, operating force is 200 gf. The quick-connect-terminal model covers an operating range of -25 to +105 °C.
- Contact configuration: SP-CO (single-pole changeover)
- Contact material: silver alloy
- Mechanical life: 10 million operations
- Ingress protection: IP40
- Housing: D3V Housing
- Detailed Description
- Specifications
Omron Miniature
16A contact switching
Various lever styles available
| Brand | Omron |
| Actuator Type | Hinge Lever |
| Terminal Type | Quick Connect |
| Contact Configuration | SP-CO |
| IP Rating | IP40 |
| Contact Current Rating | 16 A @ 250 V ac |
| Minimum Operating Temperature | -25 °C (-13 °F) |
| Maximum Operating Temperature | +105 °C (221 °F) |
| Contact Material | Silver Alloy |
| Mechanical Life | 10000000Operations |
| Operating Temperature Range | -25 → +105 °C (-13 to 221 °F) |
| Operating Force | 200 gf |
| Switch Housing | D3V Housing |
