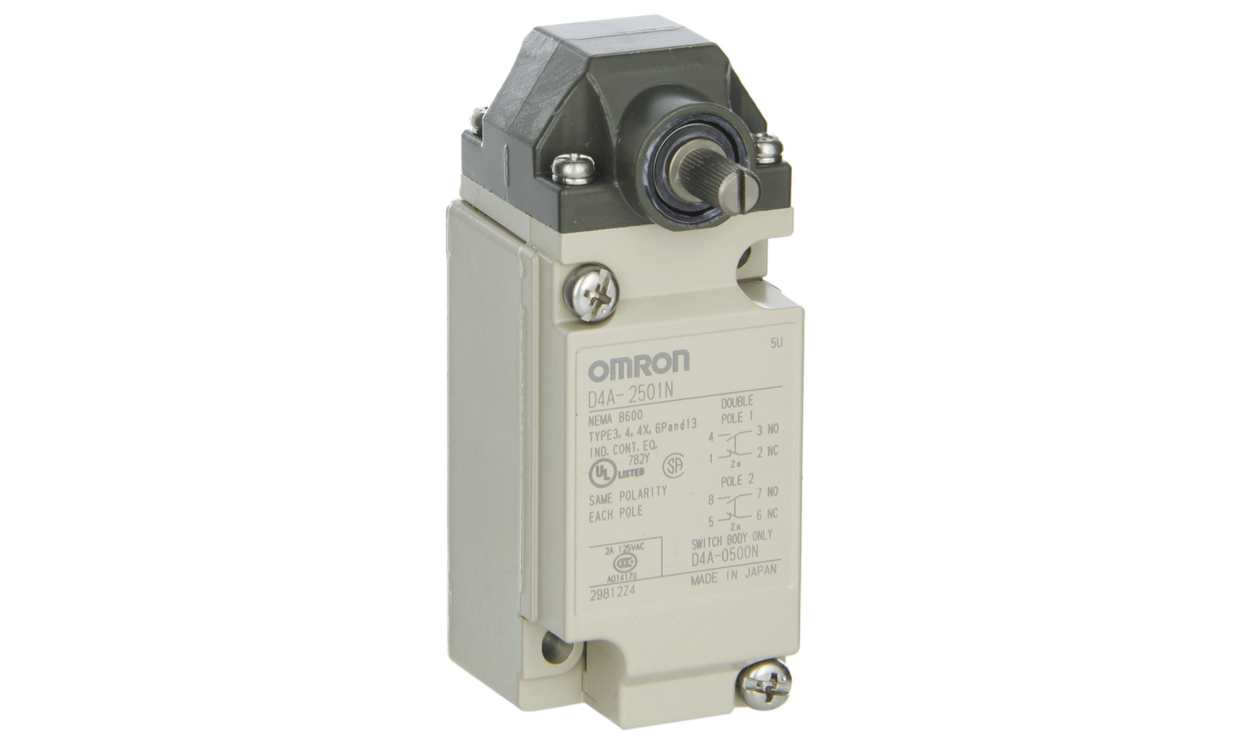

OMRON D4A-2501N | Roller Lever Limit Switch | DPDT, 2NO/2NC, 5 A, IP67
The OMRON D4A-2501N is a DPDT roller lever limit switch with 2NO/2NC snap-action contacts, rated 5 A at up to 600 V AC or 250 V DC. It has IP67 sealing and a G1/2 connection. Refer to the OMRON datasheet for complete specifications.
- Roller lever
- 2NO/2NC, DPDT
- IP67, G1/2
- -40 to +100 °C
- 30,000,000 operations
- 75.5 x 42 x 44 mm
- Detailed Description
- Specifications
- Downloads
D4A- N General Purpose Limit Switch
Wide standard operating temperature range: -40 °C to +100 °C (standard type)
Models with fluoro-rubber available for greater resistance to chemicals
Block mounting method also reduces downtime for maintenance
DPDT, double-break models available for complex operations
Complete limit switch consists of several parts (receptacle, switch Box, head and lever) which must be ordered separately
Standards
| Brand | Omron |
| Actuator Type | Roller Lever |
| IP Rating | IP67 |
| Pole and Throw Configuration | DPDT |
| Normal State Configuration | 2NO/2NC |
| Maximum Current | 5A |
| Maximum AC Voltage | 600V |
| Action Type | Snap Action |
| Length | 75.5 mm (2.97 in) |
| Maximum Operating Temperature | +100 °C (212 °F) |
| Width | 42 mm (1.65 in) |
| Depth | 44 mm (1.73 in) |
| Minimum Operating Temperature | -40 °C (-40 °F) |
| Mechanical Life | 30000000Operations |
| Maximum DC Voltage | 250V |
| Connection Type | G1/2 |
| Mounting Orientation | Back, Front |
