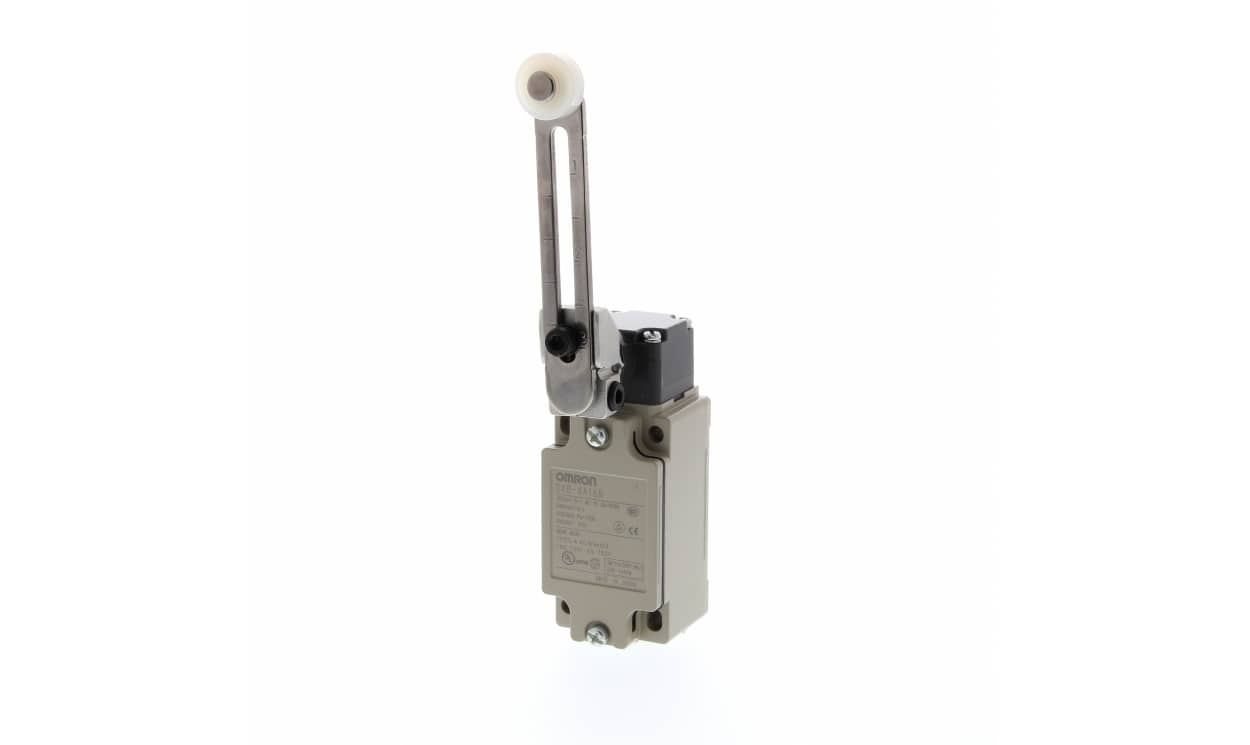

Name: Omron D4B-2116N, Adjustable Roller Lever Limit Switch, 1NC/1NO, IP67, Metal Housing, 400V ac Max, 10A Max
Brand: OMRON
SKU: D4B-2116N
Availability: OutOfStock

Omron D4B-2116N, Adjustable Roller Lever Limit Switch, 1NC/1NO, IP67, Metal Housing, 400V ac Max, 10A Max

Client Protection

Dedicated Support

Client Protection

Dedicated Support

Omron D4B-2116N, Adjustable Roller Lever Limit Switch, 1NC/1NO, IP67, Metal Housing, 400V ac Max, 10A Max

Part Number : D4B-2116N

Availability: Sold out

Detailed Description
Specifications
Downloads

Omron Limit Switch, Adjustable Roller Lever Actuator, IP67 - D4B-2116N

This limit switch enhances safety and reliability in automation applications. Its robust metal housing provides durability, while the adjustable roller lever allows for flexible positioning and effective operation. The device operates with both normally closed (NC) and normally open (NO) contacts, offering versatility for various industrial applications.

Features & Benefits

• IP67 rated for dust and water ingress resistance
• Direct opening mechanism improves safety during faults
• Adjustable operating position allows for custom installation
• Snap action contact ensures quick response times
• Complies with certified standards for reliable operation

Applications

• Suitable for machinery requiring precise limit detection
• Ideal for safety interlocks in automated systems
• Utilised in production lines with moving components
• Commonly found in electrical enclosures for overload protection

How should wiring be connected to ensure proper function?

Use insulated tubes and crimp terminals to securely connect the wiring without exposing bare leads.

Is it suitable for environments with high humidity?

Yes, the IP67 rating confirms its capability to handle high humidity and temporary submersion.

Can adjustments be made to the lever position after installation?

Yes, the lever position can be adjusted easily without specialised tools.

What is the maximum voltage rating it can handle?

This device can operate at a maximum voltage of 400V.

Brand	Omron
Actuator Type	Adjustable Roller Lever
Normal State Configuration	1NC/1NO
IP Rating	IP67
Maximum Current	10A
Housing Material	Metal
Maximum AC Voltage	400V
Action Type	Snap Action
Standards Met	CCC, CE, CSA, UL
