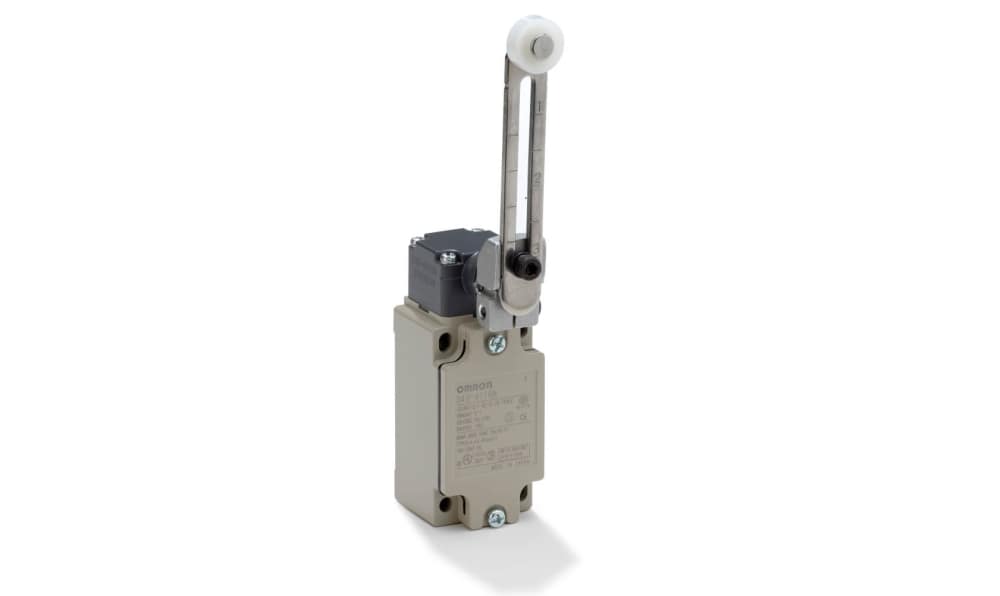

OMRON D4B-4116N | Safety Limit Switch | Adjustable Roller Lever, 1NC/1NO, M20
An adjustable roller lever sets the OMRON D4B-4116N apart: it is a D4B-N series safety limit switch with 1NC/1NO snap-action contacts (DPST), an IP67 metal housing and M20 conduit entry. Full ratings and dimensions are given in the OMRON datasheet.
- Adjustable roller lever
- 1NC/1NO, DPST, snap action
- IP67, metal, M20
- CCC, CE, CSA, UL
- -40 to +80 °C, 30,000,000 cycles
- 99.5 x 40 x 43 mm
- Detailed Description
- Specifications
- Features
- Downloads
OMRON Interlock Switch, 250g Weight, 4kV Impulse Withstand Voltage - D4B-N Series - D4B4116N
Features & Benefits
• Consumes just 2A of current during operation, so it's energy-efficient
• 4kV impulse withstand voltage rating shows that it handles power spikes without damage
• Compact dimensions of 99.5 (L) x 40 (W) x 43mm (D) means it takes up minimal space in your setup
• Resin roller resists wear to support smooth operation
Applications
• Automotive industry
• Oil and gas plants
Is this switch waterproof?
| Brand | Omron |
| Series | D4B-N |
| Actuator Type | Roller Lever |
| IP Rating | IP67 |
| Pole and Throw Configuration | DPST |
| Normal State Configuration | NO/NC |
| Action Type | Snap Action |
| Housing Material | Metal |
| Length | 99.5 mm (3.92 in) |
| Maximum Operating Temperature | +80 °C (176 °F) |
| Width | 40 mm (1.57 in) |
| Depth | 43 mm (1.69 in) |
| Minimum Operating Temperature | -40 °C (-40 °F) |
| Mechanical Life | 30000000Cycles |
| Connection Type | M20 |
| Standards Met | CCC, CE, CSA, UL |
Safety Limit switch, adjustment roller lever, 1NC/1NO (snap-action), M20 conduit
