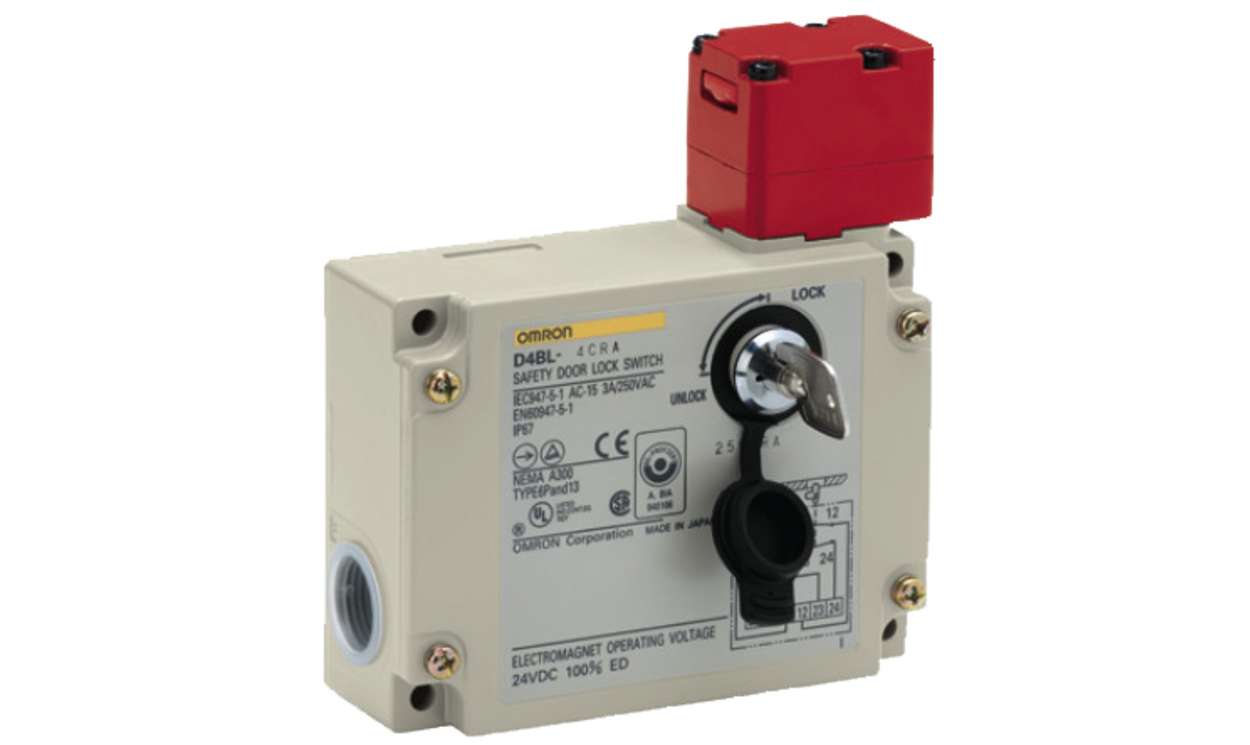

OMRON D4BL-2DRA | D4BL Series Solenoid Interlock Switch | Power to Unlock, 24 V DC

Name: OMRON D4BL-2DRA | D4BL Series Solenoid Interlock Switch | Power to Unlock, 24 V DC
Brand: OMRON
SKU: D4BL-2DRA
Availability: OutOfStock

Part Number : D4BL-2DRA

OMRON's D4BL-2DRA solenoid interlock switch belongs to the D4BL series and is a power to unlock design running on 24 V DC. Features of the D4BL-2DRA include a metal housing and IP67 protection.

Lock mode: power to unlock
Supply voltage: 24 V DC
Safety contacts: 2NC
Auxiliary contacts: 1NC
Conduit entry: 1/2 in NPT
Housing: metal, IP67

Availability: in stock

Detailed Description
Specifications
Downloads

Omron D4BL Series Solenoid Interlock Switch, Power to Unlock, IP67 - D4BL-2DRA

This solenoid interlock switch is ideal for enhancing safety in industrial applications. Designed by Omron, this robust device features a durable metal housing and offers a compact design with dimensions of 116.5mm in length, 123.5mm in width, and a depth of 46.3mm. Operating at a supply voltage of 24V DC, it has been engineered to ensure secure machine operations and compliance with various industrial standards.

Features & Benefits

• Offers 2NC safety contacts for reliable locking mechanisms
• IP67 rating protects against dust and water ingress
• Mechanical lock engages automatically with operation key insertion
• Auxiliary release key facilitates easy maintenance and emergency access
• Direct opening mechanism ensures immediate switch activation upon cover opening
• Horisontal and vertical conduit entry options for flexible installation

Applications

• Used in machine safeguarding to prevent accidental access
• Suitable for environments where robust safety measures are essential
• Utilised in systems requiring secure locking and quick release functions
• Designed for integration with safety control circuits

What safety standards does this switch comply with?

It meets various rigorous safety standards, including the EN 60947-5-1 compliance, ensuring it is suitable for industrial applications requiring high safety levels.

How does the lock release function work during a power failure?

In the event of a power failure, the auxiliary release key can be used to mechanically unlock the device, providing a fail-safe option for emergency situations.

Can this switch be installed in different orientations?

Yes, the design allows the head to be adjusted for insertion from four different directions, enhancing installation flexibility in various setups.

What is the significance of the IP67 rating?

The IP67 rating indicates that the switch is dust-tight and can withstand immersion in water up to 1 metre, ensuring reliable operation in harsh environments.

What types of contact arrangements does it support?

This model supports a 2NC contact arrangement, facilitating secure safety circuit functions crucial for industrial applications.

Brand	Omron
Power to Lock / Unlock	Power to Unlock
Supply Voltage	24V dc
Series	D4BL
Safety Contacts	2NC
Conduit Entry	1/2 in NPT
Auxiliary Contacts	1NC
Housing Material	Metal
IP Rating	IP67
Maximum AC Voltage	300V
Width	123.5mm
Length	116.5mm
Depth	46.3mm

OMRON D4BL-2DRA | D4BL Series Solenoid Interlock Switch | Power to Unlock, 24 V DC

DOWNLOAD CATALOG

D4BL-2DRA Machine Guarding and Safety Range Overview 0900766b8145a8b1

D4BL-2DRA Guide - Safety Solution A700000013017597
