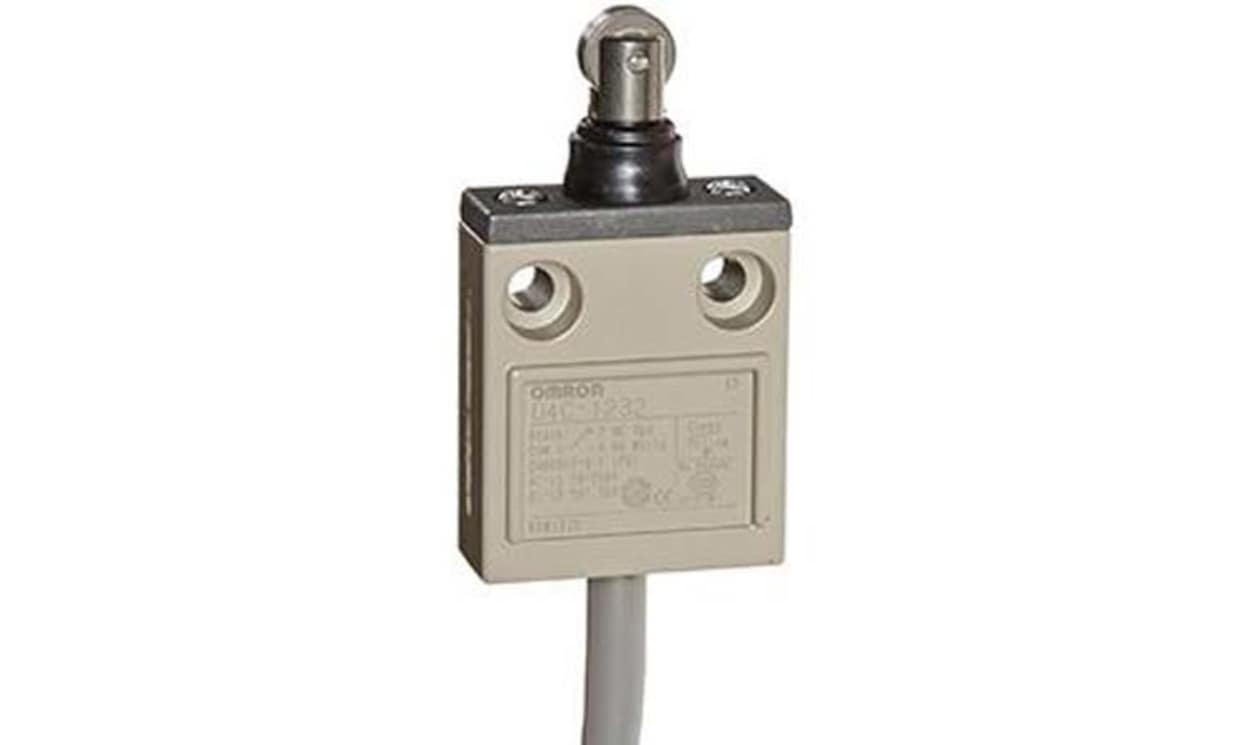

OMRON D4C-4232 | Roller Plunger Limit Switch | SPDT, 100 mA, 125 V AC
The OMRON D4C-4232 is a D4C series roller plunger limit switch for low currents: its SPDT snap-action NO/NC contacts are rated 100 mA, 125 V AC and 30 V DC maximum. It has a 17.65 N operating force and cable connection.
- Roller plunger, 17.65 N
- 100 mA; 125 V AC / 30 V DC max
- IP67, cable connection
- CCC, CE, CSA, UL
- -10 to +70 °C, 10,000,000 operations
- 40 x 16 x 71.8 mm, front mounting
- Detailed Description
- Specifications
Omron Series D4C Limit Switch, 40mm Length, 100mA Maximum Current - D4C-4232
Features & Benefits
• Designed to operate in extreme temperatures from -10°C to +70°C
• Triple-sealed construction protecting against dust and moisture
• Snap action mechanism ensuring rapid and repeatable switching
• Available with cable connection options for flexibility in setup
Applications
• Suitable for packaging machinery requiring precise movements
• Used in conveyor systems for reliable operation and monitoring
• Ideal for use in robotics to detect endpoints and triggers
• Can be integrated into safety systems to prevent hazards
How does the snap action mechanism enhance performance in demanding environments?
What type of maintenance is recommended for optimal performance?
Can it be used in environments with high humidity and potential water exposure?
What factors should be considered when selecting a limit switch for specific applications?
| Brand | Omron |
| Series | D4C |
| Actuator Type | Roller Plunger |
| IP Rating | IP67 |
| Pole and Throw Configuration | SPDT |
| Normal State Configuration | NO/NC |
| Maximum Current | 100mA |
| Maximum AC Voltage | 125V |
| Action Type | Snap Action |
| Length | 40 mm (1.57 in) |
| Maximum Operating Temperature | +70 °C (158 °F) |
| Width | 16 mm (0.630 in) |
| Depth | 71.8 mm (2.83 in) |
| Minimum Operating Temperature | -10 °C (14 °F) |
| Mechanical Life | 10000000Operations |
| Maximum DC Voltage | 30V |
| Connection Type | Cable |
| Standards Met | CCC, CE, CSA, UL |
| Mounting Orientation | Front |
| Operating Force | 17.65 N |
