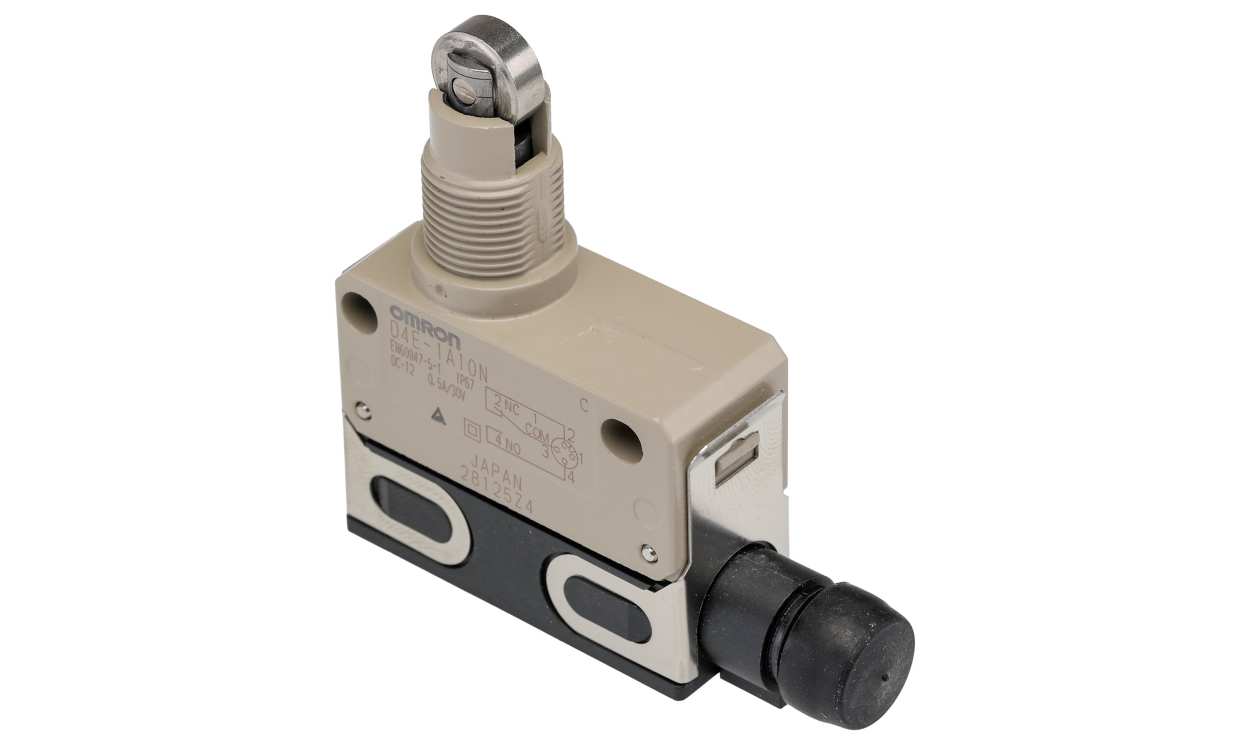

Name: Omron D4E-1A10N, D4E Series Roller Plunger Limit Switch, NO/NC, IP67, SPDT, Zinc Housing, 125V ac ac Max, 5A Max
Brand: OMRON
SKU: D4E-1A10N
Availability: OutOfStock

Omron D4E-1A10N, D4E Series Roller Plunger Limit Switch, NO/NC, IP67, SPDT, Zinc Housing, 125V ac ac Max, 5A Max

Client Protection

Dedicated Support

Client Protection

Dedicated Support

Omron D4E-1A10N, D4E Series Roller Plunger Limit Switch, NO/NC, IP67, SPDT, Zinc Housing, 125V ac ac Max, 5A Max

Part Number : D4E-1A10N

Availability: Sold out

Detailed Description
Specifications
Downloads

Omron D4E Series Limit Switch, 5A Maximum Current, SPDT Pole and Throw Configuration - D4E-1A10N

This limit switch is a compact and robust device designed for precision automation. Featuring a roller plunger design, the switch operates with a SPDT configuration, providing effective control in various applications. With IP67 ingress protection, it is highly resistant to dust and moisture. The switch supports a maximum current of 5A and is constructed with a durable zinc housing, ensuring long-lasting performance even in challenging environments.

Features & Benefits

• Designed for snap action, ensuring quick response times
• IP67 rating provides excellent protection against dust and moisture
• High-temperature operating range from -10°C to +80°C
• Mechanical life expectancy of 10 million cycles enhances durability
• Connector types available for versatile installation options
• Operating force of 11.77N promotes reliable switching performance

Applications

• Ideal for automation systems requiring exact position feedback
• Utilised in manufacturing lines to control machinery operation
• Employed in packaging equipment for accurate cycle control
• Suitable for conveyors needing precise end-of-travel detection

What is the significance of the IP67 rating for this device?

The IP67 rating indicates complete protection against dust ingress and the ability to withstand immersion in water up to 1 metre for up to 30 minutes, making it suitable for harsh environmental conditions.

How does the mechanical life of 10 million cycles benefit users?

A mechanical life of 10 million cycles reduces the frequency of replacements, minimising maintenance costs and downtime in automated systems, and ensuring consistent performance over time.

What types of loads can it handle effectively?

This device can handle non-inductive loads up to 5A at 125VAC and 0.5A at 250VDC, making it versatile for various applications requiring reliable switching under different conditions.

What installation options are available for this switch?

The switch offers multiple connector types, including screw terminals and pre-wired configurations, facilitating ease of integration into diverse systems and setups.

Brand	Omron
Actuator Type	Roller Plunger
Pole and Throw Configuration	SPDT
Normal State Configuration	NO/NC
IP Rating	IP67
Maximum Current	5A
Housing Material	Zinc
Maximum AC Voltage	125V ac
Series	D4E
Action Type	Snap Action
Maximum Operating Temperature	+80°C
Standards Met	CSA, UL
Minimum Operating Temperature	-10°C
Mechanical Life	10000000Cycles
Operating Force	11.77 N
