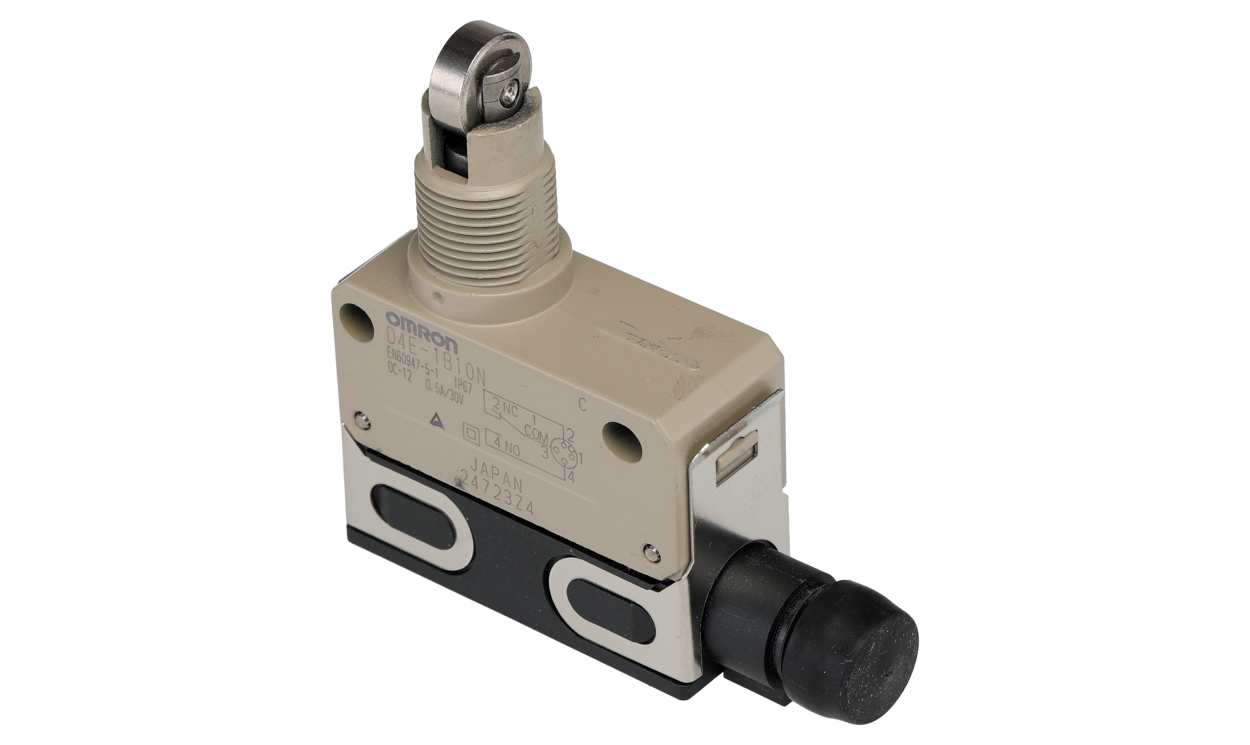

OMRON D4E-1B10N | Roller Plunger Limit Switch | SPDT, 1 A, 125 V AC, Zinc
Rated 1 A at 125 V AC, the OMRON D4E-1B10N is a roller plunger limit switch with SPDT snap-action NO/NC contacts in an IP67 zinc housing. The OMRON datasheet gives the complete technical data for this part.
- 1 A, 125 V AC max
- Roller plunger
- SPDT, NO/NC, snap action
- IP67
- Zinc housing
- Detailed Description
- Specifications
- Downloads
Omron D4E Series Limit Switch, SPDT Pole Configuration, Roller Plunger Actuator Type - D4E-1B10N
Features & Benefits
• Snap action mechanism allows for quick and reliable switching
• Designed for maximum operating force of 11.77N, providing precise actuation
• Simplified installation is achieved with a one-touch connector to reduce downtime
• Thermally rated for extreme conditions, ensuring performance consistency
Applications
• Implemented in safety interlocks for machinery
• Suitable for circuit control in automated equipment
• Utilised in robotic arms for accurate movement feedback
What are the advantages of using a roller plunger actuator in this switch?
How does the specified IP67 rating impact its performance in outdoor environments?
What safety precautions should I consider when installing this switch?
| Brand | Omron |
| Actuator Type | Roller Plunger |
| IP Rating | IP67 |
| Pole and Throw Configuration | SPDT |
| Normal State Configuration | NO/NC |
| Maximum Current | 1A |
| Maximum AC Voltage | 125V ac |
| Action Type | Snap Action |
| Housing Material | Zinc |
