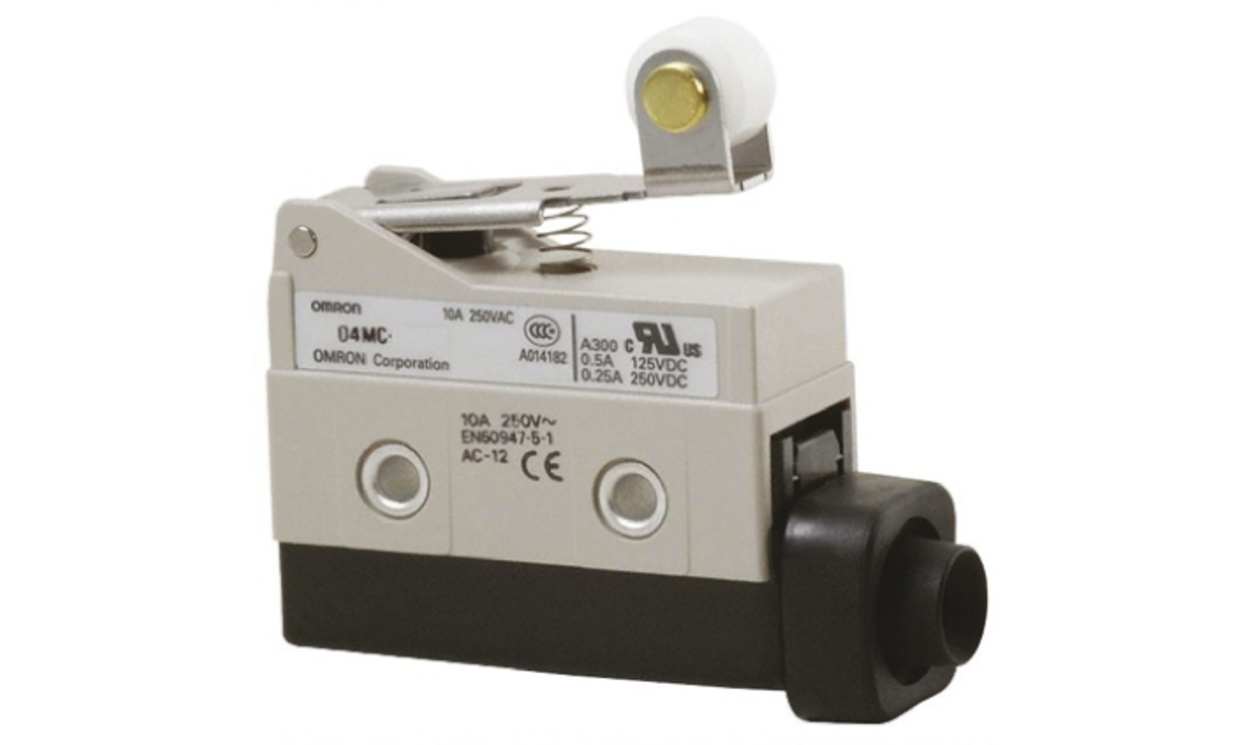

OMRON D4MC-1020 | Lever Limit Switch | SPDT, AC 3 A, 480 V AC, 2.55 N
The OMRON D4MC-1020 is a D4MC series lever limit switch with a 2.55 N operating force and SPDT snap-action NO/NC contacts. Ratings are AC 3 A and DC 250 mA, with 480 V AC and 250 V DC maximums.
- Lever, 2.55 N operating force
- AC 3 A, DC 250 mA
- 480 V AC / 250 V DC max
- IP67, screw connection, CE
- -10 to +80 °C, 10,000,000 operations
- 70 x 48.5 x 21.7 mm, side mounting
- Detailed Description
- Specifications
- Downloads
Omron D4MC Series Limit Switch, NO/NC Normal State Configuration, AC 3A/DC 250mA Maximum Current - D4MC-1020
Features & Benefits
• SPDT configuration offers versatile circuit design options
• IP67 rating provides protection against dust and water ingress
• Operates effectively in temperature ranges from -10 to +80°C
• Long mechanical life of up to 10 million operations
• Connection via screw terminals allows for easy and secure wiring
Applications
• Automated systems requiring precise actuation
• Conveyor systems where position feedback is essential
• Safety mechanisms to ensure proper machine operation
What is the maximum voltage rating for this component?
How can I ensure successful installation in my system?
What types of environments is this suitable for?
| Brand | Omron |
| Series | D4MC |
| Actuator Type | Lever |
| IP Rating | IP67 |
| Pole and Throw Configuration | SPDT |
| Normal State Configuration | NO/NC |
| Maximum Current | ac 3 A, dc 250mA |
| Maximum AC Voltage | 480V |
| Action Type | Snap Action |
| Length | 70 mm (2.76 in) |
| Maximum Operating Temperature | +80 °C (176 °F) |
| Width | 48.5 mm (1.91 in) |
| Depth | 21.7 mm (0.854 in) |
| Minimum Operating Temperature | -10 °C (14 °F) |
| Mechanical Life | 10000000Operations |
| Maximum DC Voltage | 250V |
| Connection Type | Screw |
| Standards Met | CE |
| Mounting Orientation | Side |
| Operating Force | 2.55 N |
