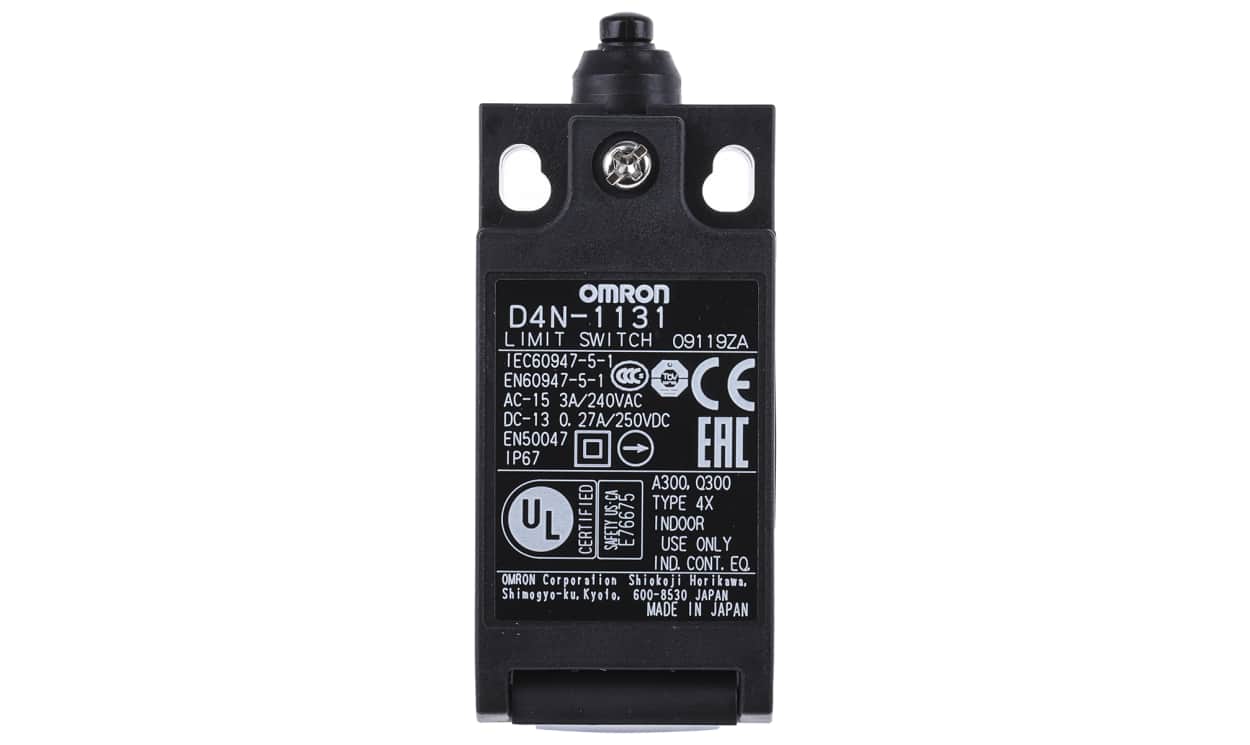

OMRON D4N-1131 | Top Plunger Limit Switch | 1NC/1NO, Pg13.5, IP67
The OMRON D4N-1131 is a D4N series limit switch with a top plunger and 1NC/1NO snap-action contacts. It has an IP67 plastic housing and one Pg13.5 conduit. The OMRON datasheet gives the complete technical data for this part.
- Top plunger
- 1NC/1NO, snap action
- IP67, plastic housing
- Pg13.5 (1 conduit), CE
- -30 to +70 °C, 15,000,000 cycles
- 73.2 x 31 x 30 mm
- Detailed Description
- Specifications
- Features
- Downloads

Omron D4N Series Interlock Switch, Plunger Actuator, 1NC / 1NO - D4N-1131
Features & Benefits
• SPDT configuration supports versatile circuit connections
• Snap action design enables quick response times
Applications
• Installed in safety circuits for metal processing
• Integrated into transport systems for accurate monitoring
• Utilised in robotic applications for reliable feedback
• Employed in conveyor systems for position detection
Can it operate in high temperatures?
Will it withstand hazardous environments?
Can it be used with both standard and microloads?
| Brand | Omron |
| Series | D4N |
| Actuator Type | Plunger |
| IP Rating | IP67 |
| Pole and Throw Configuration | SPDT |
| Normal State Configuration | 1NC/1NO |
| Action Type | Snap Action |
| Housing Material | Plastic |
| Length | 73.2 mm (2.88 in) |
| Maximum Operating Temperature | '+70 °C |
| Width | 31 mm (1.22 in) |
| Depth | 30 mm (1.18 in) |
| Minimum Operating Temperature | -30 °C (-22 °F) |
| Mechanical Life | 15000000Cycles |
| Connection Type | PG13.5 |
| Standards Met | CE |
Limit switch, Top plunger, 1NC/1NO (snap-action), 1NC/1NO (snap-action), Pg13.5 (1-conduit)
