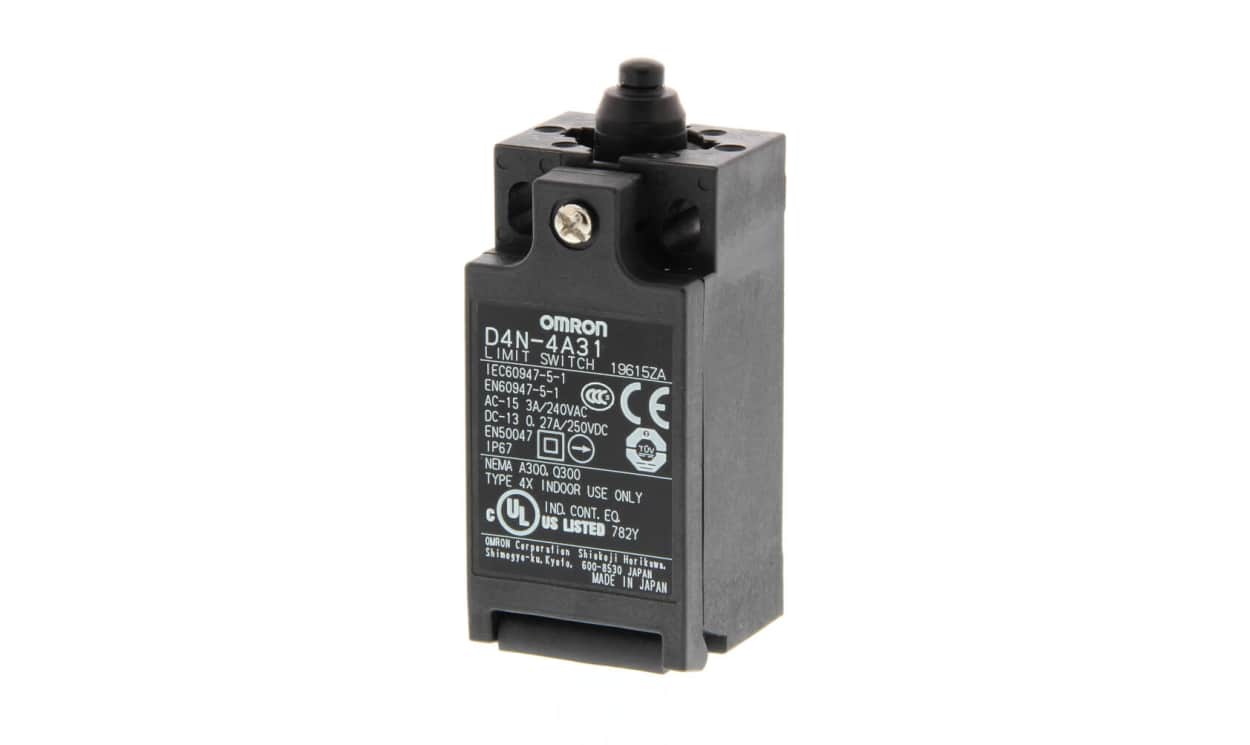

OMRON D4N4A31 | D4N Plunger Limit Switch | NO/NC, DPST, M20, Top Mount
The OMRON D4N4A31 is a D4N series plunger limit switch with NO/NC contacts. The D4N4A31 is also listed with an IP67 rating and an M20 connection.
- NO/NC contact configuration; DPST pole and throw
- IP67 enclosure rating
- M20 connection
- Dimensions: 31 mm × 31.5 mm × 73.2 mm (L × W × D)
- Mechanical life: 15,000,000 operations
- Mounting: top
- Detailed Description
- Specifications
- Downloads
D4N Series Safety Limit Switch PG13.5
Contact rating 10A continuous
Head may be located in choice of 4 positions
IP67 protection rating
PG13.5 conduit entry
Ambient operating temperature -30 to +70°C
Conforms to Machinery Directive and Low Voltage Directive
Standards
| Brand | Omron |
| Series | D4N |
| Actuator Type | Plunger |
| IP Rating | IP67 |
| Pole and Throw Configuration | DPST |
| Normal State Configuration | NO/NC |
| Length | 31 mm (1.22 in) |
| Width | 31.5 mm (1.24 in) |
| Depth | 73.2 mm (2.88 in) |
| Mechanical Life | 15000000Operations |
| Connection Type | M20 |
| Mounting Orientation | Top |
