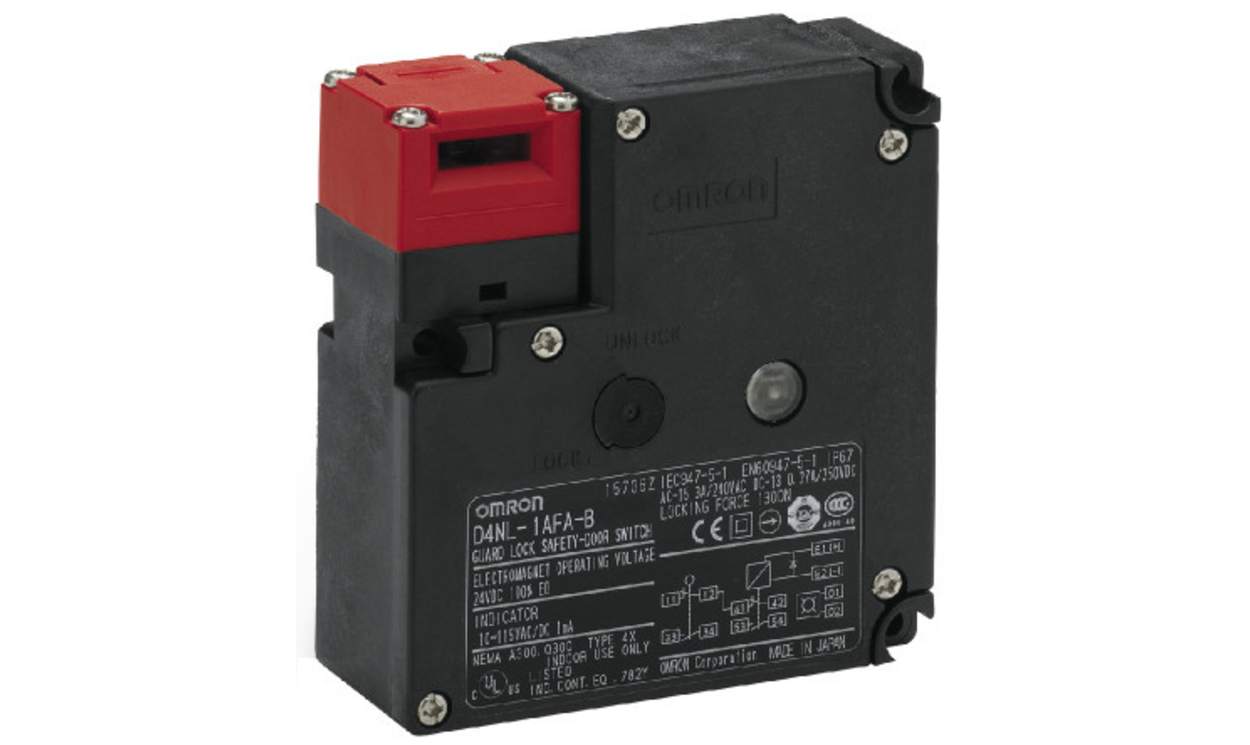

OMRON D4NL-2EFA-B | D4NL Series Solenoid Interlock Switch | Power to Unlock, 24 V DC, 2NC/1NO + 1NC/1NO

Name: OMRON D4NL-2EFA-B | D4NL Series Solenoid Interlock Switch | Power to Unlock, 24 V DC, 2NC/1NO + 1NC/1NO
Brand: OMRON
SKU: D4NL-2EFA-B
Availability: OutOfStock

Part Number : D4NL-2EFA-B

Configured as power to unlock, the OMRON D4NL-2EFA-B is a solenoid interlock switch from the D4NL series rated for a 24 V DC supply. For the D4NL-2EFA-B, the listing specifies a 2NC/1NO + 1NC/1NO contact arrangement, a plastic housing and IP67 protection.

Lock mode: power to unlock
Supply voltage: 24 V DC
Contact configuration: 2NC/1NO + 1NC/1NO
Safety contacts: NO/2NC
Auxiliary contacts: 1NO/1NC
Conduit entry: G1/2

Availability: in stock

Detailed Description
Specifications
Downloads

D4NL Safety Guard-lock Door Switch

A lead free, environmentally friendly solenoid interlock switch available with either a solenoid lock/mechanical release mechanism (power to lock) or a mechanical lock/solenoid release mechanism (power to unlock). Sliding, hinged and removable guarding devices such as grids, hoods or doors can be monitored and locked in place with these safety guard lock switches.

Safety door switch with either electromagnetic lock or unlock mechanism
Four head mounting directions possible
Four built-in contacts
Strong key holding force, 1300 N
For standard loads and micro loads
IP67 rating (applies to switch only, key hole is IP00)
Contains no harmful substances, such as lead or cadmium, reducing the burden on the environment

Note

Actuators sold separately.
Stock nos. 746-7289 and 746-7132 have a special release key included.

Standards

IEC/EN60947-5-1

Approvals

cULus, TUV, CE, CCC

Brand	Omron
Power to Lock / Unlock	Power to Unlock
Supply Voltage	24V dc
Series	D4NL
Range	D4NL
Safety Contacts	NO/2NC
Normal State Configuration	2NC/1NO + 1NC/1NO
Conduit Entry	G1/2
Auxiliary Contacts	1NO/1NC
Housing Material	Plastic
IP Rating	IP67
Depth	39mm
Length	39mm
Width	179.5mm
