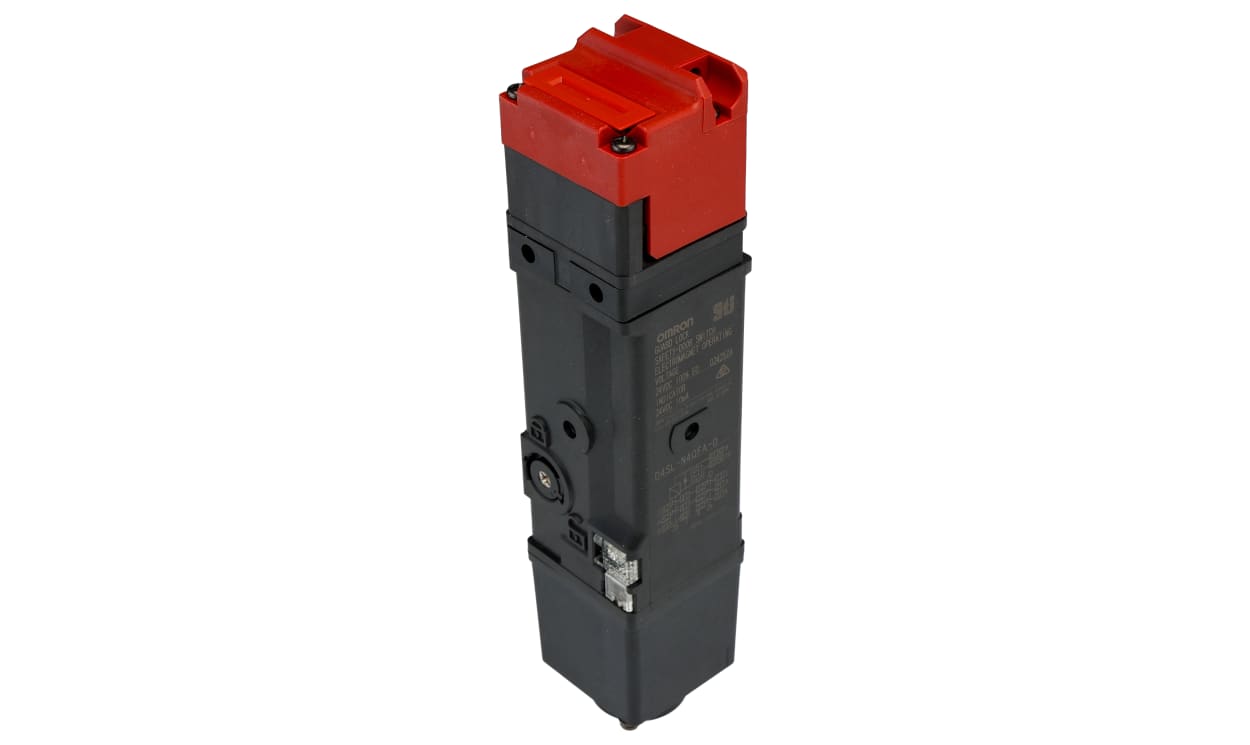

OMRON D4SL-N4QFA-D | D4SL-N Solenoid Interlock Switch | Power to Unlock, 24 V DC, 3NC Safety, 2NC/1NO Aux

Name: OMRON D4SL-N4QFA-D | D4SL-N Solenoid Interlock Switch | Power to Unlock, 24 V DC, 3NC Safety, 2NC/1NO Aux
Brand: OMRON
SKU: D4SL-N4QFA-D
Availability: OutOfStock

Part Number : D4SL-N4QFA-D

Featuring 3NC safety contacts plus 2NC/1NO auxiliary contacts, a 24 V DC supply and power-to-unlock operation, the OMRON D4SL-N4QFA-D is a D4SL-N solenoid interlock switch. Physical details include an M20 conduit entry, a metal housing rated IP67 and dimensions of 39 x 179.5 x 39 mm (L x W x D). The actuator is not included.

Locking: power to unlock
Supply voltage: 24 V DC
Safety contacts: 3NC
Auxiliary contacts: 2NC/1NO
Conduit entry: M20
Protection: IP67

Availability: in stock

Detailed Description
Specifications
Downloads

Omron D4SL-N Series Solenoid Interlock Switch, 24V DC Supply Voltage, 3NC Safety Contacts - D4SL-N4QFA-D

This solenoid interlock switch is a robust safety device designed for use in various industrial applications. It features a metal housing and an IP67 rating, ensuring protection against dust and water ingress. Compactly built with dimensions of 39mm in depth, 39mm in length, and 179.5mm in width, it incorporates three normally closed (3NC) safety contacts, making it suitable for critical safety functions in automated environments.

Features & Benefits

• Power to unlock feature enhances operational flexibility in control systems
• IP67 rating ensures high-level dust and water resistance
• Metal housing provides durability in harsh industrial conditions
• Supports 24V DC operation for compatibility with various systems
• Multiple conduit entry options simplify integration into existing setups
• Directly connects to controllers for enhanced system responsiveness

Applications

• Utilised in automation systems for safety monitoring
• Suitable for safeguarding access to machinery and hazardous areas
• Used in industrial environments requiring reliable door locking mechanisms
• Ideal for that require robust interlocking capabilities

What types of wiring methods can be used with this device?

The switch supports two types of wiring methods that simplify installation with one-touch attachment and removal. This allows for reduced wiring time and flexibility in configuration.

How does the lockout feature work in preventing accidental operation?

The lockout key is designed to prevent workers from accidentally becoming trapped inside hazardous areas, ensuring safety during maintenance or operation.

What are the operating conditions for this switch?

The product operates effectively in ambient temperatures ranging from −10 to 55 °C and can handle humidity levels up to 95%, making it suitable for diverse working environments.

Brand	Omron
Power to Lock / Unlock	Power to Unlock
Supply Voltage	24V dc
Series	D4SL-N
Actuator Included	No
Safety Contacts	3NC
Conduit Entry	M20
Auxiliary Contacts	2NC/1NO
Housing Material	Metal
IP Rating	IP67
Length	39mm
Depth	39mm
Width	179.5mm

OMRON D4SL-N4QFA-D | D4SL-N Solenoid Interlock Switch | Power to Unlock, 24 V DC, 3NC Safety, 2NC/1NO Aux
