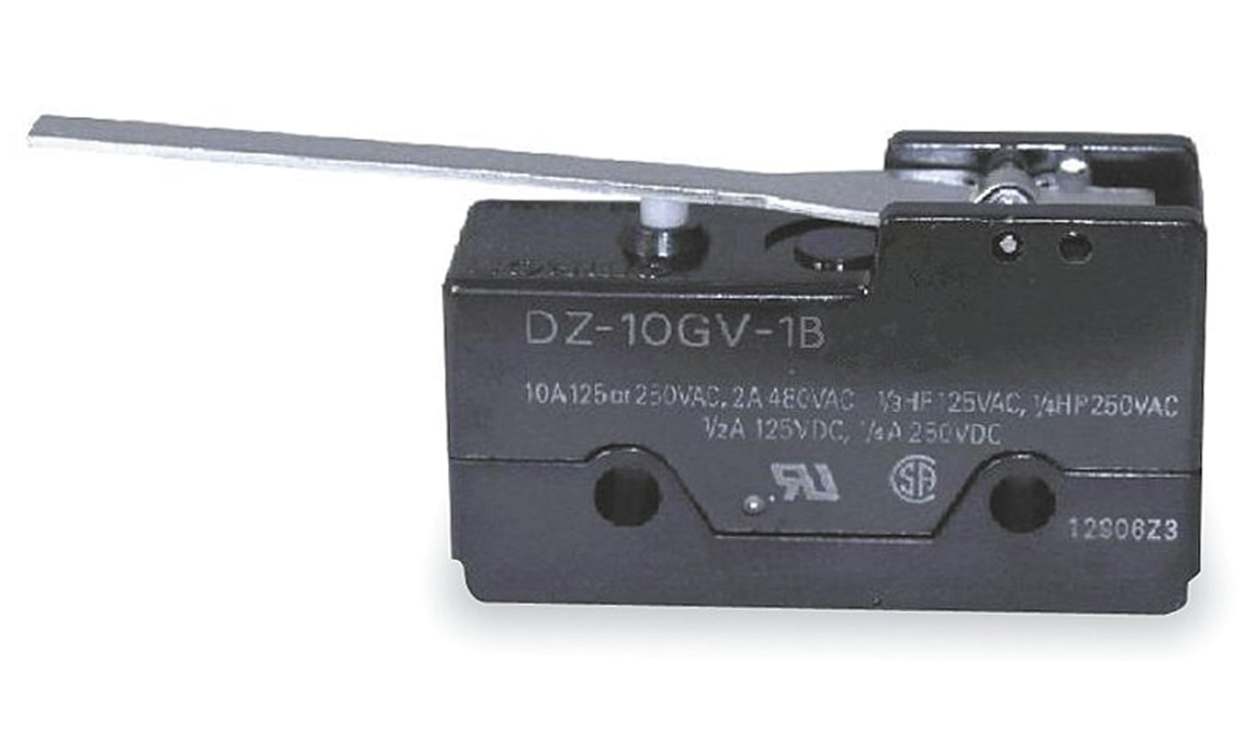

OMRON DZ-10GV-1B | DZ Lever Limit Switch | 2NO/2NC, DPDT, 250 V AC, 10 A
Listed as a DZ series lever limit switch, the OMRON DZ-10GV-1B has 2NO/2NC contacts and is rated 10 A max at 250 V AC. The DZ-10GV-1B has an IP00 rating, screw terminals and an operating range of -25 to +85 °C.
- 2NO/2NC contact configuration; DPDT pole and throw, snap-action operation
- Maximum current: 10 A; maximum voltage: 250 V AC / 250 V DC
- IP00 enclosure rating; screw terminals
- Dimensions: 49.2 mm × 17.45 mm × 27.9 mm (L × W × D)
- Operating temperature: -25 to +85 °C
- Mechanical life: 1,000,000 operations; operating force: 1.96 N
- Detailed Description
- Specifications
- Downloads
Omron Series DZ Limit Switch, DPDT Contact Configuration, 2NO/2NC Normal State Configuration - DZ-10GV-1B
Features & Benefits
• Handles high current loads up to 10A, ensuring compatibility with powerful systems
• DPDT configuration allows for two independent circuit management
• Snap-action technology delivers fast and precise switching
• Designed for a broad temperature range of -25°C to +85°C
• Screw connection type simplifies installation and maintenance
Applications
• Ideal for automation in electrical and mechanical systems
• Suited for requiring high current switching
• Utilised in circuits operating at different voltages for enhanced functionality
What is the mechanical life of the device, and how does it ensure durability?
What installation requirements are necessary for optimal performance?
How does the switching speed impact the operation of this switch?
What electrical specifications should be considered when utilising this device?
| Brand | Omron |
| Series | DZ |
| Actuator Type | Lever |
| IP Rating | IP00 |
| Pole and Throw Configuration | DPDT |
| Normal State Configuration | 2NO/2NC |
| Maximum Current | 10A |
| Maximum AC Voltage | 250V |
| Action Type | Snap Action |
| Length | 49.2 mm (1.94 in) |
| Maximum Operating Temperature | +85 °C (185 °F) |
| Width | 17.45 mm (0.687 in) |
| Depth | 27.9 mm (1.10 in) |
| Minimum Operating Temperature | -25 °C (-13 °F) |
| Mechanical Life | 1000000Operations |
| Maximum DC Voltage | 250V |
| Connection Type | Screw |
| Mounting Orientation | Screw |
| Operating Force | 1.96 N |
