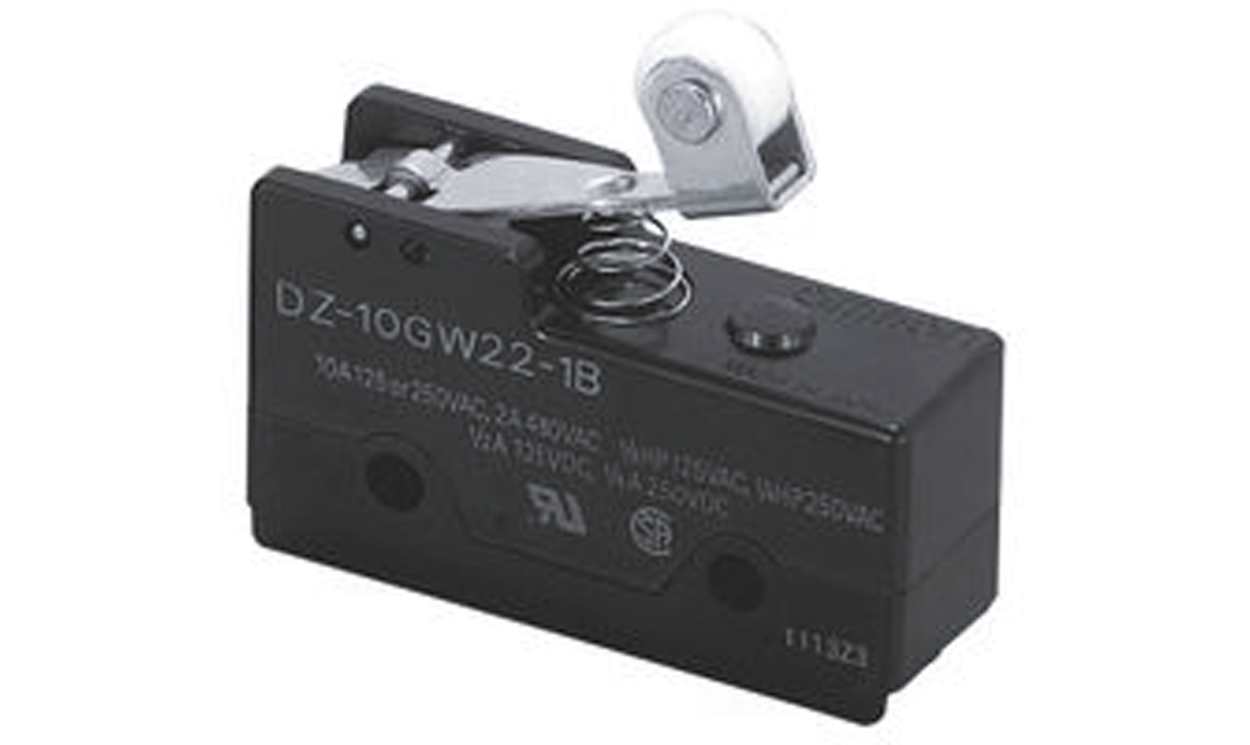

Name: Omron DZ-10GW22-1B6, Lever Limit Switch, 2NO/2NC, IP00, DPDT, 250V ac Max, 10A Max
Brand: OMRON
SKU: DZ-10GW22-1B6
Availability: OutOfStock

Omron DZ-10GW22-1B6, Lever Limit Switch, 2NO/2NC, IP00, DPDT, 250V ac Max, 10A Max

Client Protection

Dedicated Support

Client Protection

Dedicated Support

Omron DZ-10GW22-1B6, Lever Limit Switch, 2NO/2NC, IP00, DPDT, 250V ac Max, 10A Max

Part Number : DZ-10GW22-1B6

Availability: Sold out

Detailed Description
Specifications
Downloads

DZ Special-purpose Basic Switch

The DZ series limit switches have a DPDT basic switch for two independent circuit controls. They incorporates two completely independent built-in switches and are ideal for switching circuits on two different voltages of for controlling two independent circuits. They are also interchangeable with Omron Z basic switches, as both switches are identical in mounting hole dimensions, mounting pitch and pin plunger position.

Contact rated for a wide range of voltages
Contact current rating: 10A at 250 Vac
Operating temperature Range: -25 to +80 °C (with no icing)
Mechanical service life: 1,000,000 operations minimum
Electrical service life: 500,000 operations minimum

Brand	Omron
Actuator Type	Lever
Pole and Throw Configuration	DPDT
Normal State Configuration	2NO/2NC
IP Rating	IP00
Maximum Current	10A
Maximum AC Voltage	250V
Maximum DC Voltage	250V
Connection Type	Screw
Action Type	Snap Action
Length	49.2mm
Minimum Operating Temperature	-25°C
Depth	27.9mm
Width	17.45mm
Maximum Operating Temperature	+85°C
Mounting Orientation	Screw
Mechanical Life	1000000Operations
