Omron E2B-S08LS02-WP-C1 2M, Inductive Threaded Barrel Proximity Sensor, M8, 2 mm Detection, NPN NO, 10 → 30 V dc - generaltechuae

Client Protection

Dedicated Support

Client Protection

Dedicated Support

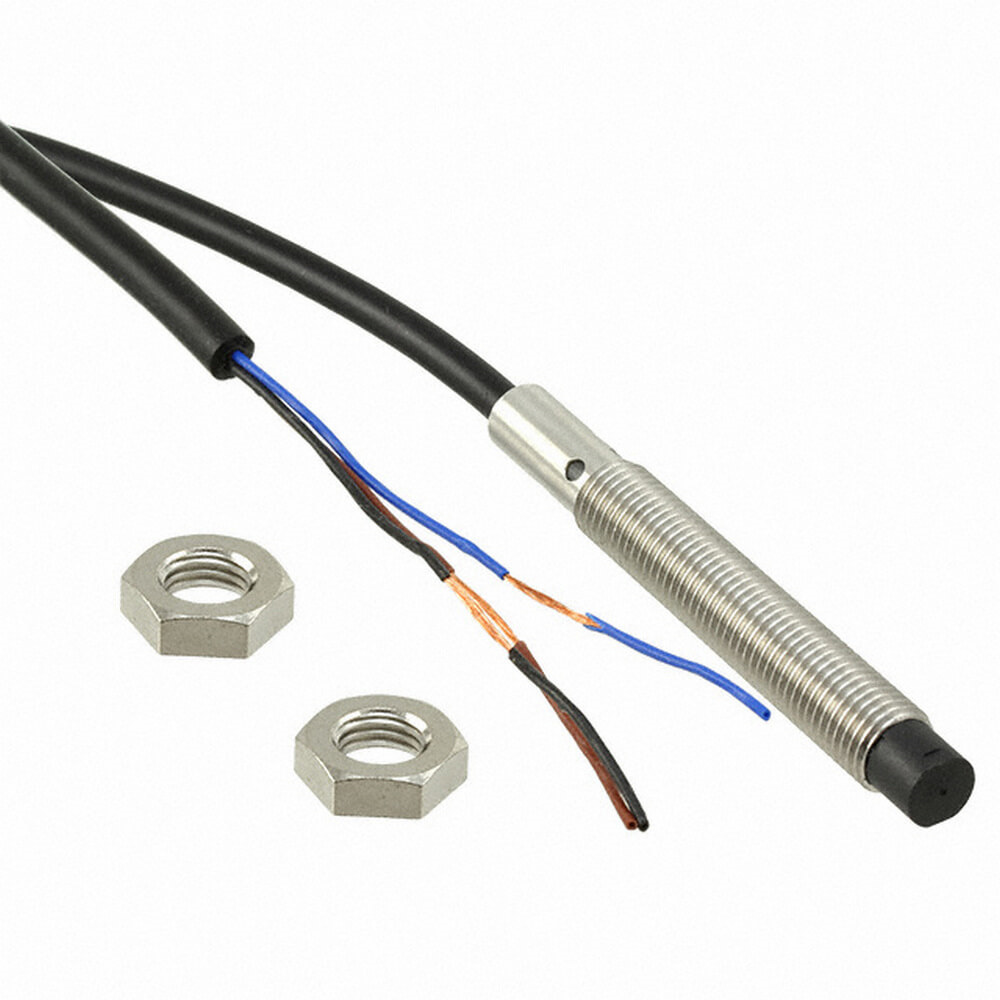

OMRON E2B-S08LS02-WP-C1 2M | Inductive Threaded Barrel Proximity Sensor | M8, 2 mm, NPN NO, 2 m Cable

Name: OMRON E2B-S08LS02-WP-C1 2M | Inductive Threaded Barrel Proximity Sensor | M8, 2 mm, NPN NO, 2 m Cable
Brand: OMRON
SKU: E2B-S08LS02-WP-C1 2M
Availability: OutOfStock

Part Number : E2B-S08LS02-WP-C1 2M

OMRON E2B-S08LS02-WP-C1 2M: M8, 2 mm range, NPN-NO inductive threaded-barrel proximity sensor. Wiring is by pre-wired 2 m cable, with a 10 to 30 V DC supply. It is listed as a LITE model. The product data also gives minimum operating temperature -25 °C and reverse polarity protection.

Type: DC, 3-wire
Mounting: flush, shielded
Switching frequency: 1 kHz
Housing length: 42 mm (long body)
Housing material: stainless steel
Protection rating: IP67

Availability: in stock

Detailed Description
Specifications
Features
Downloads

Omron Series E2B Proximity Sensor, 2mm Detection Range, 2m Cable Length - E2B-S08LS02-WP-C1 2M

This inductive proximity sensor is designed for precise detection applications. With a standard M8 threaded barrel and a detection range of 2mm, this stainless steel proximity sensor features an IP67 rating, making it suitable for both robust and standard environments. The device operates within a wide voltage range of 10 to 30 V DC, ensuring compatibility in various settings.

Features & Benefits

• Features an NPN output for effective operation.
• Equipped with reverse polarity protection for enhanced reliability.
• Flush mount design to facilitate seamless integration into systems.
• Delivers a maximum switching frequency of 1kHz for fast response.
• Compact dimensions ensure versatile positioning options in installations.

Applications

• Utilised for object detection in automated machinery
• Ideal for assembly lines requiring precise positioning
• Used in robotics for enhanced operational accuracy
• Suitable for involving liquid or moisture exposure

What is the maximum cable length available for this sensor?

The sensor is offered with cable lengths of 2m and 5m, allowing flexibility for installation in various settings.

How does the IP67 rating benefit reliability?

The IP67 rating indicates that the sensor is protected against dust and capable of withstanding immersion in water, enhancing its durability in adverse environments.

What maintenance is required to ensure optimal performance?

Regular checks should be conducted for any dislocation, loose wiring, or accumulation of debris around the sensor area to maintain performance.

Can this sensor be used in high-temperature environments?

Yes, it operates effectively within a temperature range of -25°C to +70°C, making it suitable for many industrial applications.

Brand	Omron
Thread Size	M8
Sensor Technology	Inductive
Body Style	Threaded Barrel
Detection Range	2 mm
Output Function	NO
Digital Switching Output Type	NPN
Cable Length	2m
Connection Type	Pre-Cabled
Supply Voltage	10 → 30 V dc
IP Rating	IP67
Length	42mm
Mounting Type	Flush
Width	13mm
Housing Material	Stainless Steel
Maximum DC Voltage	30V
Diameter	5.8 mm
Minimum Operating Temperature	-25°C
Maximum Switching Frequency	1kHz
Reverse Polarity Protection	Yes

Proximity sensor, LITE, inductive, stainless steel, long body, M8, shielded, 2 mm, DC, 3-wire, NPN-NO, 2 m cable

OMRON E2B-S08LS02-WP-C1 2M | Inductive Threaded Barrel Proximity Sensor | M8, 2 mm, NPN NO, 2 m Cable

DOWNLOAD CATALOG

E2B-S08LS02-WP-C1 2M Brochure - Inductive Proximity Sensors A700000013470363

E2B-S08LS02-WP-C1 2M Instruction Sheet - E2B Series A700000013470647
