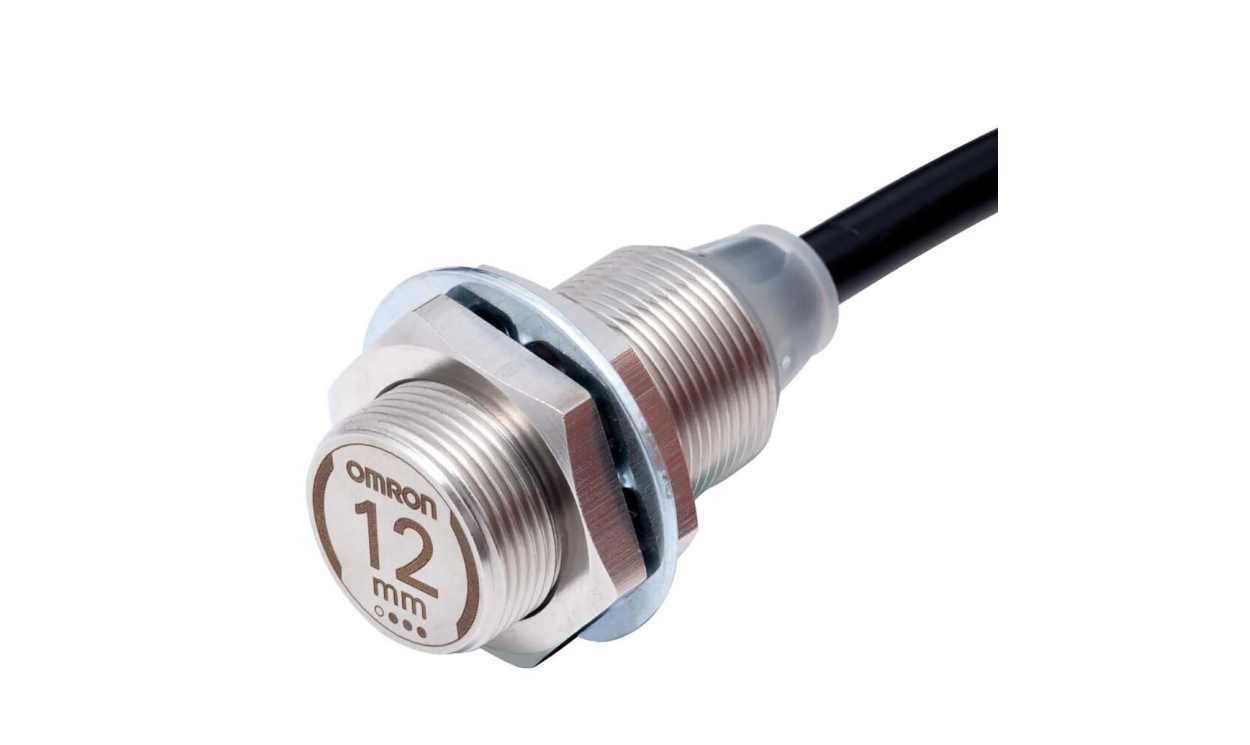

OMRON E2EW-X12C218 2M | M18 Inductive Proximity Sensor | 12 mm Range, NPN NC, 2 m Cable

Name: OMRON E2EW-X12C218 2M | M18 Inductive Proximity Sensor | 12 mm Range, NPN NC, 2 m Cable
Brand: OMRON
SKU: E2EW-X12C218 2M
Availability: OutOfStock

Part Number : E2EW-X12C218 2M

Offering 12 mm detection from an M18 threaded barrel, the OMRON E2EW-X12C218 2M switches an NPN normally closed (NC) output and connects via a 2 m pre-wired cable. The E2EW-X12C218 2M operates from 10 to 30 V DC and measures 30 mm in length, with IP67 protection.

Mounting: flush (shielded)
Works from 0 to +85 °C
Series: E2EW
Load (switching) current 30 mA

Availability: in stock

Detailed Description
Specifications
Downloads

The Omron Electronics E2EW series welding proximity sensors has DC 3 wire model and M30 thread size. The sensor has the full metal body and offers equivalent sensing distances for both iron and aluminium.

Withstands in harsh environments
Clear status visualization
Stable detection

Brand	Omron
Thread Size	M18
Sensor Technology	Inductive
Detection Range	12 mm
Body Style	Threaded Barrel
Output Function	NC
Digital Switching Output Type	NPN
Connection Type	Pre-Cabled
Cable Length	2m
Supply Voltage	10 → 30 V dc
Length	30mm
IP Rating	IP67
Mounting Type	Flush
Maximum DC Voltage	30V
Minimum Operating Temperature	0°C
Series	E2EW
Switching Current	30 mA
Maximum Operating Temperature	+85°C
Shielding	Shielded
Depth	29mm
