OMRON E32-TC200 2M | Through-Beam Fibre Optic Sensor | M4, Up to 1000 mm, 2 m Cable
The OMRON E32-TC200 2M is an M4 through-beam fibre optic sensor using plastic fibre and a red LED light source. Range reaches 1000 mm in high resolution mode, and it is supplied with a 2 m cable.
- 1000 mm high resolution, 760 mm standard, 500 mm high speed, 200 mm super high speed
- M4 head, 14 mm long
- 12 to 24 V DC supply
- IP67, PE housing, CE
- Operating temperature -40 to +70 °C
- Detailed Description
- Specifications
- Features
- Downloads
E32 Series Fibre Optic Sensing Heads
All fibres are 2m long black PE.
Permissable bend radius 25mm min.

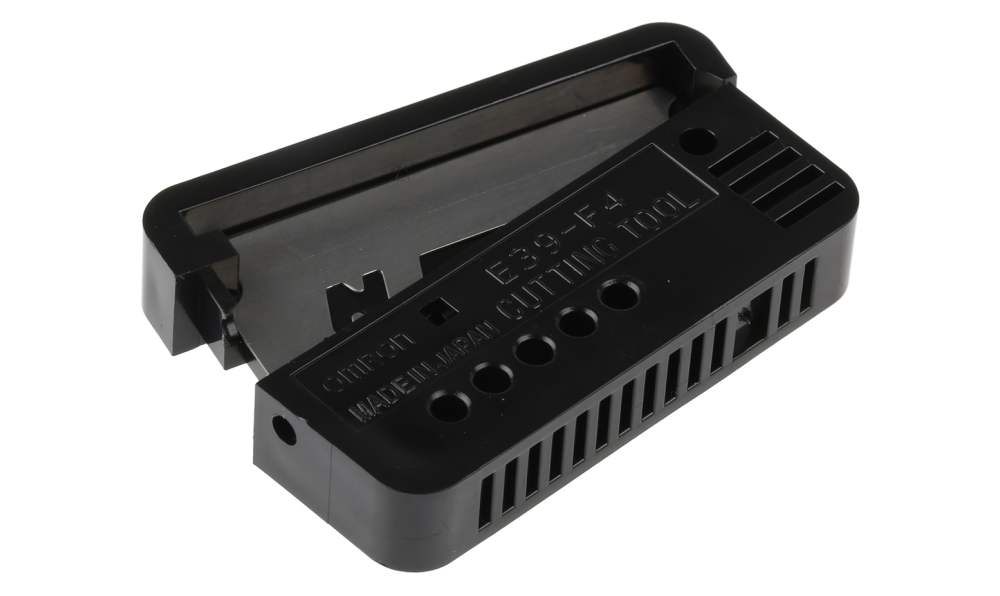

Trim to length with the cutting tool supplied for insertion into amplifier clamping apertures
Operating temperature range -40° to +70° C
Wafer-mapping ultraslim through-beam fiber
OMRON Fibre Optic Sensor, M4 Sensor Head, Through-Beam Sensing - E32 Series - E32TC200
Features & Benefits
• PE jacket resists abrasion and wear to deliver an extended lifespan in harsh industrial settings
• Does its job without a glitch in a broad operating temperature range between -40°C and +70°C
Applications
• FMCG manufacturing
• Automotive industry
• Food and beverage packaging
Is this fibre optic sensor insulated?
| Brand | Omron |
| Detection Range | 1000 (High Resolution Mode) mm, 200 (Super High Speed Mode) mm, 500 (High Speed Mode) mm, 760 (Standard Mode) mm |
| IP Rating | IP67 |
| Terminal Type | Wire Lead |
| Fibre Optic Type | Plastic |
| Supply Voltage | 12 → 24 V dc |
| Light Source | Red LED |
| Housing Material | PE |
| Length | 14 mm (0.551 in) |
| Maximum Operating Temperature | +70 °C (158 °F) |
| Minimum Operating Temperature | -40 °C (-40 °F) |
| Dimensions | 14 x M4 mm |
| Electrical Connection | Cable |
| Standards Met | CE |
Fiber optic sensor, through-beam, M4, 2m cable
