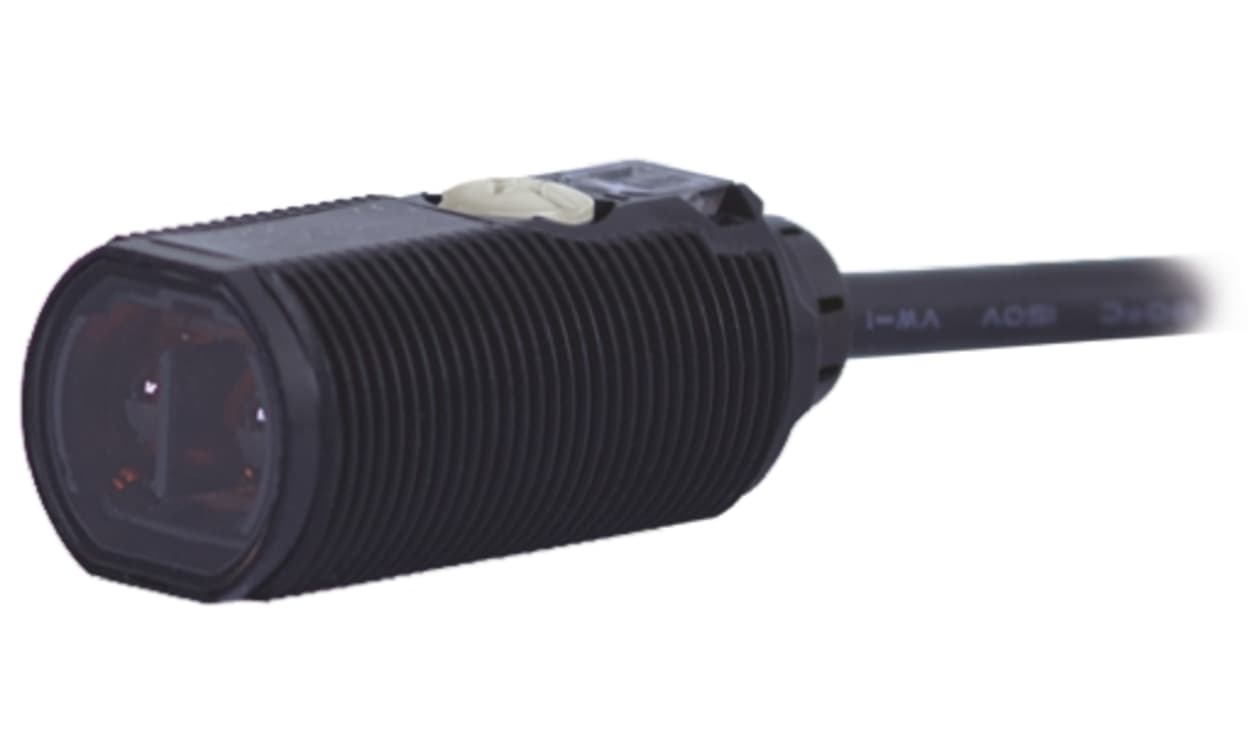

Omron E3FA-BP11 2M, Clear Object Detection Photoelectric Sensor, Barrel Sensor, 100 mm → 500 mm Detection Range

Part Number : E3FA-BP11 2M

Availability: Sold out

Detailed Description
Specifications

E3FA Compact Photoelectric Sensors

The E3FA range of compact photoelectric sensors from Omron are simple and quick to mount and easy to set up due to the large adjuster and high power LED indicator making alignment easier. The status LED indicators of these photoelectric sensors can also be seen easily, from long distances and wide angles. The E3FA series sensors are typically installed in industrial plants such as food and beverage, textiles, food and logistics and are also designed especially for non stop detection for areas where machines never stop.

Cylindrical straight type
Compact design
Plastic housing
Visible LED light for easy alignment
LED indication
Light-ON/Dark-ON selectable by wiring
Reversed power supply polarity protection, output short circuit protection and reversed output polarity protection

E3F2 Series Barrel

Output can be configured by wiring either ’light ON’ or ’dark ON’
Built in amplifier
Short circuit and reverse polarity protection
M18 DIN size cylindrical housing

Brand	Omron
Sensor Style	Barrel
Detection Type	Clear Object Detection
Detection Range	100 mm → 500 mm
Output Type	PNP
Electrical Connection	Pre-Wired Cable
Maximum DC Voltage	30V
Light Source	LED
IP Rating	IP67, IP69K
Maximum Current	25 mA
Response Time	500 μs
Housing Material	ABS
Maximum Operating Temperature	+55°C
Series	E3F
Minimum Operating Temperature	-25°C
