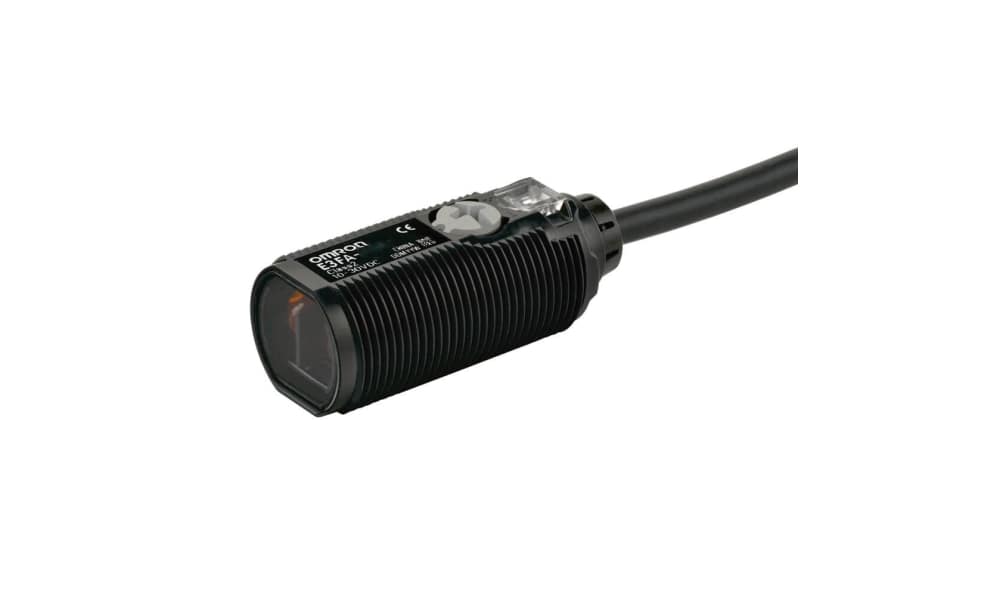

OMRON E3FA-DP12 2M | Diffuse Photoelectric Sensor | M18, 300 mm, PNP
Covering a detection range of 300 mm, the OMRON E3FA-DP12 2M is a barrel diffuse photoelectric sensor with a PNP output. Wiring is by a 4-wire 2 m cable. The 300 mm model is built with an M18 axial plastic body and a red LED with selectable light-ON/dark-ON operation. The E3FA-DP12 2M is rated IP67 and IP69K, operates from -25 to +55 °C and has an ABS housing. Listed electrical data include a 500 μs response time, a 30V DC maximum voltage and 25 mA maximum current.
- 300 mm detection range
- Output: PNP
- 4-wire 2 m cable
- Ingress protection: IP67 and IP69K
- Works from -25 to +55 °C
- Detailed Description
- Specifications
- Features
- Downloads
Omron E3F Series Photoelectric Sensor, 300mm Detection Range, IP67 / IP69K - E3FA-DP12 2M
Features & Benefits
• PNP output facilitates effective signal transmission
• IP67 and IP69K ratings offer protection against dust and water
• Quick response time enhances operational efficiency
• Capable of both light and dark switching applications
• Durable ABS construction endures extreme temperatures
Applications
• Ideal for packaging and sorting machinery
• Utilised in assembly line automation
• Employed in robotic applications for proximity sensing
• Suitable for quality control checks in manufacturing
How can it bet be installed in different environments?
Is it compatible with different automation systems?
What maintenance does it require?
Can it operate in extreme temperatures?
How does it handle signal interference?
Built in amplifier
Short circuit and reverse polarity protection
M18 DIN size cylindrical housing
| Brand | Omron |
| Series | E3F |
| Detection Type | Diffuse |
| Detection Range | 300 mm (11.8 in) |
| Sensor Style | Barrel |
| Output Type | PNP |
| Electrical Connection | 4 Wire Cable 2 m |
| Light Source | LED |
| Response Time | 500 μs |
| Maximum DC Voltage | 30V |
| IP Rating | IP67, IP69K |
| Maximum Current | 25 mA |
| Minimum Operating Temperature | -25 °C (-13 °F) |
| Housing Material | ABS |
| Maximum Operating Temperature | +55 °C (131 °F) |
Photoelectric sensor, M18 axial, plastic body, red LED, diffuse, 300mm, PNP, L-ON/D-ON selectable, 2m cable
