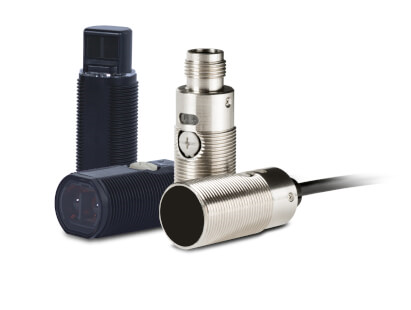

Omron E3FA-DP22, Diffuse Photoelectric Sensor, Cylindrical Sensor, 300 mm Detection Range

Name: Omron E3FA-DP22, Diffuse Photoelectric Sensor, Cylindrical Sensor, 300 mm Detection Range
Brand: OMRON
SKU: E3FA-DP22
Availability: OutOfStock

Part Number : E3FA-DP22

Photoelectric sensor, M18 axial, plastic body, red LED, diffuse, 300mm, PNP, L-ON/D-ON selectable, M12 connector

Availability: Sold out

Detailed Description
Specifications
Features

Omron E3FA Series Photoelectric Sensor, 300mm Detection Range, PNP Output Type - E3FA-DP22

This photoelectric sensor is a cylindrical device designed for efficient detection and automation tasks in industrial settings. With a detection range of up to 300mm, it operates using a red LED light source, providing reliable performance under various conditions. Built with an IP67/IP69K protection rating, it ensures operation in harsh environments while maintaining its integrity from dust and moisture.

Features & Benefits

• Diffuse detection method improves reliability in object sensing
• PNP output type ensures efficient signal transmission
• Quick response time of 0.5 ms enhances operational efficiency
• Suitable for high-temperature applications up to +55°C
• Robust ABS housing provides durability in demanding conditions
• Compatible with DC electric connections for versatile integration

Applications

• Ideal for presence detection in packaging machinery
• Used in conveyor systems for object counting
• Suitable for quality control in assembly lines
• Employed in automated warehouse systems for material handling
• Utilised in robotics for precise positioning and orientation checks

What is the significance of the IP67/IP69K rating for this device?

The IP67/IP69K rating indicates the sensor's robustness against dust and high-pressure water, ensuring reliable performance in both clean and industrial environments. This level of protection is crucial for maintaining functionality in harsh conditions, where contaminants may otherwise impair operation.

How does the switching mode improve efficiency in automatic systems?

The light/dark switching mode allows for enhanced adaptability in varied applications, enabling seamless integration into systems where the absence or presence of an object needs to be detected, thereby streamlining operational workflows.

What is the maximum distance for effective detection using this sensor?

The effective detection range of this sensor is up to 300mm, allowing it to perform reliably within this area, ensuring objects are accurately detected without misreads, which is vital for the efficiency of automated processes.

Brand	Omron
Sensor Style	Cylindrical
Detection Type	Diffuse
Detection Range	300 mm
Output Type	PNP
Switching Mode	Light / Dark switching
Electrical Connection	DC
Maximum DC Voltage	30V
Light Source	Red LED
IP Rating	IP67/IP69K
Response Time	0.5 ms
Maximum Operating Temperature	+55°C
Minimum Operating Temperature	-40°C
Housing Material	ABS
Series	E3FA
Thread Size	M18

Photoelectric sensor, M18 axial, plastic body, red LED, diffuse, 300mm, PNP, L-ON/D-ON selectable, M12 connector
