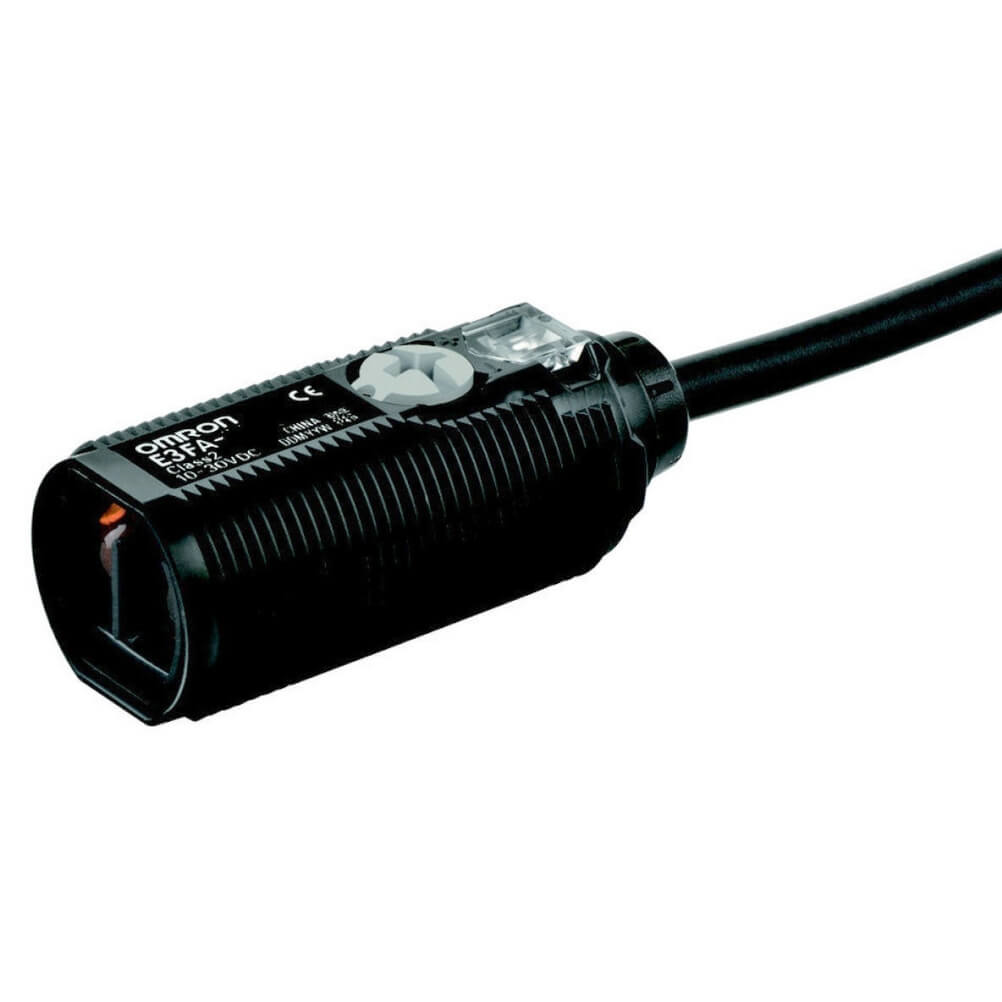

Omron E3FA-RP11 2M, Retroreflective Photoelectric Sensor, Barrel Sensor, 100 mm → 4 m Detection Range

Part Number : E3FA-RP11 2M

Photoelectric sensor, M18 axial, plastic body, red LED, retro-reflective, 0.1-4m, PNP, L-ON/D-ON selectable, 2m cable

Availability: Sold out

Detailed Description
Specifications
Features
Downloads

Omron E3F Photoelectric Sensor, Barrel Sensor, Retroreflective Detection Type - E3FARP112M

This is a high-quality photoelectric sensor designed for various industrial applications. This retro-reflective light sensor operates in either Light ON or Dark ON mode, providing accurate and reliable detection of objects.

Features & Benefits

• The sensor utilises retro-reflective technology with a Modulated Scatter Reflective (M.S.R.) function, ensuring reliable object detection
• When using the E39-R1S, the sensing distance ranges from 0.1 to 4 metres
• The sensor can be configured to operate in either Light ON or Dark ON mode based on your application requirements
• The sensor features a PNP open collector output with a maximum voltage of 30 VDC and a maximum current of 100 mA
• The operate or reset time is a swift 0.5 ms maximum
• It operates reliably in temperatures ranging from -25°C to 55°C (with no freezing or condensation)

Applications

• Detecting objects on conveyor belts
• Ensuring proper packaging alignment and presence
• Verifying component placement and assembly
• Detecting objects in warehouses and logistics centres

What is the sensing distance of the E3FARP112M sensor?

When using the E39-R1S, the sensing distance ranges from 0.1 to 4 metres.

Can I choose between Light ON and Dark ON operation?

Yes, the E3FARP112M sensor is Light-ON/Dark-ON selectable, allowing you to configure it based on your specific application needs.

Is the sensor suitable for harsh environments?

Yes, the rugged housing design ensures durability even in high-pressure and high-temperature washdown conditions (IP67, IP69K ingress protection).

E3F2 Series Barrel

Output can be configured by wiring either ’light ON’ or ’dark ON’
Built in amplifier
Short circuit and reverse polarity protection
M18 DIN size cylindrical housing

Brand	Omron
Sensor Style	Barrel
Detection Type	Retroreflective
Detection Range	100 mm → 4 m
Output Type	PNP
Switching Mode	Light / Dark switching
Electrical Connection	4 Wire Cable 2 m
Maximum DC Voltage	30V
Light Source	LED
IP Rating	IP67, IP69K
Maximum Current	25 mA
Response Time	500 μs
Minimum Operating Temperature	-25°C
Maximum Operating Temperature	+55°C
Housing Material	ABS
Series	E3F
Standards Met	CE
Thread Size	M18

Photoelectric sensor, M18 axial, plastic body, red LED, retro-reflective, 0.1-4m, PNP, L-ON/D-ON selectable, 2m cable

Omron E3FA-RP11 2M, Retroreflective Photoelectric Sensor, Barrel Sensor, 100 mm → 4 m Detection Range

DOWNLOAD CATALOG

E3FA-RP11 2M Brochure - E3FA Photoelectric Sensors A700000010811556
