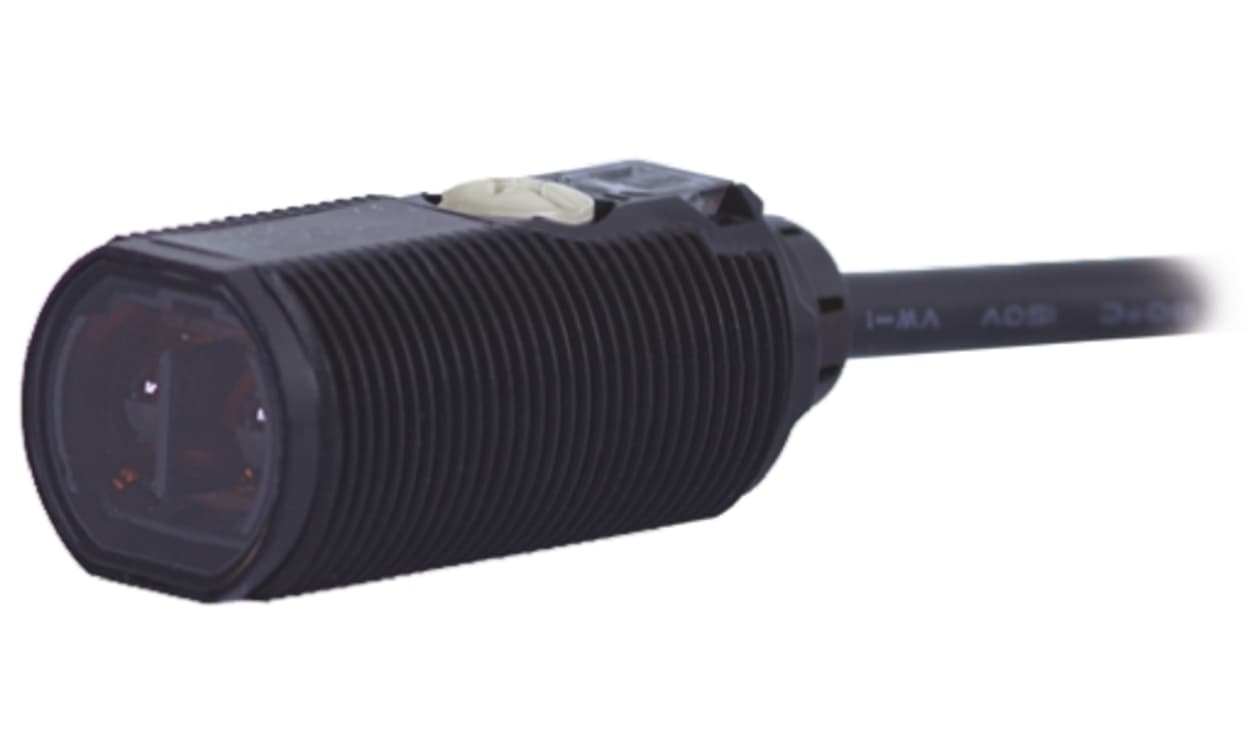

OMRON E3FA-VP11 2M | Diffuse Photoelectric Sensor | 10 mm to 50 mm, PNP, Pre-Wired Cable
Rated for a 10 mm to 50 mm detection range, OMRON's E3FA-VP11 2M is a barrel-style diffuse photoelectric sensor that provides PNP output. It connects via a pre-wired cable and it has an ABS housing. Series designation for the E3FA-VP11 2M is E3F.
- LED light source
- Rated up to 30 V DC
- Maximum current: 25 mA
- 500 μs response time
- IP67 and IP69K ingress protection
- Works from -25°C to +55°C
- Detailed Description
- Specifications
- Downloads
E3FA Compact Photoelectric Sensors
Compact design
Plastic housing
Visible LED light for easy alignment
LED indication
Light-ON/Dark-ON selectable by wiring
Reversed power supply polarity protection, output short circuit protection and reversed output polarity protection
Built in amplifier
Short circuit and reverse polarity protection
M18 DIN size cylindrical housing
| Brand | Omron |
| Series | E3F |
| Detection Type | Diffuse |
| Detection Range | 10 mm → 50 mm (0.394 to 1.97 in) |
| Sensor Style | Barrel |
| Output Type | PNP |
| Electrical Connection | Pre-Wired Cable |
| Light Source | LED |
| Response Time | 500 μs |
| Maximum DC Voltage | 30V |
| IP Rating | IP67, IP69K |
| Maximum Current | 25 mA |
| Minimum Operating Temperature | -25 °C (-13 °F) |
| Housing Material | ABS |
| Maximum Operating Temperature | +55 °C (131 °F) |
