Omron E3FB-RP21, Retroreflective Photoelectric Sensor, Barrel Sensor, 100 mm → 4 m Detection Range

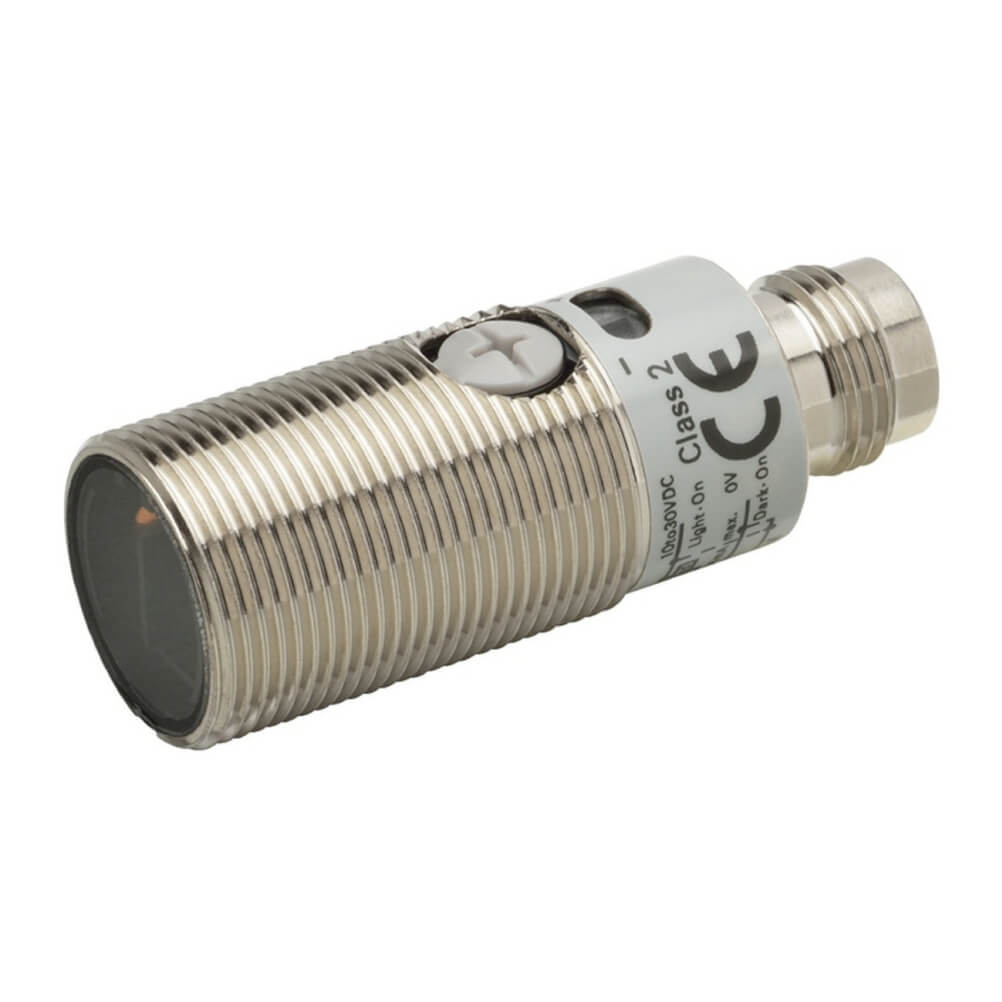

Name: Omron E3FB-RP21, Retroreflective Photoelectric Sensor, Barrel Sensor, 100 mm → 4 m Detection Range
Brand: OMRON
SKU: E3FB-RP21
Availability: OutOfStock

Part Number : E3FB-RP21

Photoelectric sensor, M18 axial, metal body, red LED, retro-reflective, 0.1 to 4 m, PNP, L-ON/D-ON selectable, M12 connector

Availability: Sold out

Detailed Description
Specifications
Features
Downloads

Omron E3F Series Photoelectric Sensor, 100mm to 4m Detection Range, PNP Output - E3FBRP21

This photoelectric sensor ensures precise detection across various applications within the automation and industrial sectors. Featuring advanced retroreflective technology, it delivers efficient performance, making it an integral component of electrical and mechanical systems. Its robust construction facilitates seamless integration into automated processes.

Features & Benefits

• Detection range of 100mm to 4m accommodates diverse applications
• PNP output ensures compatibility with many industrial systems
• Nickel-plated brass housing provides durability in demanding environments
• LED light source offers energy efficiency and longevity
• IP67 and IP69K ratings protect against moisture and dust
• Fast response time of 500μs enables quick detection and reaction

Applications

• Sensing in conveyor systems
• Object detection in robotics
• Quality control in packaging lines
• Monitoring in automation systems
• Material handling in assembly lines

What is the optimal operating temperature range for effective performance?

It operates efficiently between -25°C and +55°C, making it suitable for various environments.

How should I connect it to my system?

It features an M12 4-pin connector for easy integration with existing setups.

Can it be used in environments with high humidity?

Yes, the IP67 and IP69K ratings make it suitable for high humidity and wash-down locations.

What types of sensors are compatible with this device?

It works well with other industrial sensors, particularly those that use PNP output systems.

How do I ensure it is installed correctly?

Follow the manufacturer's guidelines for mounting and electrical connections, ensuring proper alignment for optimal detection.

E3F2 Series Barrel

Output can be configured by wiring either ’light ON’ or ’dark ON’
Built in amplifier
Short circuit and reverse polarity protection
M18 DIN size cylindrical housing

Brand	Omron
Sensor Style	Barrel
Detection Type	Retroreflective
Detection Range	100 mm → 4 m
Output Type	PNP
Electrical Connection	M12 4 Pin Connector
Maximum DC Voltage	30V
Terminal Type	Wire
Light Source	LED
IP Rating	IP67, IP69K
Maximum Current	25 mA
Response Time	500 μs
Minimum Operating Temperature	-25°C
Series	E3F
Maximum Operating Temperature	+55°C
Housing Material	Nickel Plated Brass
Mounting Type	Flange Mount
Thread Size	M12
Standards Met	CE

Photoelectric sensor, M18 axial, metal body, red LED, retro-reflective, 0.1 to 4 m, PNP, L-ON/D-ON selectable, M12 connector

Omron E3FB-RP21, Retroreflective Photoelectric Sensor, Barrel Sensor, 100 mm → 4 m Detection Range

DOWNLOAD CATALOG

E3FB-RP21 Catalogue - E3FA Photoelectric Sensors A700000012100543
