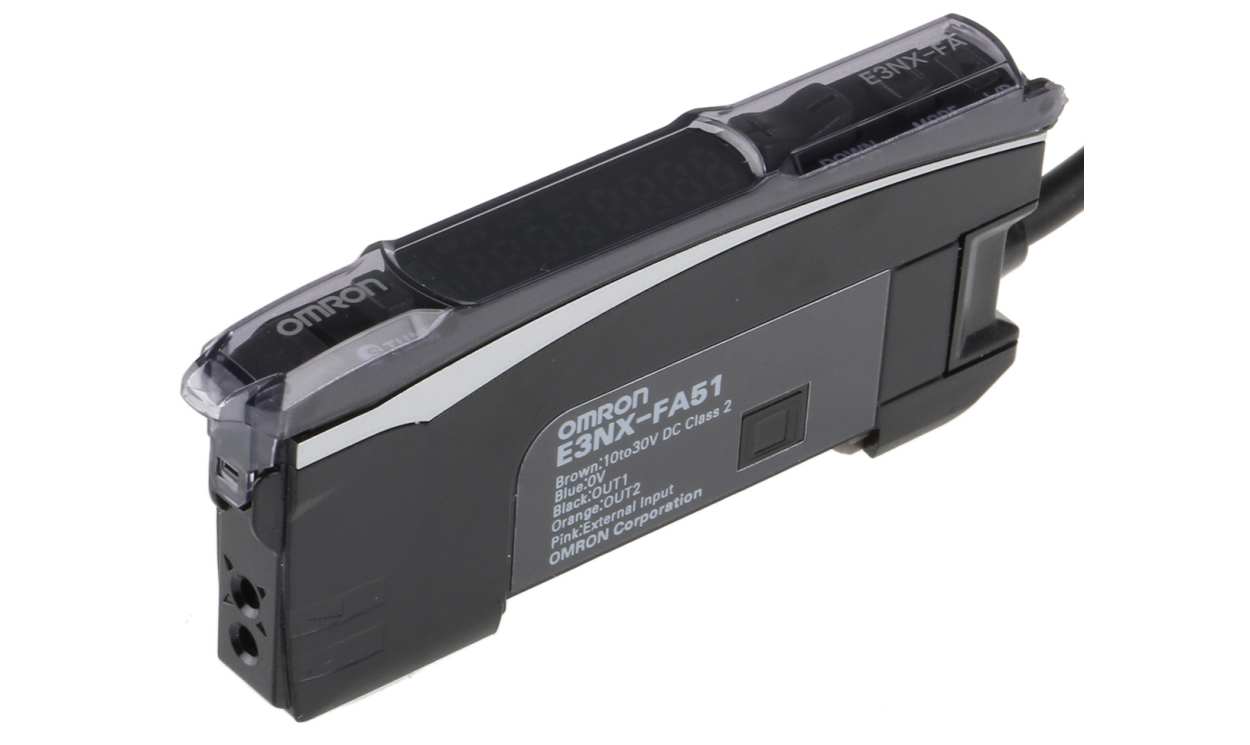

OMRON E3NX-FA51 2M | Fibre Optic Sensor | PNP, 10 to 30 V DC, 104.8 x 27.8 mm
This OMRON E3NX-FA51 2M fibre optic sensor has a PNP output, a red LED and a pre-wired cable. Its PC housing is 104.8 x 27.8 x 10 mm and it uses 1.08 W.
- PNP output
- Super high speed response 32 µs, GIGA power mode 16 ms
- 10 to 30 V DC supply
- Operating temperature -25 to +55 °C
- Pre-wired cable
- Detailed Description
- Specifications
- Downloads
Omron Fibre Optic Sensor, PNP Output, 10 to 30V DC Supply Voltage - E3NX-FA51 2M
Features & Benefits
• Dual digital display for immediate readouts
• Streamlined setup with intuitive push button teaching
• Selectable power modes and response times
• Sturdy construction with a maximum operating temperature of +55°C
• Pre-wired for easy installation in rail-mounted systems
Applications
• Suitable for electronic manufacturing for quality assurance
• Applicable in robotic systems for alignment tasks
• Employed in conveyor systems to monitor product flow
How to install it in a rail-mounted system?
What should be done if the sensor does not detect an object?
Can it be used outside?
Is it compatible with all automation systems?
| Brand | Omron |
| Terminal Type | Pre-Wired |
| Response Time | 1 (Standard Mode) ms, 16 (Giga Power Mode) ms, 250 (High Speed Mode) μs, 32 (Super High Speed Mode) μs |
| Supply Voltage | 10 → 30 V dc |
| Output Type | PNP |
| Light Source | Red LED |
| Housing Material | PC |
| Length | 104.8 mm (4.13 in) |
| Maximum Operating Temperature | +55 °C (131 °F) |
| Minimum Operating Temperature | -25 °C (-13 °F) |
| Dimensions | 104.8 x 27.8 x 10 mm (4.13×1.09×0.394 in) |
| Electrical Connection | Pre-Wired Cable |
| Power Consumption | 1.08 W |
| Width | 27.8 mm (1.09 in) |
| Depth | 10 mm (0.394 in) |
