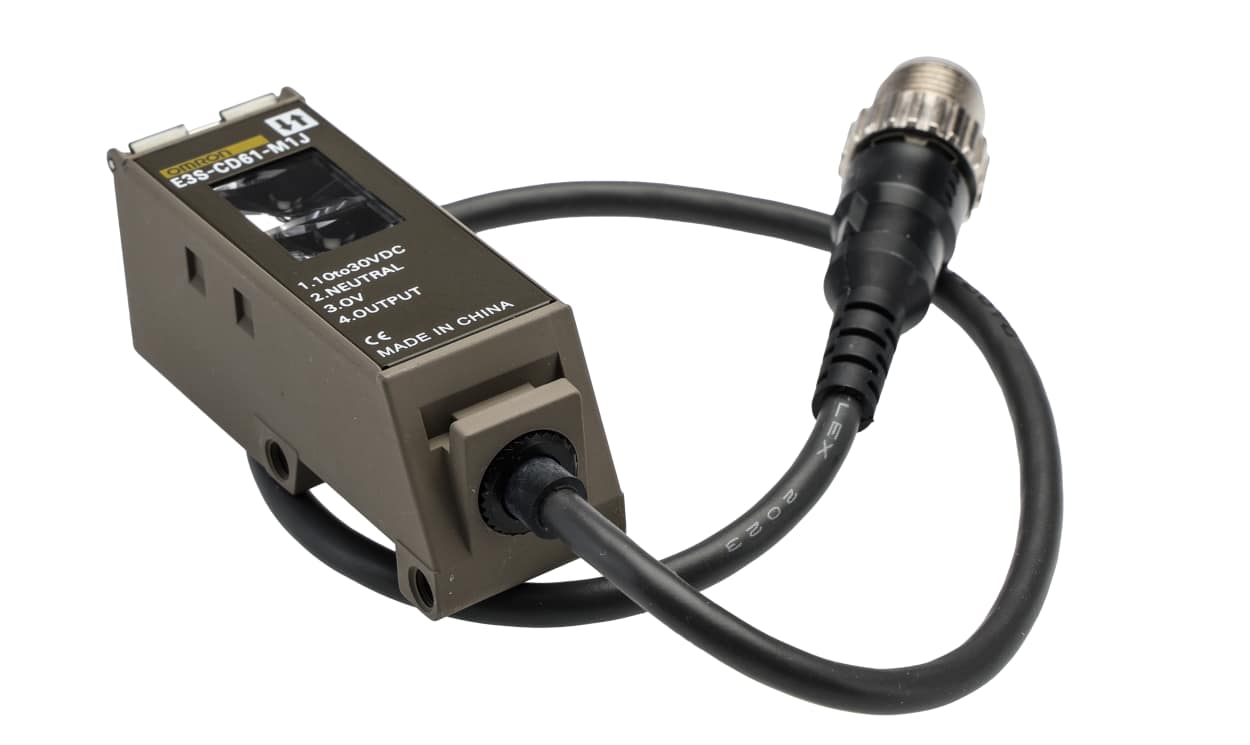

OMRON E3S-CD61-M1J 0.3M | Diffuse Photoelectric Sensor | 700 mm, NPN/PNP, Pre-Wired Cable
A block-style diffuse photoelectric sensor from OMRON, the E3S-CD61-M1J 0.3M offers a 700 mm detection range. Output is NPN/PNP, with a pre-wired cable (M12 connector terminal). Operating temperature spans -25°C to +55°C; the housing is die-cast zinc and protection is IP67. The sensor uses an infrared light source and responds in 1 ms.
- Light/dark switching mode
- Maximum DC voltage: 30V
- Maximum current: 40 mA
- Standards: CE
- Series: OMRON E3S
- Detection range: 700 mm
- Detailed Description
- Specifications
- Downloads
Omron Series E3S Photoelectric Sensor, 700mm Detection Range, Infrared Light Source - E3S-CD61-M1J 0.3M
Features & Benefits
• High shock resistance facilitates reliable operation in dynamic environments
• Infrared light source optimises performance in low visibility settings
• Pre-wired cable connection enables easy installation and maintenance
Applications
• Suitable for use in food processing environments resistant to hydrogen peroxide
• Effective in packaging machines where oil vapours are present
• Ideal for detecting engine blocks in automotive manufacturing
What environmental conditions can this sensor operate in?
How can mutual interference be minimised while using multiple units?
What is the significance of the response time?
What type of connections are supported?
| Brand | Omron |
| Series | E3S |
| Detection Type | Diffuse |
| Detection Range | 700 mm (27.6 in) |
| Sensor Style | Block |
| Output Type | NPN/PNP |
| Electrical Connection | Pre-Wired Cable |
| Switching Mode | Light / Dark switching |
| Light Source | Infrared |
| Response Time | 1 ms |
| Maximum DC Voltage | 30V |
| IP Rating | IP67 |
| Maximum Current | 40 mA |
| Minimum Operating Temperature | -25 °C (-13 °F) |
| Housing Material | Die Cast Zinc |
| Maximum Operating Temperature | +55 °C (131 °F) |
| Terminal Type | M12 Connector |
| Standards Met | CE |
