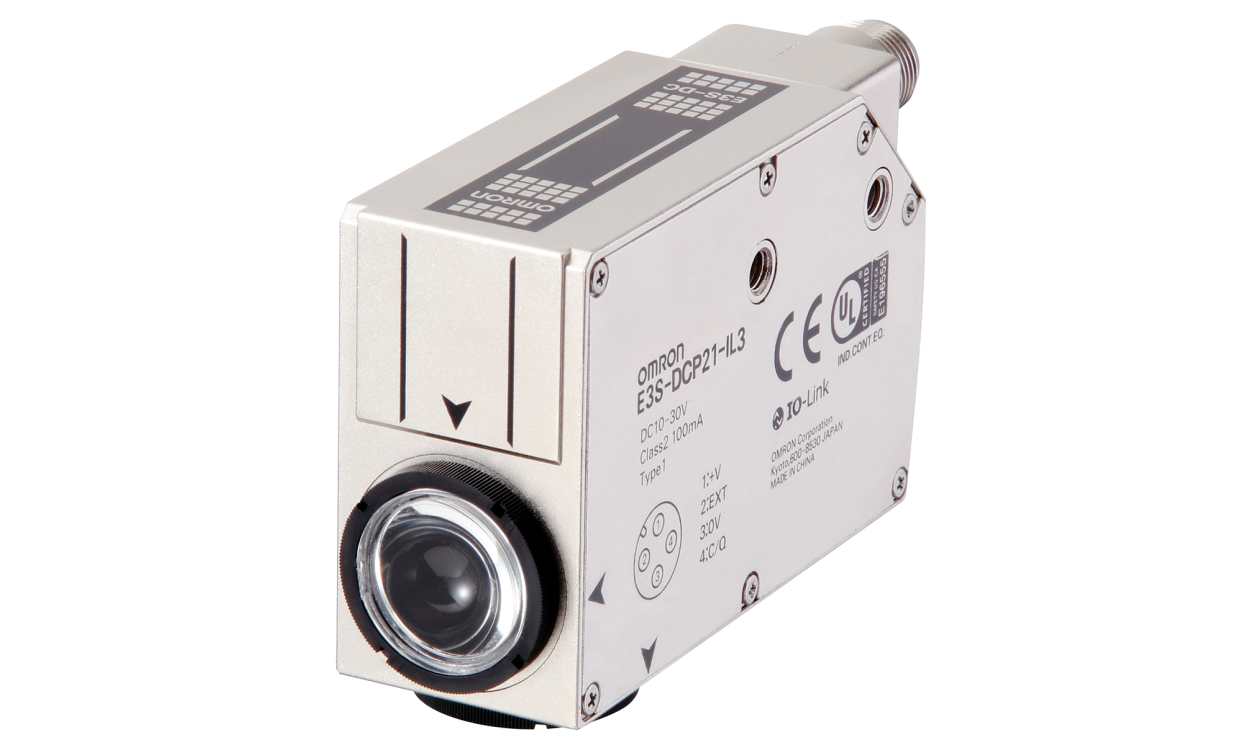

OMRON E3S-DCP21-IL3 | Diffuse Registration Mark Sensor | 10 mm, Push-Pull, M12 4-Pin Connector, IO-Link
With a 10 mm detection range, the OMRON E3S-DCP21-IL3 is a block-style diffuse registration mark sensor, supplied with Push-Pull output and an M12 4-pin connector. It is rated IP67, with a die-cast zinc housing and an operating temperature range of -10°C to +55°C. Response time is 50 μs/150 μs, using an LED light source.
- Registration mark detection at 10 ±3 mm
- IO-Link V1.1, COM3 (230.4 kbps)
- Maximum DC voltage: 30V
- Maximum current: 100 mA
- Mounting type: threaded
- Standards: CE, IEC 60529, UL Certified
- Detailed Description
- Specifications
- Features
- Downloads
E3S-DC Colour Detection Photoelectric Sensors
Detects subtle colour differences
Narrow beam and large lens
| Brand | Omron |
| Series | E3S |
| Detection Type | Diffuse |
| Detection Range | 10 mm (0.394 in) |
| Sensor Style | Block |
| Output Type | PUSH/PULL |
| Electrical Connection | M12 4 Pin Connector |
| Light Source | LED |
| Response Time | 50 μs, 150 μs |
| Maximum DC Voltage | 30V |
| IP Rating | IP67 |
| Maximum Current | 100 mA |
| Minimum Operating Temperature | -10 °C (14 °F) |
| Housing Material | Die Cast Zinc |
| Maximum Operating Temperature | +55 °C (131 °F) |
| Communication Protocol | IO-LINK |
| Terminal Type | 4 Pin Connector |
| Standards Met | CE, IEC 60529, UL Certified |
| Interface | IO-Link |
| Mounting Type | Threaded |
Registration mark sensor, diffuse, rectangular shape, IP67 , 10 +/- 3mm, 50µs response time, Push-Pull, IO-Link V1.1 communication COM3 (230.4kbps), M12 connector
