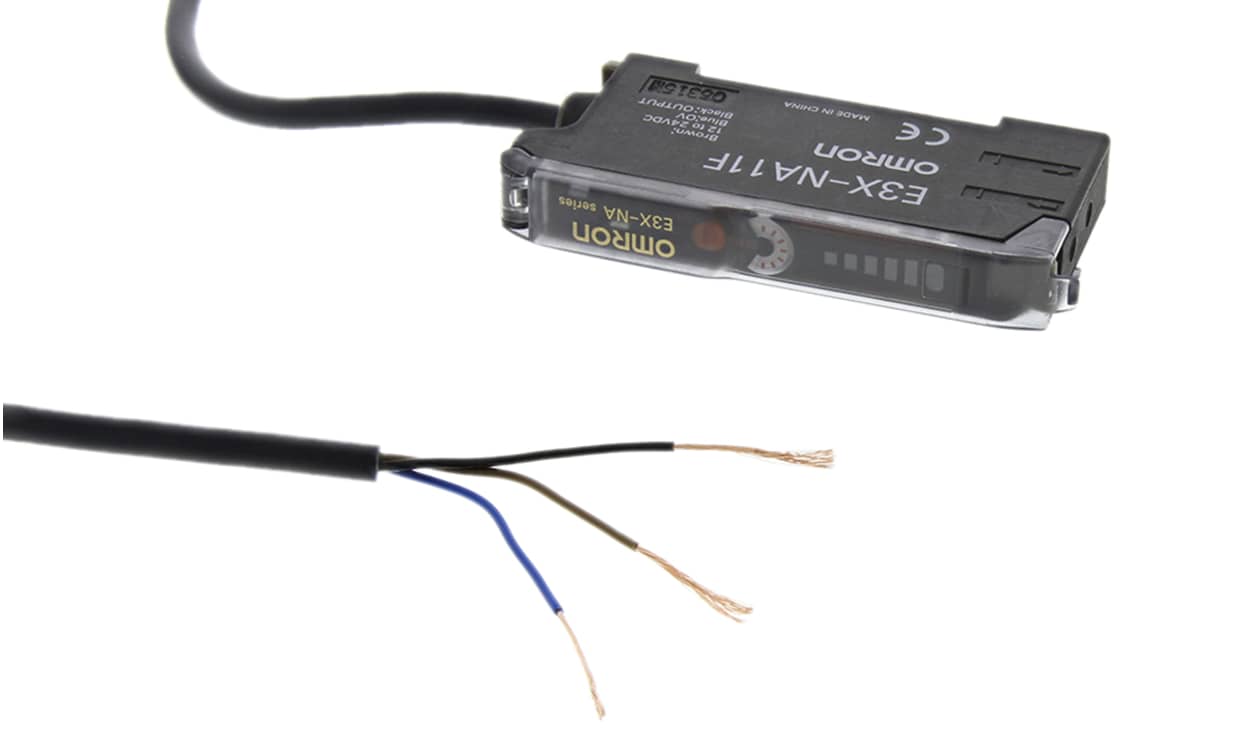

OMRON E3X-NA11F 2M | Fibre Optic Sensor | NPN, 200 µs, IP50
The OMRON E3X-NA11F 2M fibre optic sensor has an NPN output on a pre-wired cable and a red LED light source. Response time is 200 µs, and the PBT body measures 67.3 x 10 x 31.5 mm.
- NPN output
- 200 µs response time
- 12 to 24 V DC supply
- IP50, PBT housing
- Operating temperature -25 to +50 °C
- Part number: E3X-NA11F 2M
- Detailed Description
- Specifications
E3X-NA High Performance
For use with Omron E32 Fibre Optic Cable
High speed version, ideal for labelling and production line applications
Pre-wired versions for single application. Connector versions for multiple amplifier applications to provide wire and connection saving. Master (power and output) and Slave (output only) connectors, available separately see stock nos. 378-8618, 378-8624
See stock nos. 340-976 and 340-960 for suitable fibre optic sensing heads, and 378-8618 and 378-8624 for master and slave connectors
Supply voltage (Vdc): 10 to 24 ±10%
Switching Current (mA): 50
Sensing Distance is typically: 150mm (DC200) 400mm (TC200)
Simple to use potentiometer sensitivity adjustment
Off delay timer 40ms fixed
Light On/Dark On selectable
Short Circuit and reverse polarity protection
Mutual interference protection
LED bar graph user interface for visible indication of optimum setting and alignment
Timer function for pulse stretching for integration with the automation system
Light On/Dark On selectable
Operating temperature range -25° → +55°C (+50°C when banked together)
Dimensions (mm): 10 x 67.3 x 31.6 WDH
| Brand | Omron |
| IP Rating | IP50 |
| Terminal Type | Pre-Wired |
| Response Time | 200 μs |
| Supply Voltage | 12 → 24 V dc |
| Output Type | NPN |
| Light Source | Red LED |
| Housing Material | PBT |
| Length | 67.3 mm (2.65 in) |
| Maximum Operating Temperature | +50 °C (122 °F) |
| Minimum Operating Temperature | -25 °C (-13 °F) |
| Dimensions | 67.3 x 10 x 31.5 mm (2.65×0.394×1.24 in) |
| Electrical Connection | Pre-Wired Cable |
| Width | 10 mm (0.394 in) |
| Depth | 31.5 mm (1.24 in) |
