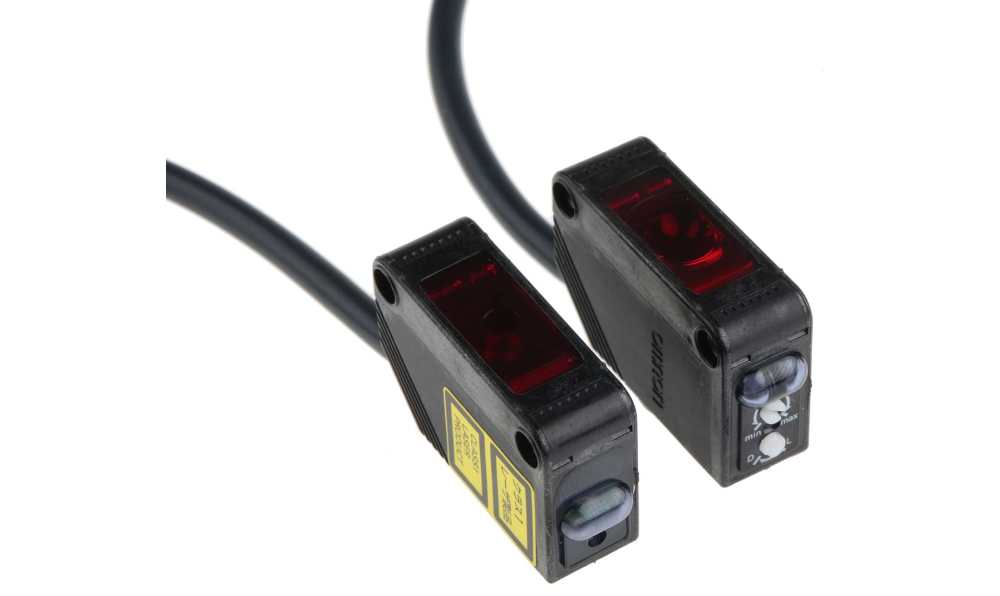

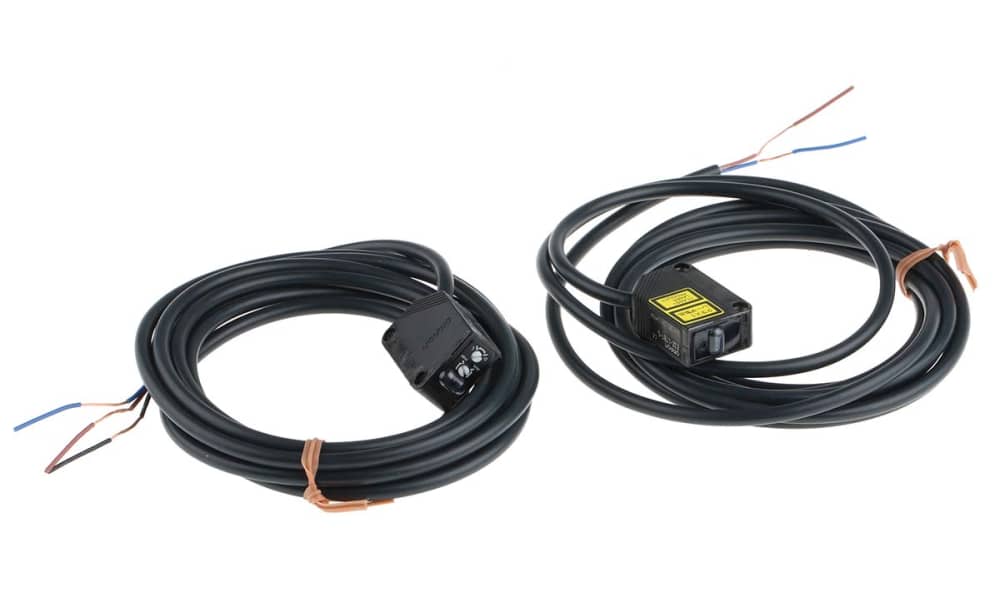

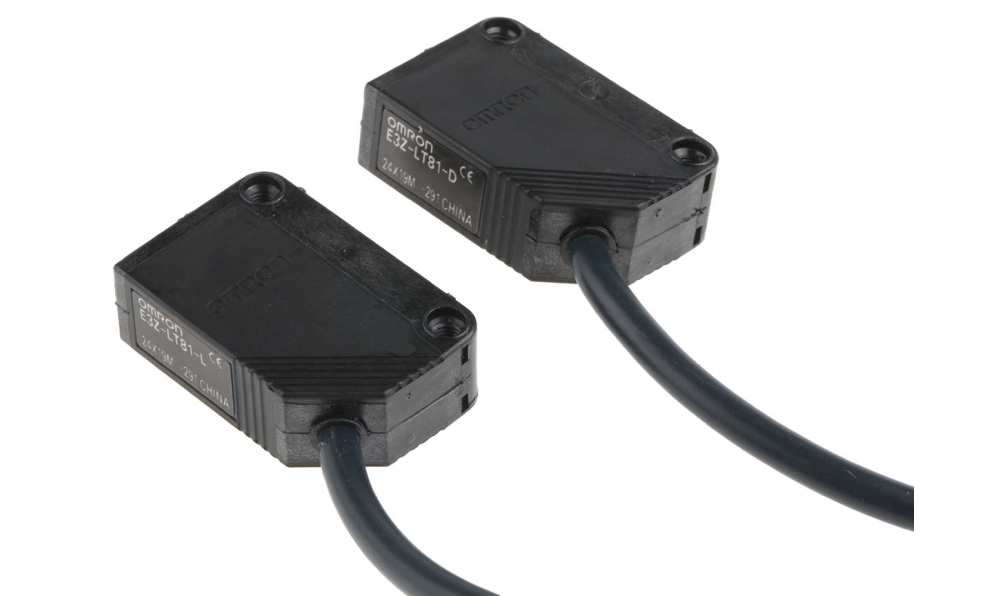

OMRON E3Z-LT81 2M | Through-Beam Photoelectric Sensor | 60 m, PNP, 2 m Cable
OMRON's E3Z-LT81 2M through-beam photoelectric sensor provides a PNP output over a detection range of 60 m from a block-style body. This model uses a 3-wire 2 m cable for connection, is fitted with an LED light source and is rated IP67.
- Maximum voltage 26.4 V DC
- Current rating up to 100 mA
- 1 ms response time
- Works from -10 °C to +55 °C
- Housing material: PBT
- Part of the OMRON E3Z series
- Detailed Description
- Specifications
- Downloads
Omron E3Z Series Photoelectric Sensor, 60m Detection Range, IP67 - E3Z-LT81 2M
Features & Benefits
• Robust light/dark switching for versatile operation
• LED light source for improved visibility
• Compact design for straightforward installation in restricted spaces
• PNP output for easy integration into existing systems
Applications
• Sensing small components on assembly lines
• Long-distance sensing at 300mm for packaging machinery
• Identifying protruding objects, such as straws, during quality control
How does the sensor maintain accuracy in varying conditions?
What wiring method should be used for installation?
Is this sensor compatible with other automation equipment?
How does it handle light interference from external sources?
| Brand | Omron |
| Series | E3Z |
| Detection Type | Through Beam |
| Detection Range | 60 m (196.9 ft) |
| Sensor Style | Block |
| Output Type | PNP |

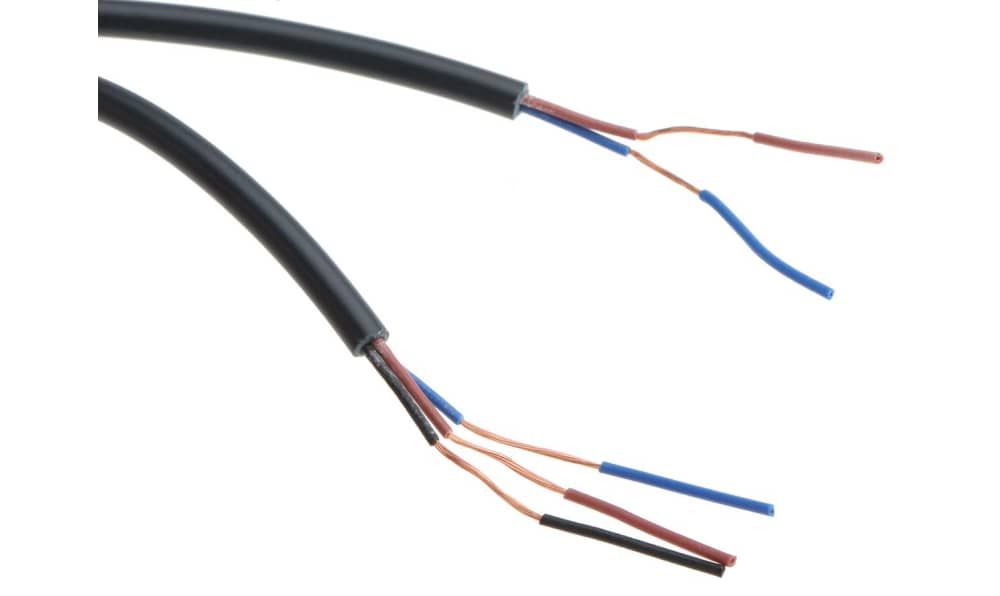

| Electrical Connection | 3 Wire Cable 2 m |
| Light Source | LED |
| Response Time | 1 ms |
| Maximum DC Voltage | 26.4V |
| IP Rating | IP67 |
| Maximum Current | 100 mA |
| Minimum Operating Temperature | -10 °C (14 °F) |
| Housing Material | PBT |
| Maximum Operating Temperature | +55 °C (131 °F) |
