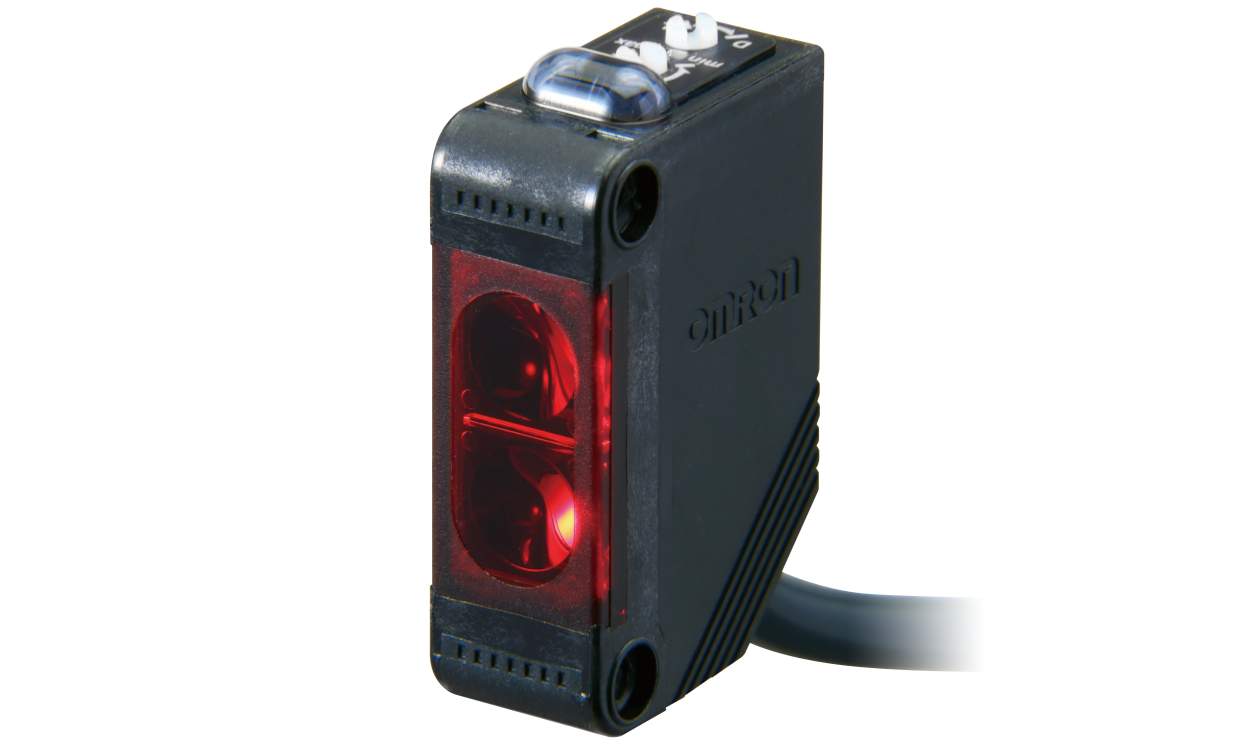

OMRON E3Z-R81-IL2 2M | Retroreflective Photoelectric Sensor | 100 to 4000 mm, PNP, Cable
OMRON's E3Z-R81-IL2 2M retroreflective photoelectric sensor provides a PNP output over a detection range of 100 to 4000 mm from a block-style body. It uses a cable connection, is fitted with a red LED light source and is rated IP67.
- Current rating up to 30 mA
- 1 ms response time
- Works from -25 °C to +55 °C
- Housing material: PBT
- Part of the OMRON E3Z series
- Detailed Description
- Specifications
- Downloads
Omron E3Z Series Photoelectric Sensor, PNP Output, Block Sensor - E3Z-R81-IL2 2M
Features & Benefits
• PNP output type enhances connectivity and compatibility
• Block style design for easy installation and maintenance
• Long detection range of 100 to 4000mm
• Cable connection for secure and reliable wiring
Applications
• Suitable for enhancing efficiency during manufacturing processes
• Can be used for reducing downtime and minimising sudden failures
• Offers improved changeover efficiency in batch checks
• Versatile sensing methods and connection options available
Can it reduce downtime and notify about faulty parts?
Will it help in enhancing the efficiency of changeover processes?
Is the connection method suitable for cable installation?
Can it detect objects within a range of 100 to 4000mm?
Does it provide compatibility with different sensing methods?
| Brand | Omron |
| Series | E3Z |
| Detection Type | Retroreflective |
| Detection Range | 100 → 4000 mm (3.94 to 157.5 in) |
| Sensor Style | Block |
| Output Type | PNP |
| Electrical Connection | Cable |
| Light Source | Red LED |
| Response Time | 1 ms |
| IP Rating | IP67 |
| Maximum Current | 30 mA |
| Minimum Operating Temperature | -25 °C (-13 °F) |
| Housing Material | PBT |
| Maximum Operating Temperature | +55 °C (131 °F) |
