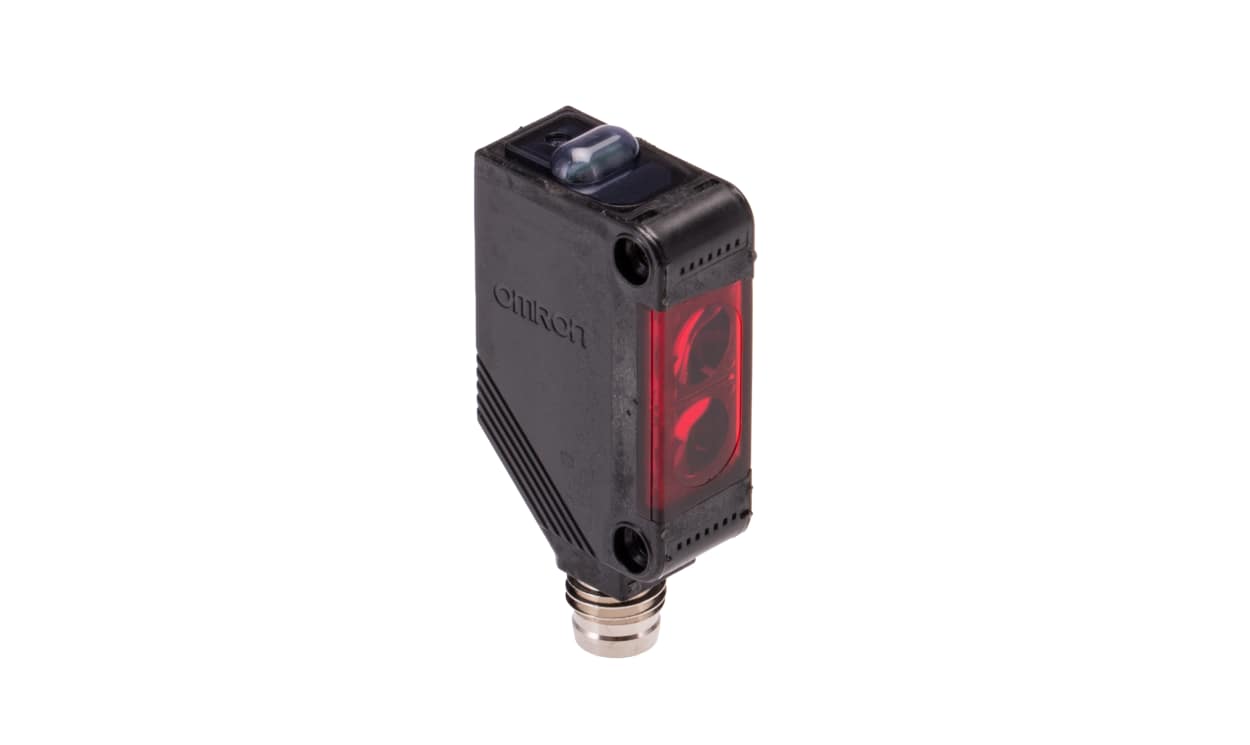

OMRON E3Z-R86H | Retroreflective Photoelectric Sensor | 4 m, PNP, M8 4-Pin
Offering a PNP output, the OMRON E3Z-R86H is a retroreflective photoelectric sensor rated for a 4 m detection range. This model terminates in an M8 4-pin connector, uses a red LED light source and carries an IP67 and IP69K rating.
- Up to 24 V DC supply
- 30 mA maximum current
- Responds in 1 ms
- Temperature range -25 °C to +55 °C
- Body in PBT
- Series: E3Z
- Detailed Description
- Specifications
- Downloads
Omron E3Z Series Photoelectric Sensor, 4m Detection Range, IP67/IP69K - E3Z-R86H
Features & Benefits
• Maximum operating temperature of +55°C ensures functionality in tough conditions
• Compact PBT housing increases mechanical resilience and longevity
Applications
• Precise tracking in packaging machinery
• Smooth operational flow in conveyor systems
How should the sensor be installed for optimal performance?
What electrical connections are compatible with this sensor?
What should be done if the sensor shows erratic behaviour?
| Brand | Omron |
| Series | E3Z |
| Detection Type | Retroreflective |
| Detection Range | 4 m (13.1 ft) |
| Output Type | PNP |
| Electrical Connection | M8 4 Pin Connector |
| Light Source | Red LED |
| Response Time | 1 ms |
| Maximum DC Voltage | 24V |
| IP Rating | IP67, IP69K |
| Maximum Current | 30 mA |
| Minimum Operating Temperature | -25 °C (-13 °F) |
| Housing Material | PBT |
| Maximum Operating Temperature | +55 °C (131 °F) |
